TRICONEX 9662-610 – 24 VDC Digital Output Termination Panel
Product Introduction
The TRICONEX 9662-610 is a 24 VDC digital-output termination panel used in Tricon safety-system cabinets to provide the field termination interface for compatible digital-output modules. Unlike a Tricon I/O module such as the 3624 or 3625, the 9662-610 does not perform the actual output logic processing. It provides the physical termination and commoned power connections between the digital-output circuitry and the field wiring. Tricon documentation specifies 16 load terminals with commoned PWR+ and PWR- terminals, making the panel particularly relevant where multiple 24 VDC digital outputs share a common supply arrangement.
The TRICONEX 9662-610 is associated with Tricon v9–v10 digital-output architectures and can be used with several specified output modules. The documented compatible modules include 3624, 3625, 3664, and 3674. For a 32-point digital-output module, two 9662-610 panels are required because each termination panel provides 16 load terminals. This is a critical detail when replacing or rebuilding a Tricon cabinet: the number of termination panels must be determined from the actual I/O module point count and wiring architecture rather than from the number of controller slots alone.
The TRICONEX 9662-610 should therefore be purchased and documented as a termination panel, not as a 16-channel digital-output module. Several commercial listings incorrectly describe it as a digital I/O module, which can create procurement and engineering confusion. The Tricon field-termination documentation is considerably more specific and should take precedence when establishing the function of the part.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 9662-610 |
| Manufacturer | Triconex / Invensys |
| Product Type | Digital Output Termination Panel |
| System | Tricon SIS |
| System Documentation | Tricon v9–v10 |
| Output Application | 24 VDC digital output |
| Panel Type | Commoned |
| Load Terminals | 16 |
| Power Terminals | Commoned PWR+ / PWR- |
| Maximum Total Current | 16 A |
| Maximum Current with 3625 | 10 A per termination panel |
| Compatible Module 1 | 3624 |
| Compatible Module 2 | 3625 |
| Compatible Module 3 | 3664 |
| Compatible Module 4 | 3674 |
| Module Function | Digital output termination |
| Signal Processing | Not performed by the termination panel |
| Mounting / Cabinet Position | Tricon cabinet termination arrangement |
| Communication Protocol | Not applicable |
| Operating Temperature | Not established from the primary documentation reviewed |
| Protection Rating | Not established from the primary documentation reviewed |
The 16-point and current specifications are taken directly from the Tricon Field Terminations Guide.

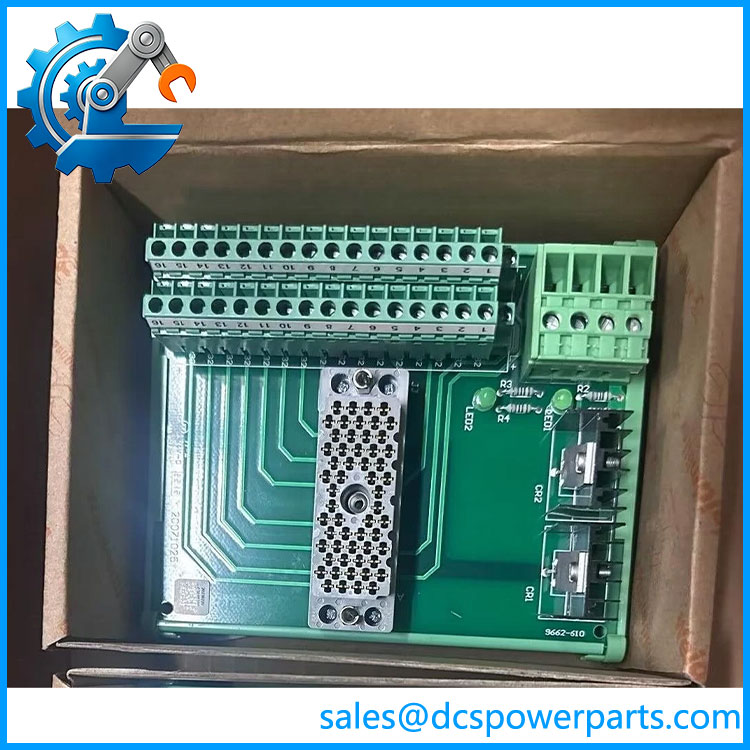

TRICONEX 9662-610
Main Features and Engineering Considerations
24 VDC Commoned Termination
The 9662-610 is specifically intended for 24 VDC digital-output circuits. Its commoned construction means the field-side power arrangement is shared through the designated PWR+ and PWR- terminals rather than providing a separately isolated supply connection for every output point.
This matters when checking an existing cabinet because changing from a commoned termination arrangement to an individually wired arrangement is not simply a component substitution. The field wiring, fusing, power distribution, and output-module configuration must remain consistent with the safety-system design.
Compatible Output Modules
The documented module compatibility is unusually important for this part. The 9662-610 is listed with 3624, 3625, 3664, and 3674 output modules. The 3624 is a 16-point 24 VDC TMR output module, while the 3625 is a 32-point 24 VDC output module. The 3664 and 3674 are 32-point dual output modules.
Do not assume that any Tricon 24 VDC digital-output card can be connected to the 9662-610 simply because the voltage is the same.
16-Point Limitation
The panel provides 16 load terminals. When used with a 32-point output module, Tricon documentation specifies the use of two termination panels for each digital-output module. Each panel can be associated with one 16-point portion of the 32-point output arrangement.
This is one of the easiest details to miss during cabinet restoration.
Current Loading
The normal maximum total current specified for the panel is 16 A. When the 9662-610 is used with the 3625 DO module, the documentation reduces the maximum total current to 10 A per termination panel to limit power dissipation of the module.
That 10 A restriction should be treated as an engineering limit, not as an optional operating recommendation.
Application Scenarios
- Tricon v9–v10 SIS cabinets
- 24 VDC digital-output field wiring
- Solenoid valve interfaces
- Relay and actuator outputs
- Tricon digital-output termination
- TMR digital-output installations
- Dual digital-output installations
- Legacy Tricon cabinet maintenance
- Replacement of damaged or degraded termination panels
Engineer’s Guide: Field Pitfalls
1. Do not call 9662-610 an I/O module.
It is a termination panel. The actual output electronics are located in the associated Tricon DO module.
2. Verify the DO module first.
Check whether the cabinet uses a 3624, 3625, 3664, or 3674 before replacing the termination panel. These are the modules specifically documented as compatible.
3. Check the number of output points.
A 16-point panel is sufficient for a 16-point configuration. A 32-point module requires two 9662-610 panels according to the Tricon field-termination documentation.
4. Respect the current limit.
The standard maximum is 16 A total, but the limit is 10 A per panel when used with the 3625.
5. Do not assume electrical isolation.
The panel is described as commoned, so its function should not be confused with an individually isolated output interface.
6. Check field wiring before energizing.
When a termination panel is replaced, inspect PWR+, PWR-, load-terminal wiring, jumpers, fuses where applicable, and the corresponding output-module connections. A wiring error can damage downstream field equipment even when the Tricon controller itself reports no immediate fault.
Frequently Asked Questions
What is TRICONEX 9662-610?
It is a 24 VDC commoned digital-output termination panel used with compatible Tricon digital-output modules.
Is 9662-610 a digital-output module?
No. It is a termination panel. The associated Tricon DO module performs the output control and diagnostics.
How many points does 9662-610 provide?
It provides 16 load terminals.
What voltage is the panel designed for?
The documented application is 24 VDC digital output.
What is the maximum current?
The documented maximum total current is 16 A. When used with a 3625 module, the limit is 10 A per termination panel.
Which Tricon modules are compatible?
The Field Terminations Guide lists 3624, 3625, 3664, and 3674.
Can one 9662-610 terminate a 32-point DO module?
No. The Tricon documentation specifies two 9662-610 panels for a 32-point module, with each panel handling 16 points.
Procurement Note
For TRICONEX 9662-610, specify the item as a 24 VDC commoned digital-output termination panel, not as a generic digital I/O module.
Before purchasing, verify:
- Exact part number: 9662-610
- Tricon system generation
- Associated DO module: 3624 / 3625 / 3664 / 3674
- 16-point versus 32-point configuration
- Number of termination panels required
- Commoned PWR+ / PWR- arrangement
- Total field-load current
- Cabinet wiring and terminal labeling
- Physical condition of terminals and connectors
- Any signs of overheating, corrosion, or damaged terminal hardware
For a legacy Tricon cabinet, I would prioritize the exact 9662-610 termination-panel configuration and the correct associated DO module over a generic replacement described simply as a “24 VDC digital output board.” The distinction between the termination panel and the actual I/O module is fundamental to avoiding a wrong-part procurement.
