Description
Product Overview
Triconex 3511 is a high-performance Pulse Input Module designed for the Tricon Safety Instrumented System (SIS) platform. It is manufactured by Triconex (now part of Schneider Electric) and is specifically engineered for high-integrity monitoring of rotating equipment where accurate speed measurement and fast pulse signal acquisition are required. As a member of the Tricon TMR (Triple Modular Redundant) I/O family, 3511 provides reliable acquisition of pulse signals from magnetic speed pickups, turbine sensors, compressor speed probes, and other frequency-based field devices.
Triconex 3511 functions as an intelligent pulse measurement interface between field sensors and the Tricon main processors. The module contains three independent input processing channels, allowing each channel to separately evaluate incoming pulse signals before transmitting data to the redundant Tricon processors for voting and fault-tolerant decision making. This TMR architecture enables 3511 to maintain safe operation even when individual channel faults occur, making it suitable for SIL-rated safety applications where continuous availability is essential.
The Triconex 3511 Pulse Input Module is optimized for measuring rotational speed rather than pulse accumulation applications. It is commonly deployed in turbine overspeed protection systems, compressor protection systems, emergency shutdown systems (ESD), and critical machinery monitoring applications. With eight independent non-commoned pulse inputs, high measurement accuracy, built-in diagnostics, and hot-spare support, 3511 provides a dependable solution for industrial safety and protection systems operating in demanding environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 3511 |
| Manufacturer | Triconex (Invensys / Schneider Electric) |
| Product Type | Triple Modular Redundant (TMR) Pulse Input Module |
| System Platform | Tricon Safety Instrumented System |
| Input Type | Pulse / Frequency Input |
| Number of Input Channels | 8 independent non-commoned inputs |
| Input Frequency Range | 20 Hz to 20 kHz |
| Signal Type | Magnetic pickup, pulse, sine wave, square wave |
| Resolution | 16-bit |
| Measurement Accuracy | ±0.01% (1000 Hz to 20000 Hz) |
| Update Rate | Approximately 25 ms |
| Input Characteristics | AC coupled, balanced differential |
| Input Impedance | >8 kΩ (20 kΩ typical) |
| Normal Input Range | 1.5 V to 200 V peak-to-peak |
| Overvoltage Protection | ±150 VDC continuous |
| Diagnostic Functions | Channel diagnostics, PASS/FAULT/ACTIVE indicators |
| Redundancy Architecture | Triple Modular Redundancy (TMR) |
| Hot Spare Support | Supported |
| Color Code | Light Purple |

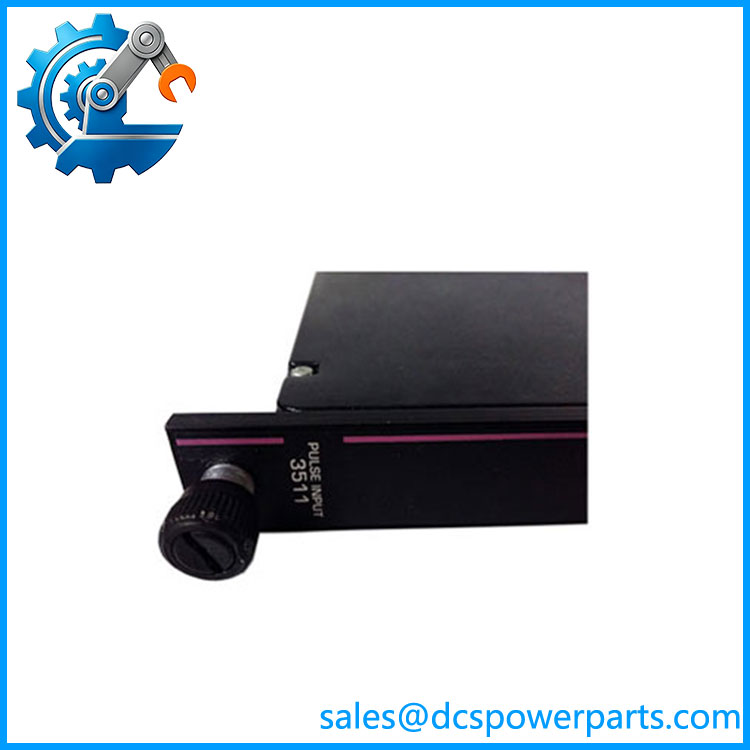

3511
Main Features and Advantages
Triconex 3511 provides a specialized pulse measurement solution for safety-critical rotating equipment applications. Unlike standard PLC frequency input modules, 3511 is designed specifically for SIS environments where measurement accuracy, fault tolerance, and continuous availability are critical. Its TMR architecture allows three independent processing paths to evaluate input signals, significantly reducing the risk of a single hardware fault affecting the safety function.
High-precision speed measurement is one of the primary advantages of 3511. The module supports pulse frequencies from 20 Hz to 20 kHz and provides measurement accuracy of ±0.01% in the 1000 Hz to 20000 Hz range. This capability makes 3511 particularly suitable for applications requiring accurate turbine and compressor speed monitoring, including overspeed detection and protective shutdown functions.
The eight-channel design of Triconex 3511 provides excellent system flexibility. Each input channel is electrically independent and non-commoned, allowing multiple speed sensors or pulse-generating devices to be connected within a single Tricon chassis. This reduces hardware requirements while maintaining channel isolation and system reliability.
Another important advantage of 3511 is its advanced diagnostic capability. Each input channel continuously performs self-monitoring functions, and any detected channel abnormality is reported through module status indicators and Tricon system diagnostics. These diagnostics help maintenance engineers quickly identify faults and reduce troubleshooting time.
Triconex 3511 supports hot-spare operation, allowing replacement modules to be installed and configured without major interruption to system operation. This feature is particularly valuable in continuous process industries such as oil refining, petrochemical production, and power generation, where unexpected downtime can result in significant production losses.
The module is optimized for direct connection to magnetic speed sensors commonly used on turbines and compressors. It can process low-level pulse signals generated by rotating equipment sensors while maintaining high measurement reliability in electrically noisy industrial environments.
With its combination of TMR fault tolerance, accurate frequency measurement, comprehensive diagnostics, and compatibility with Tricon safety systems, Triconex 3511 provides a reliable foundation for critical machinery protection applications.
Applications
Triconex 3511 is widely used in safety instrumentation systems where accurate monitoring of rotating equipment speed is required. The module is particularly important in applications involving turbines, compressors, pumps, and other high-speed machinery where abnormal speed conditions can lead to catastrophic equipment damage.
In power generation plants, Triconex 3511 is commonly installed in turbine protection systems for monitoring turbine shaft speed and providing overspeed protection signals. The module receives pulse signals from magnetic pickups or speed sensors and transfers validated measurement data to the Tricon safety controller for protective decision-making.
In oil and gas facilities, 3511 is used in compressor protection systems, gas turbine packages, and rotating machinery emergency shutdown applications. Reliable speed monitoring helps protect expensive equipment from mechanical failures caused by excessive speed or abnormal operating conditions.
Petrochemical and chemical processing plants use Triconex 3511 as part of SIS architectures for critical machinery protection. The module supports integration of speed sensors into emergency shutdown logic and safety interlock systems.
Industrial plants with large rotating equipment also utilize 3511 for machinery monitoring applications where high availability and fault tolerance are required. Its compatibility with Tricon TMR systems makes it suitable for facilities that require SIL-rated protection and continuous operation.
Typical application areas include:
- Steam turbine overspeed protection
- Gas turbine safety systems
- Compressor protection systems
- Emergency shutdown systems (ESD)
- Rotating machinery monitoring
- Oil and gas production facilities
- Petrochemical plants
- Power generation systems
- Safety Instrumented Systems (SIS)
Related Products
Triconex 3515 — Pulse Input Module designed for pulse totalization applications, unlike 3511 which is optimized for speed measurement.
Triconex 3501E — Enhanced analog input module used for general safety monitoring applications.
Triconex 3503E — High-density analog input module for Tricon SIS systems.
Triconex 3504E — Digital input module used for safety shutdown and discrete signal acquisition.
Triconex 3625 — Digital output module for safety control applications.
Triconex 3636R — Relay output module for non-critical relay-based control points.
Triconex 3008 — Main processor module used in Tricon controller systems.
Triconex 4119A — Enhanced communication module for Tricon systems.
Triconex 4351B — Communication interface module for integration with external control systems.
