Description

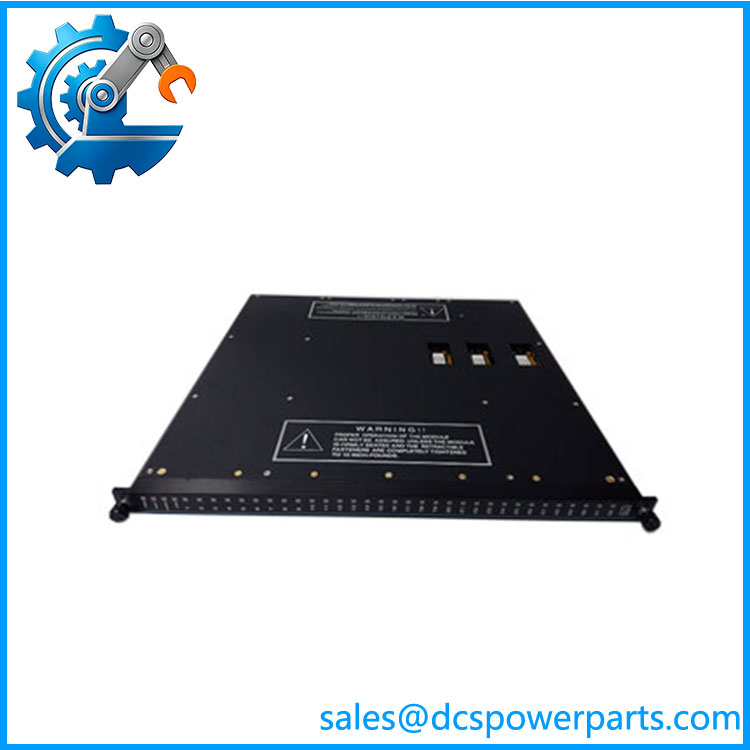

TRICON 3664 Triconex Digital Output Module
1. Product Features
- Triple Modular Redundant (TMR) Architecture
Adopts three independent signal processing circuits with 2-out-of-3 voting logic. Eliminates single point of failure, ensuring reliable safety output and avoiding spurious trips or output loss under single internal fault.
- High-density Digital Output Channels
Equipped with 32 digital output channels, supporting field device driving for safety interlock circuits, suitable for large-scale safety instrumented system configuration.
- Comprehensive Continuous Diagnostics
Built-in channel open-circuit, short-circuit and load monitoring. Real-time self-test detects module hardware abnormalities. Front panel LED indicators display PASS, FAULT and channel operating status intuitively.
- Hot-swappable Support
Allows online module replacement without shutting down the Tricon chassis. Maintenance can be performed during continuous production to reduce plant downtime.
3664
- SIL Safety Certified
Compliant with IEC 61508 standard, certified for SIL 3 safety applications, perfectly matching SIS, ESD and F&G safety control loops.
- Strong Load Driving Capacity & Circuit Protection
Each channel integrates overcurrent, overvoltage and surge protection, effectively resisting transient interference from field inductive loads such as solenoid valves and relays.
- Excellent Electromagnetic Compatibility
Channel isolation design, strong anti-EMI capability, stable operation under harsh industrial electromagnetic environment.

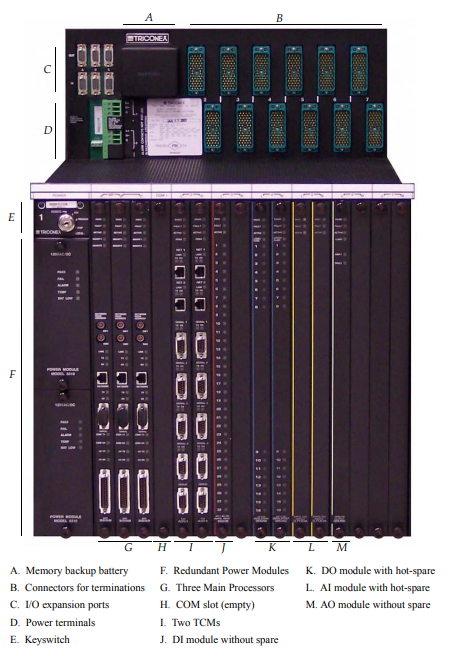

- Native Tricon System Compatibility
Fully compatible with Tricon main controllers, configured via TriStation 1131 software, supporting flexible output logic setting, fault alarm and event recording.
2. Product Parameters
| Item | Specification |
|---|---|
| Brand | Triconex (Schneider Electric) |
| Model | TRICON 3664 |
| Product Type | TMR Digital Output Module |
| Nominal Voltage | 24 VDC |
| Type | Dual serial (recommended for de-energize-to-trip control programs |
| Output | Signals 32, commoned |
| Supply Voltage Range | 24 VDC Nominal |
| Channel Protection | Overcurrent, overvoltage, short-circuit protection per channel |
| Diagnostic Functions | Open load detection, short-circuit detection, internal module self-test |
| Safety Certification | IEC 61508 SIL 3, CE, UL Class I Division 2 |
| Operating Temperature | 0°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Ambient Humidity | 5% ~ 95%, non-condensing |
| Vibration Resistance | 1 g (5–100 Hz) |
| Shock Resistance | 15 g, 11 ms half-sine wave |
| Installation Method | Plug-in slot on Tricon backplane |
| Module Width | Double-width module |
| Configuration Software | TriStation 1131 |
| Hot Swap | Supported |
| Compatibility | Tricon TMR controller platform |
| Origin | United States |
| Warranty | 12 months |
3. Product Operation Instructions
- Static Protection & Installation
Wear anti-static wristband before handling the module. Insert TRICON 3664 into an available slot of the Tricon main chassis or expansion chassis, and lock the captive screws on the front panel. The backplane anti-reversal key prevents incorrect installation.
- Field Wiring Work
Connect field actuators to the matched terminal assembly. Distinguish power polarity strictly according to the wiring diagram. Use shielded cables for long-distance wiring and ground the shield at one end. Confirm no short circuit on field loops before powering on.
- Software Configuration
Open TriStation 1131 software, define channel logic functions, enable diagnostic modes such as open-load detection, set safety interlock logic and fault alarm rules, then download configuration to the Tricon controller.
- Commissioning and Verification
Power up the chassis. The module automatically executes self-diagnostics. The green PASS LED lights up when status is normal. Manually trigger control logic one by one to verify each channel’s on/off action and confirm diagnostic functions work normally.
- Daily Monitoring
Monitor module running status and channel fault information via front panel LEDs or TriStation diagnosis interface. Regularly export fault logs to check potential wiring aging and actuator failure risks.
- Online Maintenance Replacement
This module supports hot swap. Confirm the system runs in safe state before replacement. Pull out the faulty module and insert the new module; the system will automatically complete synchronization without chassis shutdown.
- Troubleshooting Guide
Red FAULT LED indicates channel abnormality or internal hardware fault. Use TriStation diagnostic tools to judge whether the fault comes from field wiring, actuator or module hardware.
4. Application Fields
- Oil & Gas Industry
Emergency Shutdown System (ESD), fire & gas detection linkage control, safety valve and compressor interlock protection on offshore platforms and onshore stations.
- Petrochemical & Chemical Plants
Reactor safety interlock, distillation unit protection, tank farm emergency cut-off control, burner management safety loops.
- Power Generation Industry
Steam turbine and gas turbine safety protection, boiler interlock control, auxiliary equipment emergency shutdown, combined cycle power plant SIS system.
- Metallurgy & Mining Industry
Furnace safety interlock, conveyor emergency stop control, ventilation system protection and slurry equipment safety cut-off logic.
- Water & Wastewater Treatment
Pump emergency shutdown control, chemical dosing system interlock, barrier gate safety control.
- LNG and Energy Storage Industry
Cryogenic equipment safety interlock, pressure relief valve control, hazardous area safety instrument control.
- General Process Safety Control
All industrial projects requiring SIL3 high-reliability fault-tolerant digital output for safety instrumented systems.
115 VAC Opto-Isolated, Non-commoned TMR 3601E/3601T 16
120 VDC Opto-Isolated, Non-commoned Opto-Isolated, Commoned TMR 3603B, 3603E/3603T 16
24 VDC Opto-Isolated, Non-commoned TMR 3604E 16
48 VDC Opto-Isolated, Non-commoned TMR 3607E 16
115 VAC Galvanically Isolated, Commoned., Supv. TMR 3611E 8
48 VDC Galvanically Isolated, Commoned, Supv. TMR 3617E 8
120 VDC Opto-Isolated, Commoned, Supervised TMR 3623/3623T 16
24 VDC Opto-Isolated, Commoned, Supervised TMR 3624 16
24 VDC Supervised/Non-Supervised, Commoned TMR 3625 32
24 VDC Opto-Isolated, Commoned Dual 3664 32
24 VDC Opto-Isolated, Commoned Dual 3674 32
Relay Output Non-triplicated, Normally Open Nontriplicated 3636R/3636T 32
