TRICON 3000520-390 External Termination Assembly (ETA) for Tricon TMR Safety Systems

TRICON 3000520-390 External Termination Assembly (ETA) for Tricon TMR Safety Systems

Model: 3000520-390

Brand: TRICONEX

Core Function:External Termination Assembly (ETA) for Tricon TMR Safety Systems

Condition: New Original (New Surplus) / Factory Sealed

Origin: USA

Delivery time: 3 days

Add To Quote
Category: SKU: TRICON 3000520-390

Description

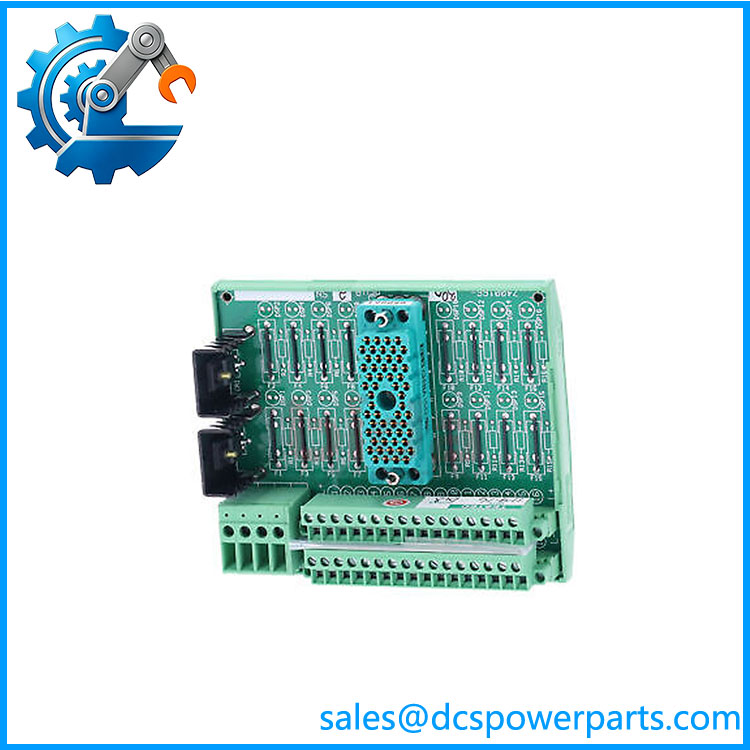

TRICONEX 3000520-390

External Termination Assembly (ETA) for Tricon TMR Safety Systems

Product Introduction

3000520-390 is a dedicated external termination terminal assembly developed by Triconex, designed to bridge field wiring and Tricon rack-mounted I/O modules. It cooperates with internal I/O boards to realize centralized signal wiring, built-in circuit protection and signal distribution for 24VDC digital input loops. Adopting standard DIN rail installation, it separates bulk field cables from the main control rack, simplifying maintenance and lowering the risk of damage to expensive rack I/O modules caused by field-side wiring faults. Widely deployed within SIL3 safety instrumented systems including ESD and Fire & Gas control loops.

Distinctive Design Highlights

✅ Integrated fuse protection circuit for each signal channel, effectively isolating surge, short-circuit faults from field equipment

✅ Pre-wired high-density connector interface for direct connection with Tricon I/O modules via dedicated cable assemblies

✅ 16-channel signal layout supporting commoned digital input signal collection

✅ Clear status indicator LEDs on each channel for rapid on-site signal troubleshooting

✅ Galvanic isolation design suppresses ground loop interference in complex industrial electromagnetic environments

✅ Modular DIN rail structure allows independent replacement without dismantling the main control rack wiring

✅ Conformal coated PCB improves resistance against humidity, dust and corrosive gas inside control cabinets

✅ Fully compatible with classic Tricon series TMR safety control hardware, convenient for system renovation and spare replacement

3000520-390

Technical Specification

Parameter Details
Part Number 3000520-390
Brand Triconex (Schneider Electric)
Product Type External Termination Assembly (ETA)
Supported Signal 24 VDC Common Digital Input
Channel Quantity 16 channels
Mounting Standard DIN 50022 DIN rail mounting
Built-in Protection Channel independent fuse overcurrent protection
Matching Cable Special shielded I/O connecting cable
Operating Temperature 0 ℃ ~ +60 ℃
Storage Temperature -40 ℃ ~ +85 ℃
Ambient Humidity 5%–95% RH, non-condensing
Protection Class IP20, indoor cabinet installation
Safety Standard Designed for SIL3 safety system configuration

Installation & Commissioning Guidance

All wiring work must be completed with system power cut off. Wear anti-static wrist strap to avoid static damage to circuit components. Install the assembly on the DIN rail and lock securely, reserve sufficient space for heat dissipation and wiring operation.
Distinguish field signal cables and rack connecting cables strictly according to wiring drawings. Separate low-voltage signal wires from high-power cables to reduce electromagnetic crosstalk. After wiring inspection, connect dedicated cable between ETA and rack I/O module.
Power on stepwise and check channel indicator status. Simulate field contact signals to verify accurate signal transmission to the Tricon controller. Test fault response by simulating short-circuit conditions to confirm channel protection works normally.
After commissioning acceptance, include this assembly into regular inspection items. Periodically check terminal screw tightness, fuse integrity and LED status; remove accumulated dust to maintain stable long-term signal transmission.

Typical Application Fields

Offshore Platform & Onshore Refinery SIS System

Signal termination for emergency shutdown and fire-gas safety interlock loops.

Thermal Power & Combined Cycle Power Plants

Safety interlock signal collection for turbine and boiler protection control systems.

Chemical & Petrochemical Production Units

Digital signal centralized wiring for high-risk process safety instrumented systems.

Industrial Cogeneration & Distributed Energy Stations

Field signal interface equipment for generator safety protection control cabinets.

Tricon Safety System Upgrade & Spare Part Retrofit Projects

Direct replacement of original termination hardware, compatible with existing cabinet wiring schemes.
