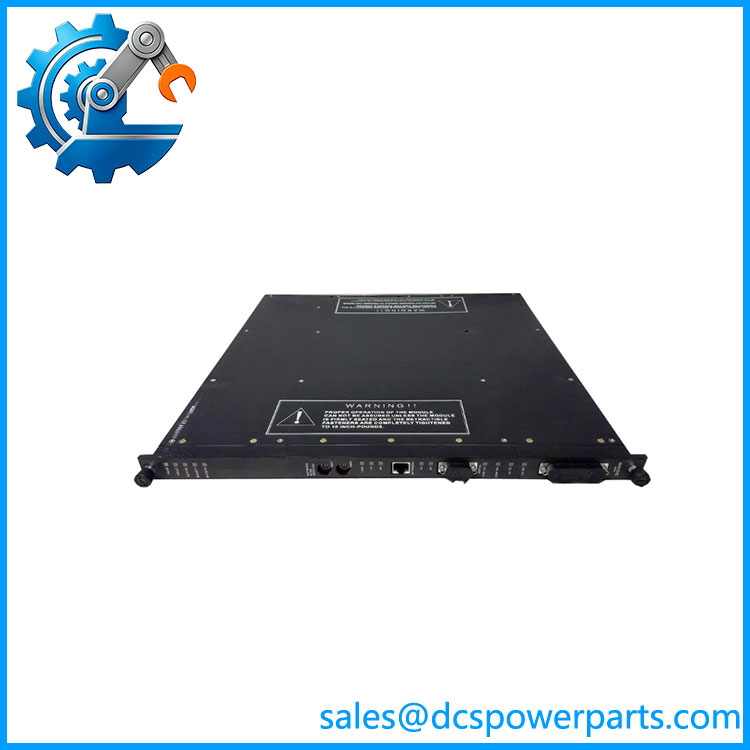

Triconex 3008 Main Processor Module
Continuing the industrial safety system module sequence, 3008 specifies the Main Processor (MP) Module manufactured by Triconex (Schneider Electric / Invensys) for the Tricon Triple Modular Redundancy (TMR) Safety Instrumented System (SIS).
Key Specifications & Overview
-
Manufacturer: Triconex (Schneider Electric)
-
Product Type: Main Processor (MP) Module
-
System Compatibility: Tricon v9.6 and later systems
-
Architecture Requirement: Three Main Processors must be installed in the main chassis of every Tricon TMR system to independently execute control programs and manage voting.
-
Microprocessor: Motorola MPC860 (32-bit, 50 MHz)
-
Memory Architecture:
-
16 MB DRAM (non-battery backed-up)
-
32 KB SRAM (battery backed-up)
-
6 MB Flash PROM
-
Communication & Performance
-
TriBus Communication Rate: Operates at 25 megabits per second with 32-bit CRC protection and fully isolated 32-bit DMA.
-
Diagnostics: Performs continuous, robust self-diagnostics on system health, memory, I/O communication channels, and voting integrity. Supports hot-replacement of modules.
-
Sequence of Events (SOE): Implements high-resolution time stamping and event-logging buffers for discrete process variables.
-
Diagnostic Port: Optically isolated RS-232 interface for system configuration and troubleshooting.
Certifications & Applications
Certified for use up to Safety Integrity Level (SIL) 3 (IEC 61508), the Triconex 3008 processor core manages safety-critical applications in hazardous process industries:
-
Emergency Shutdown Systems (ESD)
-
Critical Process Control & Turbomachinery Protection
-
Oil & Gas Upstream/Downstream Facilities
3008
Product Overview
3008 is the Enhanced Main Processor Module (MP) manufactured by Triconex (Schneider Electric) for the classic Tricon TMR fault-tolerant safety instrumented system.
As the core computing unit of the Tricon rack, it adopts Triple Modular Redundant (2oo3 voting) architecture. It executes user safety control logic, collects measurement and status data from all I/O modules via TriBus, processes limit algorithms and protection interlock functions, and uploads operating data to plant monitoring systems.
It is widely applied in SIL3-certified ESD emergency shutdown systems, turbine machinery protection, burner management and critical process safety control. It fits in classic Tricon main chassis and works with communication modules such as 3500/92.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 3008 |
| Module Type | Tricon Main Processor Module |
| Manufacturer | Triconex / Schneider Electric |
| Applicable Platform | Classic Tricon Safety Rack (8110 / 8120E) |
| Architecture | Triple Modular Redundancy (2oo3 voting) |
| Processor | 32-bit high-speed real-time CPU |
| Memory | 16MB DRAM, battery-backed SRAM for data retention |
| Internal Bus | TriBus triple redundant backplane bus |
| Power Supply | Powered by rack backplane, typical power consumption 10 W |
| Hot Swap | Supported within certified Tricon rack |
| Operating Temperature | -30 ℃ ~ +70 ℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Protection Class | IP20 (installed inside control cabinet) |
| Front Panel Indicators | OK, Fault, TX/RX communication LED indicators |
| Safety Certification | IEC 61508 SIL3, FM, CE |
| Engineering Software | Triconex Workbench |
| Spare Part Status | Production discontinued; surplus new and refurbished modules available |
Key Features
- Independent triple redundant computing paths; single processor channel fault cannot trigger spurious trip
- Supports millisecond-level safety logic execution for protection and interlock demands
- Built-in comprehensive self-diagnosis, monitors memory, bus communication and internal hardware status
- Battery backup memory retains program and historical fault event logs after power failure
- Mechanical keyed slot prevents misinstallation of incompatible modules
- Exclusive for classic Tricon platform; cannot be directly interchanged with Tricon CX series CPU modules
- Supports redundant main processor configuration to improve system availability for high-risk units
