Description

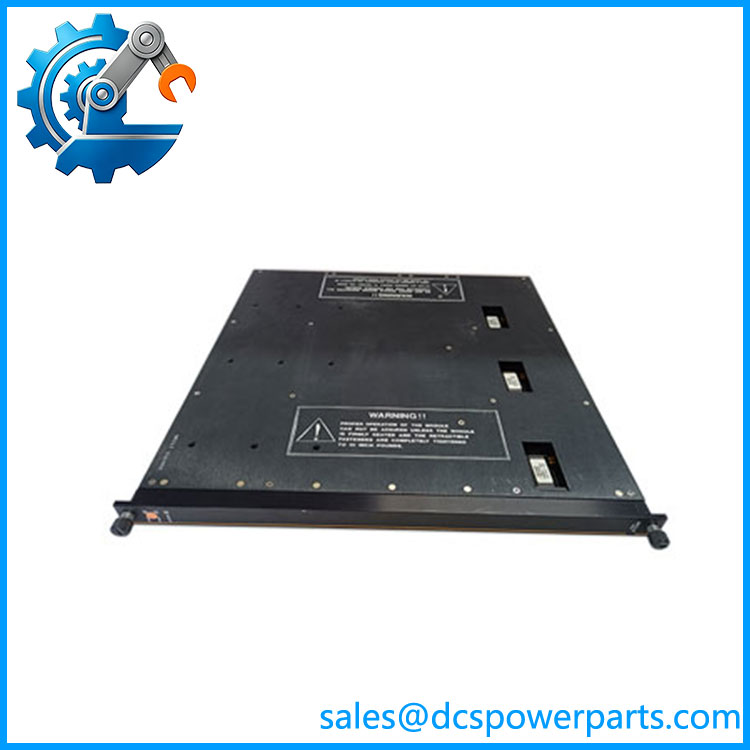

Triconex 3704E Analog Input Module
The 3704E is a high-density Analog Input Module engineered by Triconex (Schneider Electric) for use in Triple Modular Redundancy (TMR) safety systems.
Key Specifications & Overview
-
Manufacturer: Triconex (Schneider Electric)
-
Product Type: TMR Analog Input Module
-
Number of Input Points: 64 single-ended input channels (commoned)
-
Input Voltage Range: 0–5 V or 0–10 V (±6%)
-
Input Current Range: 0–20 mA (requires external shunt resistors, such as 250 $\Omega$ for 5V or 500 $\Omega$ for 10V)
-
Resolution: 12 bits
-
Input Update Rate: 75 ms
-
System Architecture: Triple Modular Redundancy (TMR) for high-availability fault-tolerant safety applications
Diagnostic & Status Indicators
-
PASS: Indicates the module’s internal diagnostics are healthy.
-
FAULT: Illuminates if an internal or external fault is detected.
-
ACTIVE: Signals that the module is actively communicating and controlling/monitoring the safety loop.
Applications
Like HIMA safety controllers, Triconex TMR systems utilizing modules like the 3704E are implemented in critical process industries demanding SIL 3 safety ratings, including:
-
Emergency Shutdown (ESD) Systems
-
Critical Process Control
-
Oil & Gas Upstream/Downstream Facilities
3704E
Product Overview
3704E is a 64-channel Single-Ended Analog Input Module manufactured by Triconex (Schneider Electric) for the classic Tricon TMR Fault-Tolerant Safety Instrumented System (SIS).
It adopts Triple Modular Redundant (2oo3 voting) architecture. It collects analog field signals (0–5 V / 0–10 V voltage or 4–20 mA current via matched shunt resistors) such as temperature transmitters, pressure transmitters and flow signals. After independent sampling by A/B/C three triplicated channels, voting calculation is performed inside the module, and valid measured values are sent to the main processor via TriBus backplane.
Widely used in ESD emergency shutdown systems, turbine safety monitoring and process safety control loops certified to IEC 61508 SIL3.
Important Reminder: 3704E belongs to the classic Tricon platform, it cannot be used on Tricon CX (8120X chassis); CX platform corresponding analog modules are 3805E / 3806E series.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 3704E |
| Module Type | 64-Channel Analog Input Module |
| Manufacturer | Triconex / Schneider Electric |
| Applicable Rack | Classic Tricon chassis (8110 / 8120E) |
| Channel Quantity | 64 single-ended channels (non-isolated per channel) |
| Supported Signal | Software selectable: 0~5 VDC / 0~10 VDC; 4–20mA (requires external shunt) |
| Architecture | Triple Modular Redundancy (TMR, 2oo3 hardware voting) |
| Resolution | 12 bit ADC |
| Measurement Accuracy | ≤ ±0.25%FS (0℃ ~ +60℃) |
| Update Cycle | Minimum 75 ms |
| Overvoltage Protection | Continuous withstand up to 150 VDC / 115 VAC |
| Backplane Bus | TriBus triple redundant internal bus |
| Power Supply | Powered by rack backplane |
| Hot Swap | Supported within certified Tricon rack |
| Operating Temperature | 0 ℃ ~ +60 ℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Safety Certification | IEC 61508 SIL3, FM, CE |
| Front Panel Indicators | PASS, FAULT, ACTIVE status LEDs |
| Engineering Software | TriStation |
| Spare Part Status | Production discontinued; surplus new & refurbished modules available |
Key Features
- Triple independent signal acquisition channels; single-channel hardware failure will not lead to loss of measurement or spurious trip
- High-density 64-channel design, greatly saves rack space for large-scale signal acquisition
- Built-in comprehensive channel diagnostics, monitors open circuit, over-range and abnormal signal status
- Software configurable signal range and filter time constant to suppress field signal noise
- Mechanical keyed connector prevents misplugging incompatible module types
- Cannot be interchanged with CX generation analog modules (3805E/3806E)
- Supports integration of plant temperature, pressure, level signals into safety interlock system
