Description
The part number MP3009X (often associated with the TCM 4355X module) specifies a high-performance Main Processor / Communication Module designed for the Triconex Tricon CX Safety Instrumented System (SIS) by Schneider Electric.
Technical Specifications
| Feature | Specification |
| Manufacturer | Triconex (Schneider Electric) |
| Product Series | Tricon CX Safety System / Main Processor (MP) |
| Architecture | Triple Modular Redundancy (TMR) |
| Operating Voltage | 24 VDC |
| Communication Interface | Modbus TCP/IP, Ethernet, Peer-to-Peer |
| Scan Time | High-speed processing (starting from 10 ms) |
| Operating Temperature | -40°C to +85°C |
| Safety Integrity Level | Certified up to SIL 3 (IEC 61508) |
Product Overview
The MP3009X processor module serves as the core intelligence for the compact, high-density Tricon CX safety platform. Built upon field-proven Triple Modular Redundancy (TMR) technology, it provides continuous, fault-tolerant execution of critical safety logic. It is engineered to prevent high-risk industrial accidents by ensuring uninterrupted protection and control.
Key Features:
-
TMR Fault Tolerance: Executes control logic across three isolated, parallel channels with automatic hardware voting to completely eliminate single-point failures and spurious trips.
-
High-Capacity Processing: Delivers robust processing power capable of handling extensive control algorithms and massive I/O networks.
-
Seamless Integration & Communication: Supports high-speed networking and open protocols (such as Modbus TCP/IP) for smooth connection with standard Distributed Control Systems (DCS) and SCADA platforms.
-
Online Maintenance: Supports online module replacement (hot-swapping) and dynamic software modifications without requiring plant shutdown, maximizing operational uptime.

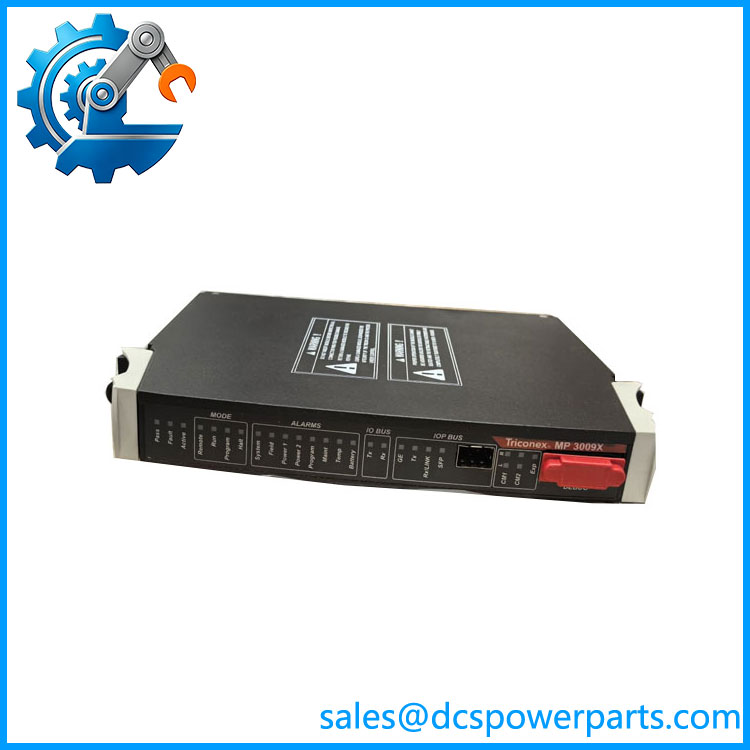

MP3009X
Core Functional Features
✅ Triple Modular Redundant three independent synchronous processing channels with hardware majority voting
Single-channel component faults will not cause incorrect safety outputs or system trips
✅ Improved processing performance and expanded memory to support complex interlock and safety sequence logic
✅ Multiple communication interfaces: TriBus internal rack bus, Ethernet and isolated serial maintenance port
✅ Comprehensive continuous self-diagnosis covering CPU, memory, communication circuits and application status
✅ Supports hot-swappable replacement under redundant configuration without rack shutdown
✅ Front panel LED indicators display run status, module faults and communication activity for on-site troubleshooting
✅ Deterministic logic execution to meet strict real-time requirements of safety instrumented systems
✅ Rugged hardware design with optional PCB conformal coating for high-temperature, dusty and high-EMI control cabinet environments
✅ Fully compatible with all standard Tricon Classic rack I/O modules and power supplies
✅ Programming and maintenance supported via TriStation 1131 engineering software
Installation & Commissioning Guidelines
Separate Ethernet communication cables, power wiring and field signal cables; apply standardized single-point shielding grounding for long-distance network links.
After wiring inspection, power on the rack sequentially. Use TriStation 1131 software to download safety application logic, configure network parameters and I/O mapping.
Conduct offline simulation and online function verification. If dual CPU redundancy is deployed, simulate single processor failure to verify bumpless master-slave switchover without interrupting safety interlock outputs.
Back up application programs regularly and implement periodic inspection: check connector tightness, module indicator status and remove accumulated dust.
