Description
Product Overview

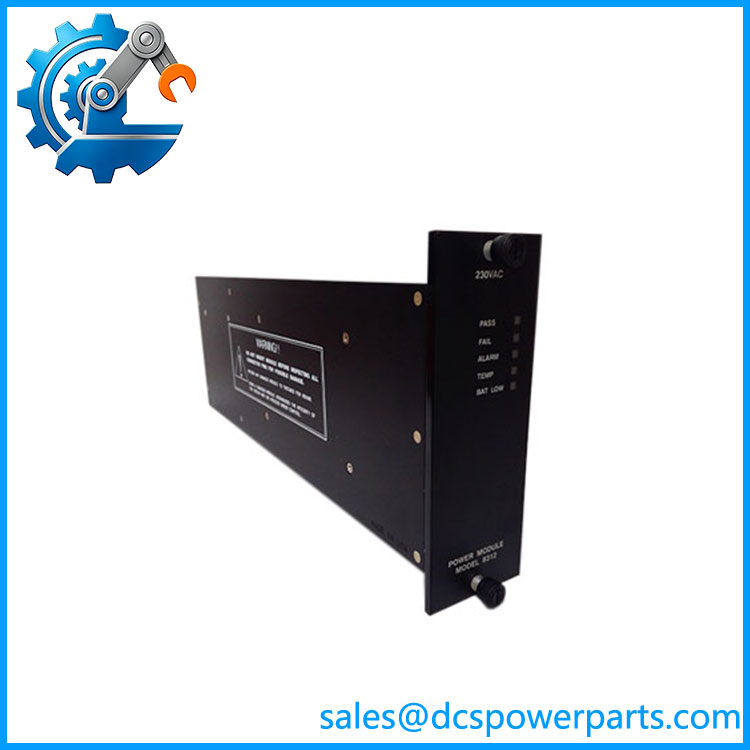

The Triconex 8312 is a Power Supply Module designed for use within Triconex Safety Instrumented Systems (SIS), specifically engineered to supply reliable, regulated power to the Tricon controller chassis environments (such as Main, Expansion, or RXM chassis).
Key Specifications
| Feature | Specification Details |
| Manufacturer | Triconex (Schneider Electric / Invensys) |
| Module Type | AC Power Supply Module |
| Nominal Input Voltage | 230 VAC (Input range: 185–285 VAC @ 47–63 Hz) |
| Fuse Rating | 2.5 Amps, time-delay |
| Output Hold Time | 20 ms minimum (nominal to 0 volts) |
| Diagnostic Indicators | PASS, FAULT, ALARM, TEMP, BAT LOW |
| Approximate Dimensions | 41.2 cm $\times$ 17.8 cm $\times$ 6.2 cm |
| Approximate Weight | ~2.85 kg to 3.5 kg |
Core Features & Application
-
Chassis Power Distribution: Provides robust power conversion and distribution to maintain continuous, stable operations across the safety system architecture.
-
Built-In Diagnostics: Features front-panel status indicators (
PASS,FAULT,ALARM,TEMP, andBAT LOW) to give maintenance personnel immediate visibility into health, thermal state, and battery/power integrity.
8312 is the 230VAC Power Supply Module manufactured by Triconex (Schneider Electric), designed for the classic Tricon TMR Fault-Tolerant Safety Instrumented System (SIS, Tricon v9～v11 platform).
It converts 230VAC input into stabilized 6.5VDC rack backplane power for main processors, I/O boards and communication modules inside the chassis. Two 8312 modules can be deployed in redundant mode; a single module alone can fully supply the whole chassis under rated load.
Important distinction of power module variants
- 8312: 230 VAC input version
- 8311: 24 VDC low voltage version
- 8310: 120 VAC variant
Not compatible with Tricon CX series 8120X chassis and cannot be interchanged with 8311.
8312
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 8312 |
| Module Type | Tricon Main Chassis AC Power Supply Module |
| Manufacturer | Triconex / Schneider Electric |
| Applicable Rack | Tricon 8110 / 8120E Classic Main Chassis |
| Input Power | 230 VAC (range: 185～285 VAC, 47～63 Hz) |
| Output | 6.5 VDC, Max 27 A, rated power 175 W (@60℃) |
| Internal Backup Battery | Onboard lithium battery, maintains RAM data backup during power loss |
| Fuse | 2.5 A time-delay fuse |
| Hot Swap | Supported inside compatible Tricon rack |
| Operating Temperature | 0 ℃ ~ +70 ℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Protection Class | IP20 (cabinet installation) |
| Front Panel LEDs | PASS, FAULT, ALARM, TEMP, BAT LOW |
| Safety Certification | IEC 61508 SIL3, FM; Not suitable for ATEX hazardous area applications |
| Spare Part Status | OEM production discontinued; surplus new & refurbished modules available |
Key Features
- Redundant configuration recommended; single power module failure will not cause system trip
- Built-in comprehensive monitoring: over-temperature, internal fault, low battery warning
- Continuous battery status monitoring for controller memory data retention
- Standard single-slot mechanical layout, keyed housing prevents misplugging
- Optimized surge suppression circuit, stable operation under strong electromagnetic interference in turbine & chemical cabinets
- Hot-swap capability; module replacement without rack shutdown
- Cannot be used for Tricon CX generation hardware; CX platform uses different infrastructure components
- Strict part number verification; cannot be replaced by 8311 / 8310 directly
