Description
Product Features
The TRICON 3000510-380 is a high-reliability triple modular redundant (TMR) safety control module designed for Triconex industrial safety instrumented systems (SIS). As a core functional component of safety interlock and emergency shutdown systems, this module adopts exclusive TMR fault-tolerant architecture and industrial safety-grade circuit design. It realizes high-precision logic control, fault self-diagnosis and safety interlock protection functions. With ultra-high operational reliability, strong anti-interference capability and full industrial safety certification, it supports 24/7 uninterrupted safe operation in high-risk industrial scenarios, effectively preventing system failure and ensuring the safety and stability of industrial production equipment and personnel.
1. Professional TMR Fault-tolerant Architecture: Adopts advanced triple modular redundant technology, with three independent parallel control channels for data voting processing. It can tolerate single-point and dual-point module faults without system shutdown, realizing non-stop fault tolerance and greatly improving system operational reliability.
2. Ultra-high Safety Reliability: Compliant with international industrial safety standards, suitable for high-level safety instrumented system applications. It features low failure rate on demand and high safety integrity, effectively avoiding safety accidents caused by control system failures in high-risk industrial production processes.
3. Full-range Intelligent Fault Diagnosis: Built-in comprehensive hardware and software dual diagnosis system, which real-timely monitors channel status, circuit operation, data consistency and communication links. It can automatically identify abnormal faults, locate fault points accurately and record fault logs to support rapid maintenance and system recovery.
4. Excellent Industrial Anti-interference Performance: Equipped with multi-layer electromagnetic shielding and anti-surge protection circuit, fully compliant with industrial EMC electromagnetic compatibility standards. It can resist strong electromagnetic interference, voltage surge and signal crosstalk in complex industrial environments, maintaining stable and accurate control logic operation.
5. Strong System Compatibility & Stability: Perfectly matched with TRICON series safety control systems, supporting seamless system docking and integrated operation. It adapts to industrial safety control logic requirements, with stable data transmission and accurate logic execution, ensuring consistent and reliable system linkage actions.
6. Harsh Environment Adaptability: The core circuit adopts industrial conformal coating protection, with excellent dust-proof, moisture-proof, anti-corrosion and anti-aging performance. The reinforced mechanical structure resists vibration and impact, adapting to long-term stable operation in high-temperature, high-humidity and dusty industrial scenarios.
7. Standard Modular Design: Features compact industrial modular structure with unified standard installation size. It supports fast plug-and-play installation and online replacement, simplifies system layout, saves cabinet space and reduces system maintenance downtime.
8. Complete Safety Protection Mechanism: Integrates multiple safety protection functions including overvoltage, overcurrent, short-circuit and abnormal logic interlock. It can automatically trigger safety protection actions when electrical or logical abnormalities occur to ensure the safe and stable operation of the entire industrial safety system.

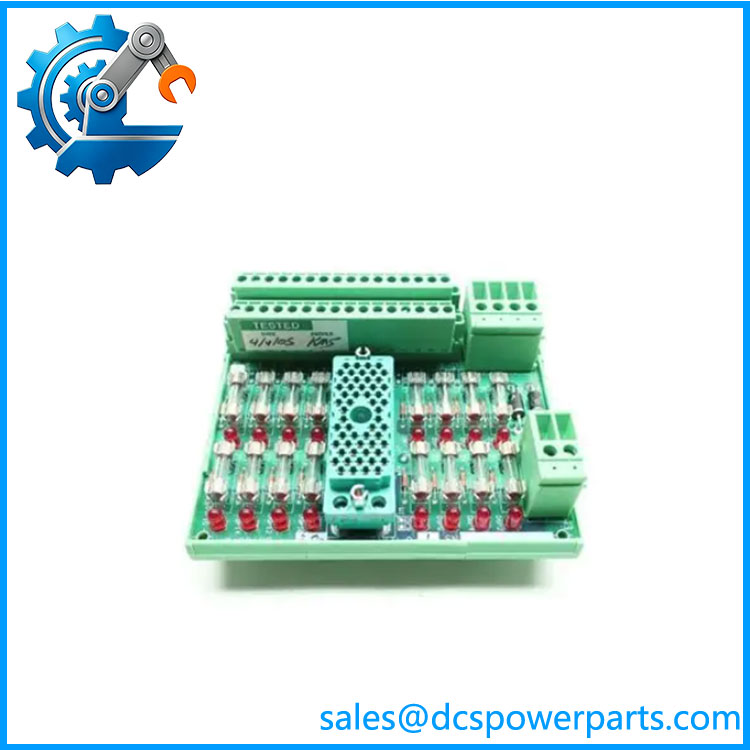

3000510-380
Product Parameters
|
Item
|
Specification
|
|
Product Model
|
TRICON 3000510-380
|
|
Product Type
|
Industrial TMR Safety Control Module
|
|
Applicable System
|
TRICONEX Safety Instrumented System (SIS), Industrial Emergency Shutdown System, Safety Interlock Control System
|
|
Core Architecture
|
Triple Modular Redundant (TMR) Fault-tolerant Structure
|
|
Core Functions
|
Safety logic operation, fault-tolerant data voting, system safety interlock control, real-time fault diagnosis, system state monitoring
|
|
Safety Level
|
Compliant with Industrial High-level Safety Integrity Standards
|
|
Communication Mode
|
Dedicated Safety System Bus Communication
|
|
EMC Standard
|
Compliant with IEC 61000 Industrial Electromagnetic Compatibility Standards
|
|
Protection Mechanism
|
Overvoltage, Overcurrent, Short-circuit Protection, Fault-tolerant Interlock Safety Protection
|
|
Diagnostic Function
|
Full-channel real-time self-diagnosis, fault location, alarm prompt and log storage
|
|
Surface Protection
|
Industrial Conformal Coating, Dustproof, Moisture-proof, Anti-corrosion, Anti-aging
|
|
Power Supply Mode
|
Standard Industrial Safety-grade DC Power Supply
|
|
Operating Temperature Range
|
-20℃ ~ +65℃
|
|
Storage Temperature Range
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5%~95% Non-condensing Industrial Environment
|
|
Structural Performance
|
Industrial-grade Reinforced Anti-vibration & Anti-shock Structure
|
|
Installation Method
|
Standard Cabinet Rack Fixed Installation, Online Replaceable
|
|
Operating Characteristic
|
Support 24/7 Long-term Uninterrupted Fault-tolerant Stable Operation
|
Product Usage Method
1. Pre-installation Inspection: Conduct a comprehensive inspection of the TRICON 3000510-380 module’s appearance, circuit board, golden fingers and terminal interfaces. Check for shell damage, circuit oxidation, component looseness and interface abrasion to ensure complete hardware performance. Verify the model specification to confirm full compatibility with the on-site TRICON safety instrumented system.
2. Static Protection & Environment Preparation: Complete installation in a dry, dust-free, ventilated and temperature-stable industrial safety control cabinet. Wear professional anti-static gloves and wrist straps during operation to prevent static electricity from damaging internal precision chips and safety circuits, ensuring standardized and safe construction.
3. Module Installation & Fixation: Align the module with the standard safety system rack slot, insert it smoothly and firmly, and lock the fixing device. Ensure reliable contact between the module and the backplane bus to avoid poor contact, signal interruption and system logic errors caused by vibration.
4. Standard Wiring Connection: Complete safety power supply wiring, system bus wiring and grounding wiring in strict accordance with industrial safety specifications and TRICON system wiring standards. Strictly distinguish safety circuit terminals to prevent wrong wiring and signal crosstalk, ensuring firm and standardized wiring layout.
5. System Configuration & Logic Debugging: After confirming all wiring is correct, connect the upper computer safety configuration software. Set safety control logic, interlock parameters and fault diagnosis thresholds according to on-site production safety requirements, download configuration programs and complete system adaptive matching.
6. Power-on Test & Function Verification: Perform segmented power-on detection to activate the module’s self-diagnosis function. Check system communication status and three-channel data consistency to verify fault-tolerant voting function and safety interlock performance. Simulate fault conditions to confirm that the module can trigger accurate safety protection actions without misoperation or failure.
7. Daily Operation & Regular Maintenance: Put the module into formal long-term safety monitoring operation after passing debugging. Regularly check module operating status, temperature, bus connection and fault log information, clean dust periodically, and replace aging accessories in time to ensure long-term stable and reliable operation of the industrial safety system.
Product Application Fields
1. Petrochemical Industry Safety System: Widely applied in safety instrumented systems and emergency shutdown systems of oil exploitation, refining and chemical production devices. It provides high-reliability fault-tolerant control for high-risk chemical production processes, preventing equipment failure and safety accidents and ensuring safe production operation.
2. Power Industry Safety Monitoring: Deployed in safety interlock control systems of thermal power plants, gas power plants and power generation auxiliary equipment. It monitors the safe operation status of power equipment in real time, realizes emergency protection and fault isolation, and guarantees the stable and safe operation of power generation systems.
3. Oil & Gas Transmission Engineering: Used in safety control systems of long-distance oil and gas pipelines, compression stations and storage facilities. It adapts to long-term unattended operation requirements, provides reliable safety interlock protection, and avoids leakage and explosion risks of oil and gas facilities.
4. Metallurgy & High-risk Process Industry: Suitable for safety instrumented control of high-temperature, high-pressure and high-risk process links in metallurgical smelting and heavy industrial production. With TMR fault-tolerant capability, it effectively eliminates system single-point failure risks and improves production safety level.
5. Industrial Key Equipment Protection: Universally applied in safety interlock and emergency shutdown control of large compressors, turbines, reaction kettles and other key industrial equipment. It provides ultimate safety protection for core production equipment, reducing equipment damage and production shutdown losses caused by faults.
