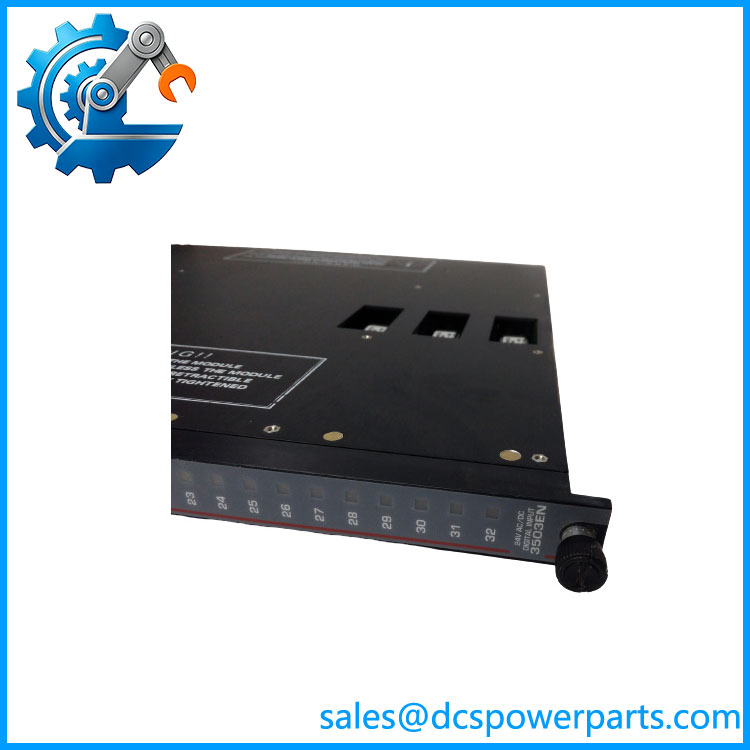

Triconex 3503EN is a Triple Modular Redundant (TMR) Digital Input Module designed for the Tricon Safety Instrumented System (SIS) platform. Manufactured by Triconex (a Schneider Electric company), 3503EN is an enhanced digital input module used for acquiring field discrete signals from process switches, emergency shutdown devices, limit switches, alarms, and other safety-related field equipment. It belongs to the Tricon Enhanced I/O module family and is designed to provide high availability, fault tolerance, and reliable signal acquisition in critical industrial automation applications.
Triconex 3503EN provides 32-channel digital input capability with Triple Modular Redundancy architecture, allowing three independent input processing paths to continuously monitor field signals. Each input channel is electrically isolated and processed independently before being evaluated by the Tricon main processors. This design prevents a single component failure from affecting system operation and enables the module to maintain safety integrity in SIL-rated applications.
As an enhanced replacement-oriented module in the Tricon safety controller family, Triconex 3503EN is widely applied in emergency shutdown systems (ESD), fire and gas systems, burner management systems, turbine protection systems, and other safety-critical installations. The module supports high-speed digital signal acquisition, comprehensive self-diagnostics, hot-swappable replacement, and seamless integration with existing Tricon chassis architectures, making 3503EN an important component for maintaining long-term reliability of industrial safety systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 3503EN |
| Manufacturer | Triconex (Schneider Electric) |
| Product Type | Enhanced TMR Digital Input Module |
| System Platform | Tricon Safety Instrumented System (SIS) |
| Input Type | Digital / Discrete Input |
| Number of Input Points | 32 channels |
| Input Configuration | Commoned inputs grouped by channels |
| Nominal Input Voltage | 24 VAC / VDC |
| Input Voltage Range | 20–42.5 VDC / 10–42.5 VAC |
| Input Frequency | DC or 47–63 Hz AC |
| Input Impedance | Approximately 1.25 kΩ |
| Isolation Type | Opto-isolated input channels |
| Isolation Rating | 1000 VAC minimum / 1500 VDC minimum |
| Input Delay | <8 ms OFF-to-ON; <15 ms ON-to-OFF |
| Architecture | Triple Modular Redundancy (TMR) |
| Diagnostic Functions | Channel diagnostics, module health monitoring |
| Hot Spare Capability | Supported |
| Power Consumption | Less than 10 W |
| Operating Temperature | -40°C to +70°C |
| Safety Certification | IEC 61508 SIL 3 capable |
3503EN
Main Features and Advantages
Triconex 3503EN is designed for applications where reliable acquisition of discrete safety signals is essential. Unlike standard PLC digital input modules, 3503EN incorporates Triconex TMR technology, providing three independent processing channels for every input signal. This architecture allows the system to tolerate individual channel failures while continuing to provide valid input information to the safety controller.
A major advantage of Triconex 3503EN is its high-density 32-channel digital input design. The module enables users to connect numerous field devices within a compact Tricon chassis configuration, reducing cabinet space requirements while maintaining safety system performance. Each input point can monitor critical field conditions such as valve position feedback, pressure switch status, motor protection signals, and emergency shutdown commands.
Triconex 3503EN provides strong electrical isolation through opto-isolated input circuits. This design improves protection against field wiring faults, electrical noise, and transient disturbances commonly found in industrial environments. The module can reliably interface with switches and sensors installed in large process plants where long cable distances and harsh electrical conditions are common.
Advanced diagnostics are another important feature of 3503EN. The module continuously monitors internal hardware conditions, input signal integrity, and communication status with the Tricon processors. Diagnostic information is reported through the Tricon system, allowing maintenance personnel to quickly identify abnormal conditions and reduce troubleshooting time.
Triconex 3503EN supports hot replacement strategies, allowing maintenance teams to replace a faulty module while minimizing interruption to the running safety system. This capability is especially valuable in continuous-process industries where shutdowns can result in significant production losses.
The module is optimized for integration with Tricon safety controllers and engineering environments, providing compatibility with existing SIS configurations. Facilities operating older Tricon systems can use 3503EN to maintain system availability and extend the operational life of installed safety platforms.
With TMR fault tolerance, high-density input capability, robust isolation, and comprehensive diagnostics, Triconex 3503EN provides a dependable solution for safety-critical digital signal monitoring applications.
Applications
Triconex 3503EN is widely used in industrial Safety Instrumented Systems where reliable monitoring of discrete field conditions is required. In oil and gas facilities, 3503EN is commonly installed in emergency shutdown systems to monitor shutdown pushbuttons, valve limit switches, pressure switches, and equipment protection signals.
In petrochemical and chemical plants, Triconex 3503EN supports safety monitoring functions including process interlocks, alarm inputs, equipment status monitoring, and hazardous condition detection. Its TMR architecture ensures that safety decisions remain reliable even when individual hardware faults occur.
Power generation facilities use 3503EN in turbine protection systems, boiler safety systems, burner management systems, and auxiliary equipment protection applications. The module provides dependable acquisition of discrete signals required for safe operation and rapid response to abnormal conditions.
In offshore platforms and pipeline facilities, 3503EN is used for monitoring critical field devices distributed over large industrial areas. The module’s isolation capability helps maintain reliable operation in environments with electrical interference and demanding operating conditions.
Manufacturing plants, mining facilities, and large process industries also utilize Triconex 3503EN as part of high-availability automation architectures. It provides a reliable interface between field devices and safety controllers, helping organizations achieve improved operational safety and regulatory compliance.
Typical application areas include:
- Safety Instrumented Systems (SIS)
- Emergency Shutdown Systems (ESD)
- Fire and Gas Protection Systems
- Burner Management Systems (BMS)
- Turbine Protection Systems
- Oil and Gas Facilities
- Petrochemical Plants
- Power Generation Systems
- Process Interlocking Systems
