Description

Product Overview

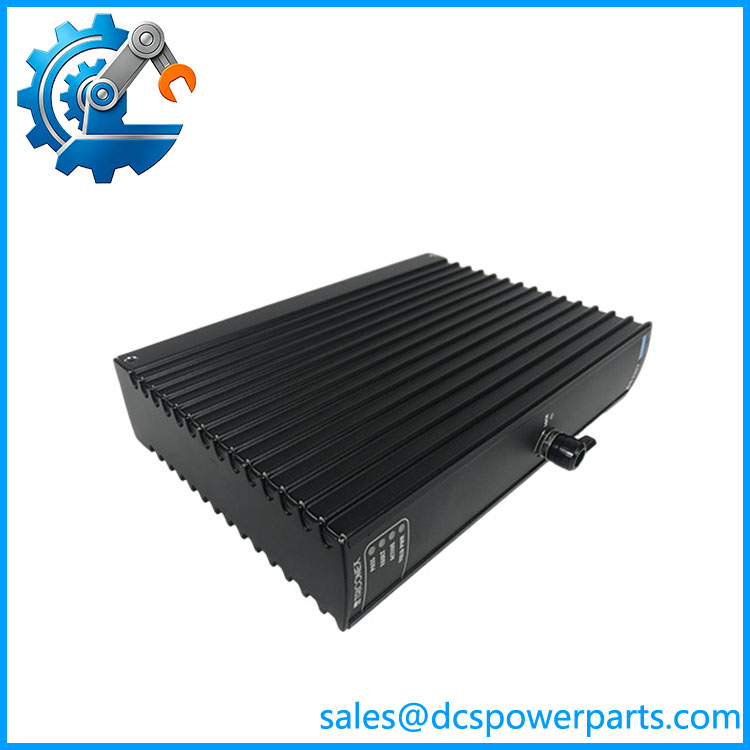

TRICONEX 3351 is a high-reliability analog input module designed for the Triconex Trident Safety Instrumented System (SIS) platform. It is a critical input component used for acquiring field analog signals and transmitting processed measurement data to the Triconex safety controller. The module is primarily designed for industrial process safety applications where continuous monitoring, fault tolerance, and high availability are required. As part of the Triconex safety control architecture, 3351 provides accurate acquisition of 4–20 mA current signals from field transmitters such as pressure transmitters, temperature transmitters, flow meters, level instruments, and other process measurement devices.

TRICONEX 3351 incorporates a fault-tolerant input design with three independent processing channels, allowing the module to support high-integrity safety applications. Each input signal is independently processed through redundant electronic circuits, enabling continuous diagnostics and fault detection while maintaining system availability. The module supports 32 commoned analog input points with a nominal 4–20 mA DC input range, making it suitable for large-scale process monitoring applications requiring multiple field measurement points.

Within a Triconex safety system, 3351 acts as the interface between field instrumentation and the main processor modules. It performs signal conversion, filtering, diagnostics, and communication functions before transferring validated data to the controller. With features such as high-speed scanning, online replacement capability, and advanced diagnostic functions, TRICONEX 3351 provides a dependable solution for safety-critical industries including oil and gas, petrochemical, power generation, and chemical processing plants.

Technical Specifications

Parameter	Specification
Product Model	3351
Manufacturer	TRICONEX (Schneider Electric / Invensys)
Product Type	Analog Input Module
System Platform	Tricon / Trident Safety Instrumented System
Input Type	Analog current input
Number of Channels	32 points, commoned
Nominal Input Signal	4–20 mA DC
Operating Input Range	2–22 mA DC
Maximum Field Voltage	33 VDC
Maximum Input Current	50 mA DC
Input Bandwidth	16 Hz (-3 dB)
Input Impedance	250 Ω with baseplate
Source Impedance	180 Ω
Resolution	12-bit
Accuracy	±0.15% of full scale at 20 mA
Scanning Time	<1 ms for all 32 points
Diagnostic Function	Force-to-Value Diagnostic (FVD)
Isolation Voltage	500 VDC functional-to-protective earth; 800 VDC logic isolation
Installation Type	Triconex rack-mounted plug-in module

3351

Main Features and Advantages

TRICONEX 3351 is designed specifically for safety-critical automation environments where measurement accuracy and system availability are essential. Its most important advantage is the integration of fault-tolerant architecture within the analog input module itself. Unlike conventional industrial I/O modules, 3351 uses independent input processing channels to provide continuous monitoring and fault isolation, significantly improving system reliability and reducing the possibility of undetected failures.

One of the key strengths of 3351 is its compatibility with standard industrial 4–20 mA field instrumentation. This allows direct connection with a wide range of process transmitters used in modern plants, including pressure, temperature, flow, and level measurement devices. By supporting 32 analog input points, the module enables efficient integration of multiple field signals into a single safety control system, reducing cabinet space requirements and simplifying system engineering.

TRICONEX 3351 provides advanced diagnostic capabilities to maintain safe operation. The built-in Force-to-Value Diagnostic (FVD) function allows the system to verify input processing performance and detect abnormal conditions. Continuous channel monitoring helps identify wiring problems, signal abnormalities, and internal module faults before they affect the safety function.

Another significant advantage of 3351 is its fast response capability. With a scan time of less than 1 millisecond for all 32 input points, the module can quickly acquire process information and deliver updated data to the safety controller. This performance is especially valuable in emergency shutdown systems and critical process protection applications where rapid response is required.

The modular design of TRICONEX 3351 also simplifies maintenance activities. The module supports online replacement features within the Triconex architecture, allowing maintenance personnel to replace defective modules without shutting down the complete safety system. This improves plant availability and reduces production losses.

Through its combination of accuracy, redundancy, diagnostics, and maintainability, TRICONEX 3351 remains a trusted analog input solution for high-integrity safety applications across global industrial facilities.

Applications

TRICONEX 3351 is widely used in Safety Instrumented Systems (SIS) across industries where reliable process monitoring and emergency protection are required. In oil and gas facilities, the module is commonly applied in refinery units, offshore platforms, gas processing plants, and pipeline systems to collect critical process signals from field transmitters. These signals may include pressure, temperature, flow, and liquid level measurements used for shutdown logic and safety interlocks.

In petrochemical and chemical processing plants, TRICONEX 3351 provides the analog signal interface required for monitoring hazardous process conditions. The module can receive measurement data from critical equipment such as reactors, compressors, pumps, storage tanks, and distillation systems. By providing accurate and reliable input information, 3351 supports emergency shutdown systems designed to protect personnel, equipment, and the environment.

Power generation facilities also utilize 3351 in turbine protection, boiler monitoring, and auxiliary process control applications. The module’s fast response and diagnostic capabilities make it suitable for applications where incorrect process data could result in equipment damage or unsafe operating conditions.

TRICONEX 3351 is also applied in marine, pharmaceutical, mining, and industrial manufacturing environments where safety automation systems require dependable analog signal acquisition. When integrated with Triconex safety controllers, 3351 helps organizations achieve high system availability, regulatory compliance, and improved operational safety.

For engineering contractors and automation integrators, 3351 provides a proven solution for expanding or maintaining existing Triconex SIS installations while maintaining compatibility with established safety architectures.

Related Products

TRICONEX 2351 — Analog Input Baseplate designed for direct termination applications and used with Triconex analog input modules.

TRICONEX 2352 — External termination panel baseplate used for remote field wiring applications with analog input modules.

TRICONEX 3008 — Main Processor Module used in Triconex safety controllers for executing safety logic and system diagnostics.

TRICONEX 3501E — Digital Input Module used for acquiring discrete field signals in Triconex SIS systems.

TRICONEX 3700A — Analog Output Module used for transmitting control signals from the Triconex controller to field devices.

TRICONEX 3601E — Digital Output Module designed for reliable control of field actuators and safety devices.

TRICONEX 4351B — Analog Input Module variant used in specific Triconex controller configurations.

TRICONEX 4119A — Communication Module supporting integration between Triconex systems and external control networks.

TRICONEX 8312 — Power Supply Module providing redundant power support for Triconex system racks.
