Description
The part number TRICON 3503E (often formatted as Triconex 3503E) refers to a critical safety system input module manufactured by Triconex (Schneider Electric / Invensys).
Product Overview
-
Manufacturer: Triconex (Schneider Electric)
-
Part Number / Model: 3503E (frequently labeled as model 3503EN2)
-
Component Type: 24 VAC/DC Digital Input (DI) Module
-
Platform: Tricon Triple-Modular Redundant (TMR) Safety Instrumented System (SIS)
Key Specifications & Features
-
Channel Capacity: Features 32 digital input channels, commoned in groups of 8.
-
Input Ratings: Designed for nominal 24 VAC/DC signals, with a recommended input voltage range of 20 to 42.5 VDC/VAC.
-
TMR Architecture: Utilizes Triple-Modular Redundant technology, meaning input values are processed across three independent pathways to guarantee fault-tolerant operation and zero single-point-of-failure vulnerability.
-
Self-Test Diagnostics: Features continuous built-in self-test and diagnostic monitoring circuitry to check for circuit or channel anomalies instantly without interrupting process control.
Industrial Deployment
-
Applications: Widely deployed in high-risk, mission-critical safety applications such as Emergency Shutdown Systems (ESD), Fire and Gas (F&G) protection, Burner Management Systems (BMS), and High Integrity Pressure Protection Systems (HIPPS) within oil, gas, chemical, and power generation facilities.
3503E

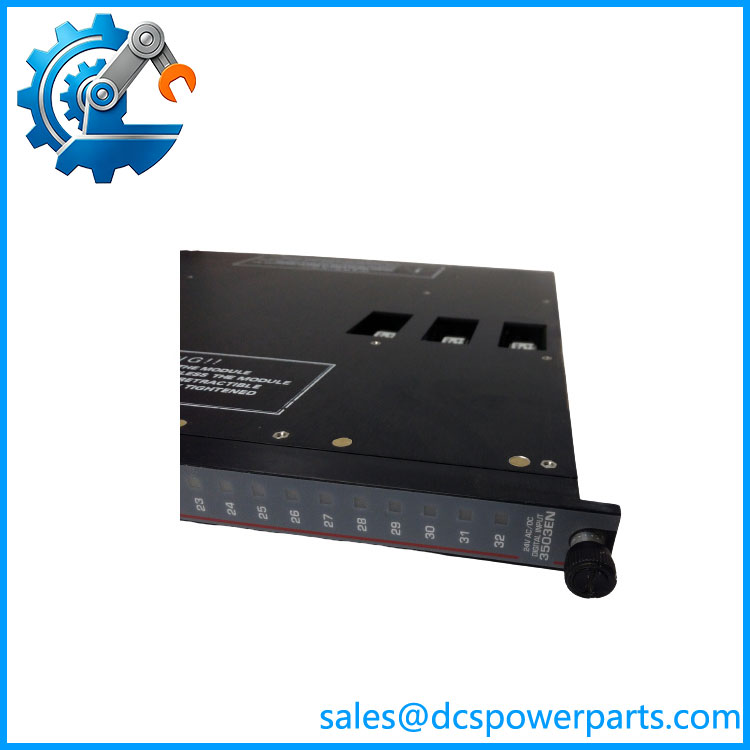

TRICON 3503E
Product Overview
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 3503E |
| Module Type | TMR Digital Input Module |
| Manufacturer | Triconex (Schneider Electric) |
| Applicable System | Tricon SIS Safety Control Platform |
| Channel Quantity | 32 digital input channels, grouped into 4 sets of 8 channels |
| Nominal Input Voltage | 24 VAC/DC |
| Operating Input Range | 20 ~ 42.5 VAC/DC |
| Supported Frequency | DC or 47–63 Hz AC signals |
| Signal Type | Voltage input, dry contact compatible |
| Safety Architecture | Triple Modular Redundant (TMR), 2oo3 hardware voting |
| Safety Certification | IEC 61508 SIL 3, FM, ATEX certified |
| Response Time | Less than 15 ms |
| Power Consumption | Max. 5 W |
| Operating Temperature | -40℃ ~ +70℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Installation Mode | Standard rack plug-in card, hot-swappable |
| Spare Part Status | Active production; original new units and surplus spare stock available |
Key Features
- Triple modular redundant circuit design, single channel fault will not affect overall signal acquisition
- Built-in continuous channel diagnostics to detect open circuits, short circuits and abnormal wiring conditions
- Supports hot-swap replacement without interrupting the running safety control rack
- Hardware voting mechanism restrains transient noise and avoids false trips caused by interference
- Group isolation design improves anti-electromagnetic interference capability in complex industrial sites
- Front panel status indicators facilitate on-site fault inspection and maintenance
- Strict matching of complete part number is required; different revision variants cannot be directly interchanged
- Rugged industrial structure with anti-vibration performance for long-term continuous unattended operation
