Description

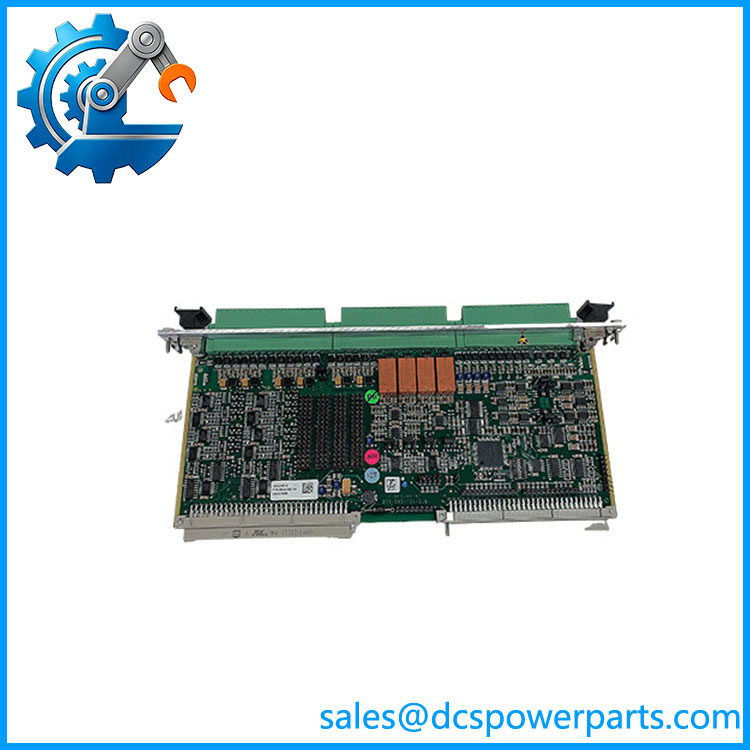

Vibro-Meter IOC8T 200-580-000-111 | VM600 AMC8 I/O Card
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IOC8T |
| Part Number | 200-580-000-111 |
| Manufacturer | Vibro-Meter / Meggitt |
| System | VM600 |
| Product Type | Input/output card |
| Associated Monitoring Card | AMC8 |
| AMC8 Part Number | 200-550-005-112 |
| I/O Function | Interface for AMC8 monitoring channels |
| Rack Installation | VM600 system rack |
| System Backplane | VM600 rack backplane |
| Application | Machinery condition monitoring |
| Architecture | Rear I/O card paired with front monitoring card |
| Exact Variant | 200-580-000-111 |
| Power | Supplied through VM600 rack architecture; verify rack configuration |
| Operating Temperature | Verify against applicable VM600 rack/card documentation |
| Protection Rating | Rack-mounted module; verify system enclosure rating |
| Standalone Operation | No; used as part of monitoring architecture |
The broader architecture uses separate monitoring/processing cards and corresponding rear I/O cards. Documentation identifies the AMC8 as 200-550-SSs-HHh and the corresponding IOC8T as 200-580-000-HHh.
Product Introduction
The Vibro-Meter IOC8T 200-580-000-111 is an I/O interface card used with the AMC8 analog monitoring card in the machinery monitoring platform. Rather than functioning as a standalone PLC-style analog input module, the IOC8T forms part of the card pair that connects monitoring functions to the external measurement and control wiring associated with a rack.
The exact 200-580-000-111 variant appears in equipment references alongside the and other rack components. A separate system-rack reference also lists the IOC8T alongside the , CPUM, IOCN, IOC4T, and other rack modules.
IOC4T
Engineering Pain Point
The main replacement risk is incorrectly treating the as an independent measurement card. The actual monitoring function depends on the associated configuration, rack, backplane, and system wiring. A replacement should therefore be matched to the and the existing rack architecture rather than selected simply because the physical card appears similar.
Typical Applications
- machinery monitoring: I/O interface for -based analog monitoring.
- Rotating equipment monitoring: Turbine, compressor, generator, pump, and other machinery monitoring systems using .
- Power-generation equipment: Rack-based condition-monitoring installations requiring dedicated measurement-card interfaces.
- Industrial machinery protection: Existing installations where the forms part of the measurement chain.
Technical Pitfalls to Avoid
- Do not confuse with IOC4T. The IOC4T is associated with the MPC4 machinery protection card, while the is associated with the . documentation explicitly distinguishes these card pairings.
- Do not use generic “8-channel temperature module” specifications. One secondary listing describes the exact part as an RTD temperature input module, but the system documentation identifies as the I/O card for . Those are materially different functions.
- Match the complete part number.
200-580-000-111belongs to the family, and the final digits can distinguish hardware/configuration variants. - Verify the card. The should be checked against the installed part number and revision. The commonly referenced is 200-550-005-112.
- Check the rack and rear connector arrangement. The is part of the rack’s rear I/O architecture rather than a general-purpose DIN-rail module.
- Do not infer electrical limits from unrelated IOC cards. IOC4T, IOCN, IOC16T, and have different associated processing cards and system functions. Their specifications should not be transferred from one family to another.
Related Products
- 200-550-005-112 — Analog monitoring card paired with the ; the primary compatibility reference for this I/O card.
- IOC4T 200-560-000-113 — I/O card associated with MPC4 machinery protection cards rather than .
- IOC16T 200-565-000-113 — I/O card associated with the CMC16 condition-monitoring card.
- IOCN 200-566-000-113 — I/O card associated with the CPUM modular CPU card.
- CMC16 200-530-025-014 — condition-monitoring card using the IOC16T I/O architecture.
- MPC4 200-510-071-311 — machinery protection card associated with the IOC4T family rather than .
- CPUM 200-595-079-531 — modular CPU card associated with IOCN.
- RPS6U 200-582-200-013 — rack power supply used within the same rack architecture.
- ABE040 204-040-100-011 — system rack capable of accommodating monitoring and I/O card pairs.
Procurement Note
For a Vibro-Meter 200-580-000-111 replacement, verify four items before approving the part: complete part number, installed part number/revision, rack type, and the existing rear-I/O wiring/connector arrangement.
I would specifically reject any procurement description that calls this part a generic RTD temperature input card. The stronger documentation identifies it as the I/O card for the , while the exact electrical channel specifications should be taken from the applicable / hardware documentation rather than copied from inconsistent secondary listings.
