Vibro-Meter VM600-CSA 204-040-100-211 | Standard 19-Inch Rack, CSA Standard

Description

Key Technical Specifications

The ABE040/ABE042 rack architecture uses a 6U, 19-inch rack with an integrated VME backplane. The rack can accommodate up to 15 single-width modules/card pairs, or combinations of single- and multiple-width modules. One or two RPS6U power supplies can be installed.

The manufacturer safety documentation specifically maps 204-040-100-211 to the Standard 19-inch rack, CSA standard.

Product Introduction

Vibro-Meter -CSA 204-040-100-211

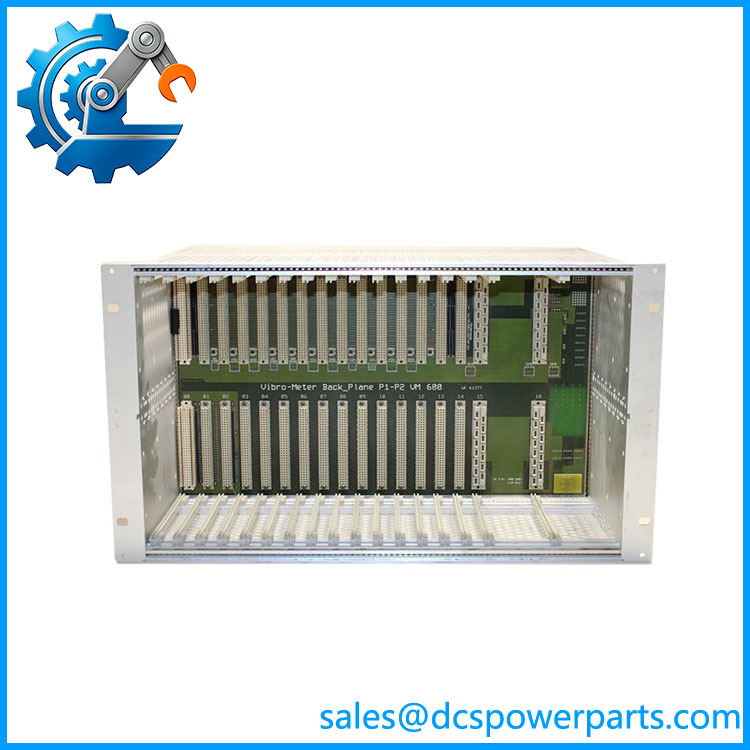

The Vibro-Meter -CSA 204-040-100-211 is a 6U, 19-inch rack assembly used to build machinery protection and condition-monitoring systems. It provides the mechanical mounting structure and integrated VME backplane required by processing, I/O, relay, CPU, and power-supply modules.

This is infrastructure hardware, not a measurement card. The rack itself does not perform vibration analysis or machinery protection logic. Those functions come from installed cards such as MPC4, CMC16, CPUM, RLC16, and their associated I/O cards.

VM600-CSA

Application Scenarios & Field Pitfalls

Engineering Pain Point

A rack can look mechanically fine while having an electrical problem at the backplane. If several installed cards suddenly lose power or communication together, replacing individual MPC4 or CPUM cards first is the wrong direction. Check the rack power supply, backplane connections, rack wiring, and common power path.

Typical Applications

• Power Generation — rack systems for turbine vibration, bearing monitoring, speed measurement, and machinery trip protection.
• Oil & Gas — Compressor, turbine, pump, and rotating-equipment protection systems.
• Petrochemical Processing — Continuous vibration and machinery-condition monitoring integrated with plant protection systems.
• Industrial Machinery — Centralized racks combining vibration protection, condition monitoring, relay outputs, and communication functions.

Technical Pitfalls to Avoid

1. Do not confuse the rack with an electronic monitoring card.
   The 204-040-100-211 is the rack/backplane assembly. It is not an MPC4 vibration-processing card, CPUM controller, or IOC4T I/O card.
2. Verify the CSA version.
   has several rack variants. The manufacturer specifically identifies 204-040-100-211 as the CSA-standard rack, while other part numbers correspond to different rack configurations.
3. Check the backplane before replacing cards.
   If multiple cards show simultaneous communication or power faults, inspect the common backplane and power-distribution path.
4. Confirm the RPS6U configuration.
   The rack can use one or two RPS6U power supplies. Two supplies can provide rack power redundancy; the exact configuration should match the installed system design.
5. Do not mix rack and card part numbers.
   For example, 200-510-xxx-xxx numbers generally identify MPC4 machinery-protection cards, while 204-040-100-211 identifies the rack. Keep the mechanical assembly and electronic-card identification separate during procurement.
6. Check rear I/O connectors.
   processing cards are installed at the front while associated I/O cards are installed at the rear. Loose or damaged rear connections can create field-signal problems that appear to originate from the processing card.
7. Inspect the rack power-check relay.
   The rack includes a power-supply check relay at the rear, providing an indication of installed RPS6U supply status.
8. Maintain correct grounding.
   The rack is part of a machinery-protection installation where signal integrity and protective-function wiring matter. Verify cabinet protective earth and rack grounding according to the applicable installation documentation.
9. Do not assume all cards fit every slot arrangement.
   The rack accommodates both single-width and multiple-width modules. Check the physical card width and intended slot arrangement before populating an empty rack.
10. Do not substitute a visually similar 19-inch rack.
    The integrated VME backplane is part of the system. A generic 19-inch enclosure cannot replace the rack merely because the mechanical dimensions appear similar.

Related Products

• Vibro-Meter MPC4 — 200-510-111-034 — Machinery protection card used for vibration and speed/phase monitoring. It is one of the primary processing cards installed in the rack.
• Vibro-Meter IOC4T — 200-560-000-113 — Input/output card associated with MPC4 configurations. It provides the physical sensor and external I/O connections while the performs the processing/protection functions.
• Vibro-Meter RLC16 — 200-570-000-111 — Relay card used to expand alarm and protection relay outputs within the rack.
• Vibro-Meter CPUM — 200-595-045-114 — Rack controller/communication card used for system management and communication functions. It occupies a functional role different from the machinery-protection .
• Vibro-Meter CMC16 — 200-530-025-014 — Condition-monitoring card for systems. It is intended for condition-monitoring applications rather than being the rack’s common infrastructure.
• Vibro-Meter IOC16T — 200-565-000-013 — I/O card associated with CMC16 condition-monitoring configurations. It provides the field interface for the corresponding monitoring architecture.
• Vibro-Meter — 200-582-200-013 — 24 VDC rack power supply. One or two units can be installed in the rack depending on the required power and redundancy arrangement.
• Vibro-Meter -ABE040 — 204-040-100-011 — Related 19-inch rack configuration. It belongs to the same rack family, but the part number and mounting configuration differ from the CSA version.
• Vibro-Meter -ABE042 — 204-042-100-011 — Another rack variant. The ABE040 and ABE042 designs are similar but differ in mounting-bracket position, so the exact rack configuration matters for cabinet installation.
• Vibro-Meter IRC4 — 601-001-CCC-HHh — Intelligent relay card family for Mk2 systems. It is an alternative relay architecture to the conventional RLC16 and is relevant when upgrading protection output arrangements.
