TRICON 3009 Enhanced Main Processor (UMP)

TRICON 3009 Enhanced Main Processor (UMP)

Model: 3009

Brand: TRICONEX

Core Function:Enhanced Main Processor (UMP)

Condition: New Original (New Surplus) / Factory Sealed

Origin: USA

Delivery time: 3 days

Add To Quote
Category: SKU: TRICON 3009

Description

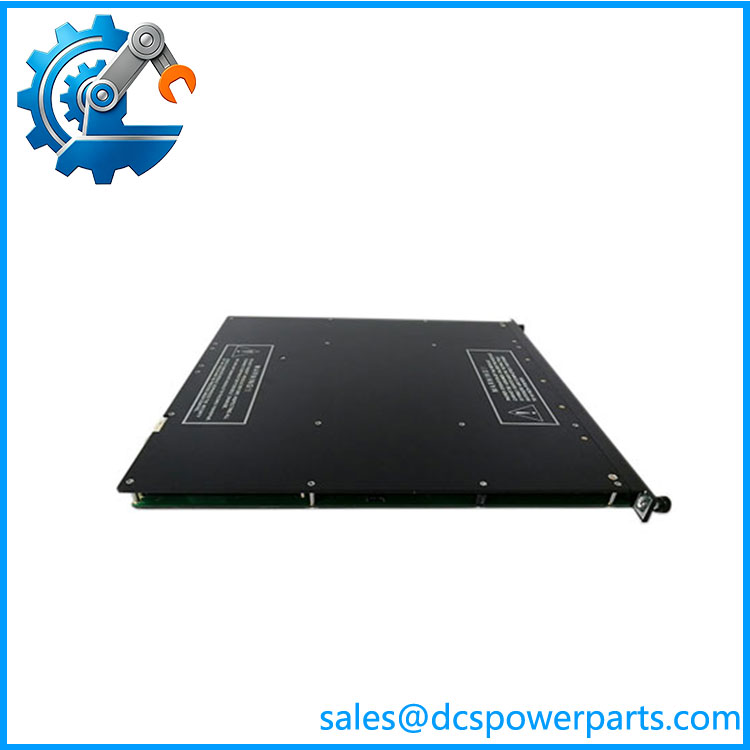

TRICON 3009 (MP3009)

Enhanced Main Processor Module | Triconex Tricon SIS Platform

Brief Introduction

TRICON 3009, also known as MP3009 Enhanced Main Processor (UMP), is the core computing unit for Triconex Tricon triple modular redundant safety instrumented systems. Built around proven TMR technology, three identical 3009 modules run synchronously inside one control rack. Through the proprietary TriBus, the system executes two-out-of-three voting logic to filter erroneous outputs caused by single-channel hardware faults.
It undertakes safety logic operation, field I/O data processing, sequence-of-event logging and external communication tasks. Widely deployed in ESD, F&G and burner safety control loops, the module complies with SIL3 safety standards and remains a mainstream spare hardware option for upgrading and maintaining legacy Tricon safety control cabinets worldwide.

Core Functional Strengths

▪ Triple Modular Redundant parallel processing architecture, eliminates single-point failure risks for critical safety loops

▪ Support hot-swap replacement; maintenance can be carried out without shutting down the whole safety system

▪ Onboard high-speed TriBus interface to realize low-latency data interaction with all I/O modules inside the rack

▪ Built-in SOE event timestamp recording, convenient for post-fault tracing and accident analysis

▪ Multiple communication ports including Ethernet and serial interfaces for interconnection with DCS and monitoring host

▪ Comprehensive hardware self-diagnosis covering processor, memory, bus circuits and communication links

▪ Conformal coated circuit board, stable operation under vibration, temperature fluctuation and humid cabinet environments

▪ Compatible with TriStation 1131 programming software for safety logic download and online monitoring

3009

Technical Profile

Specification Details
Model TRICON 3009 / MP3009
Brand Triconex (Schneider Electric)
Module Type Enhanced Main Processor (UMP)
Applied System Tricon Classic TMR Safety Instrumented System
Safety Grade SIL3 certified (IEC 61508)
Redundancy Mode Triple Modular Redundancy (TMR)
Data Bus TriBus proprietary high-speed bus
Main Communication Ethernet, RS232/RS485 serial channel
Mounting Form Plug-in card for Tricon standard chassis
Hot Swap Supported
Operating Temperature 0 ℃ ~ +60 ℃
Storage Temperature -40 ℃ ~ +85 ℃
Ambient Humidity 5%–95% RH, non-condensing
Cooling Natural convection cooling

Installation & Commission Reminders

Cut off cabinet power before disassembly and installation. Wear anti-static wrist strap to avoid damaging internal processor chips. Insert the module horizontally into the designated rack slot and lock the fastening handle to guarantee stable backplane contact.
All signal cables, communication lines and power cables should be routed separately to reduce electromagnetic interference. Finish wiring inspection before power-on. Connect TriStation software to download safety control logic and confirm network parameters.
Carry out fault simulation testing: verify voting mechanism response, alarm output and SOE recording function. Confirm communication data exchange between the processor and upper monitoring system works normally.
After commissioning acceptance, add the module into regular maintenance plans. Periodically check rack ventilation, surface dust accumulation and system fault logs to sustain long-term stable safety control performance.

Main Application Fields

Oil & Gas Production Facilities

Emergency shutdown control for offshore platforms, refineries and gas processing plants.

Thermal & Combined Cycle Power Plants

Turbine protection, boiler safety interlock and generator auxiliary safety control systems.

Chemical & Petrochemical Plants

Process safety monitoring, ESD and fire-gas linkage control for high-risk production units.

Metallurgical Heavy Industry

Safety interlock protection for high-temperature furnaces and continuous production lines.

Safety System Retrofit & Spare Part Replacement Projects

Direct hardware replacement for existing Tricon Tricon racks, compatible with original cabinet layout and secondary wiring.
