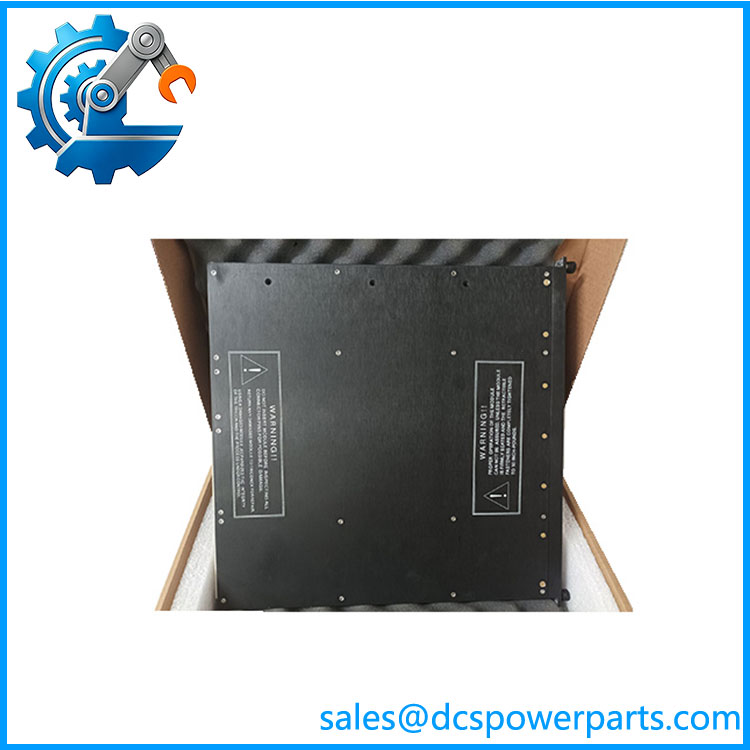

TRICON 3721 (Triconex Analog Input Module)

3721 Specifications
This section includes specifications for model 3721, which is a TMR Analog Input Module with a voltage range of 0 to 5 VDC or -5 to +5 VDC. The 3721 module can be installed only in Tricon v10.2 and later systems.

1. Product Features

1. TMR Triple Modular Redundant Architecture

   Built with three independent parallel acquisition circuits adopting 2-out-of-3 voting logic. Single component failure cannot trigger system error or false shutdown, eliminating single-point failure risks for safety loops.

2. High Precision Analog Signal Acquisition

   32 differential DC-coupled input channels; supports programmable 12-bit /14-bit resolution. Accuracy reaches less than 0.15% full scale, ensuring stable and reliable collection of pressure, temperature, flow and level signals.

3. Complete Built-in Online Diagnostics

   Continuously monitor open circuit, short circuit and internal module faults for each channel. Visual LED status indicators display PASS/FAULT status; faulty channels can be isolated without interrupting overall system operation.



   3721

4. Hot-Swappable Design

   Supports online insertion and removal without shutting down the Tricon chassis. Modules can be replaced during production operation to minimize plant downtime.

5. SIL 3 Safety Certification

   Certified to IEC 61508 SIL 3, fully compliant with international functional safety standards, applicable to Safety Instrumented System (SIS), ESD emergency shutdown safety loops.

6. Strong Electromagnetic Isolation & Protection

   Equipped with channel-to-channel isolation and field-to-system isolation, built-in overvoltage protection, excellent anti-EMI performance, adaptable to harsh industrial control environments.

7. Seamless System Compatibility

   Fully matched with Tricon main controllers (V10.2 and above). Configurable via TriStation 1131 software, supporting channel scaling, digital filtering and burnout detection.

8. Robust Industrial Hardware Structure

   Wide operating temperature range, shock and vibration resistance, suitable for continuous 24/7 long-term operation in process industries.

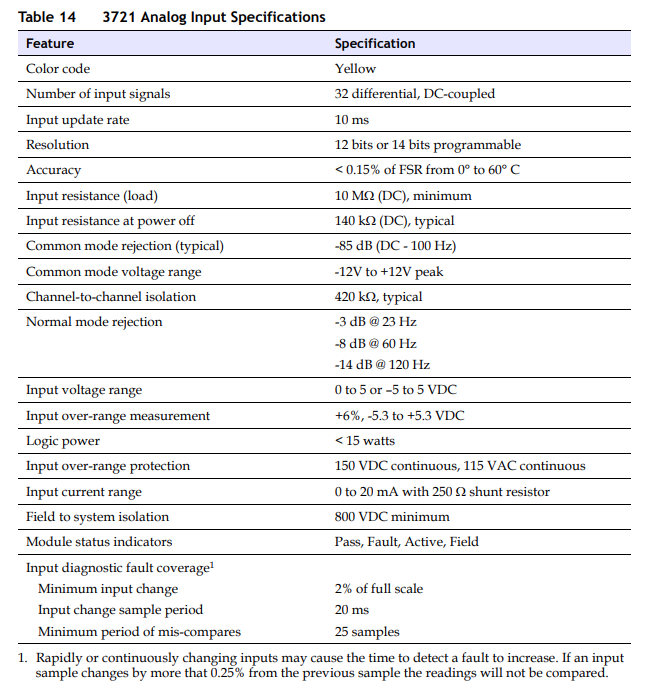

2. Product Parameters

3. Product Operation Instructions

1. ESD Protection & Installation

   Wear anti-static wristband before handling. Insert the module into the idle slot of Tricon main chassis or extended chassis, fasten front panel captive screws. The backplane key prevents reverse installation.

2. Field Wiring Connection

   Connect field transmitters to external termination panel. The module does not provide loop power; external 24VDC power supply is required for two-wire sensors. Use shielded cables and connect shielding to cabinet ground. Check wiring integrity before power on.

3. Software Configuration

   Launch TriStation 1131 software. Define channel signal type, measuring range, engineering unit scaling, filter parameters, and set burnout detection thresholds for 4–20mA loops. Download configuration to the Tricon controller.

4. Commissioning & Verification

   Power on the chassis. The module runs self-diagnostics automatically, and green PASS LED lights up normally. Calibrate each channel with precision signal source, verify consistency of three TMR channel readings, and clear all fault alarms.

5. Daily Operation Monitoring

   Monitor module and channel status through front panel LED or TriStation diagnostic interface. Regularly check fault logs to discover wiring aging or transmitter abnormality in advance.

6. Online Maintenance Replacement

   The module supports hot swap. Confirm other redundant channels work normally before replacing faulty module. Insert new module steadily, the system will automatically complete synchronization and restore signal acquisition without system shutdown.

7. Troubleshooting

   Red FAULT LED indicates channel or internal failure. Use TriStation diagnostic tools to distinguish field wiring faults or module hardware damage.

4. Application Fields

1. Oil & Gas Industry

   Emergency Shutdown System (ESD), wellhead parameter monitoring, compressor safety interlock, offshore platform SIS safety instrument system, pipeline pressure & flow monitoring.

2. Petrochemical & Chemical Industry

   Reactor temperature and pressure protection, distillation column safety interlock, tank farm level monitoring, fire & gas detection system for refineries and LNG plants.

3. Power Generation Industry

   Steam/gas turbine monitoring, boiler safety protection, generator auxiliary safety loops, combined cycle power plant safety instrument control.

4. Metallurgy & Mining Industry

   Furnace temperature monitoring, rolling mill safety interlock, mine ventilation gas detection and slurry equipment protection.

5. Water Treatment Industry

   Pump station safety control, chemical dosing monitoring, tank level safety interlock, distributed process safety control.

6. Pharmaceutical Manufacturing

   Sterilization cycle monitoring, cleanroom environmental parameter collection, GMP compliant safety interlock control.

7. Other Process Safety Scenarios

   All industrial occasions requiring SIL3 high-reliability analog signal acquisition and fault-tolerant safety control.

Analog Input Modules
0-5 VDC Differential, DC Coupled TMR 3700A 32
0-10 VDC Differential, DC Coupled TMR 3701 32
0-5, 0-10 VDC Differential, Isolated TMR 3703E 16
0-5, 0-10 VDC High-Density, Differential, DC Coupled TMR 3704E 64
Thermocouple Differential, DC Coupled TMR 3706A 32
Thermocouple Differential, Isolated TMR 3708E 16
0–5 VDC Single-Ended TMR 3720 64
0 to 5 or –5 to +5 VDC Differential, DC Coupled TMR 3721 32
Analog Output Modules
4-20 mA Current Loop, DC Coupled TMR 3805E/3805H 8
4-20 mA and 20-320 mA Current Loop, DC Coupled TMR 3806E 6 and 2
–60 to 60 mA BiPolar, Commoned Return, DC Coupled TMR 3807 4
