Description
Product Overview
Triconex 3805E is a Triple Modular Redundant (TMR) Analog Output Module designed for the Tricon Safety Instrumented System (SIS) platform. Manufactured by Triconex (a Schneider Electric brand), 3805E provides high-integrity analog current outputs for safety-critical industrial control applications where reliable actuator control, process regulation, and fault-tolerant signal transmission are required. As a member of the Tricon v9–v11 I/O module family, 3805E is specifically designed to convert digital control commands from Tricon main processors into precise 4–20 mA analog signals for field devices.
Triconex 3805E operates as a TMR analog output interface between the Tricon controller and external field equipment such as control valves, positioners, actuators, and regulating devices. The module receives output data from each of the three independent Tricon processor channels, performs internal voting and diagnostics, and selects the healthy control path to drive the field output. This architecture ensures continued operation even if one channel experiences a hardware fault, making 3805E suitable for SIL-rated safety applications.
Triconex 3805E provides eight analog output points with 12-bit resolution and supports standard 4–20 mA current signals with over-range capability. It incorporates internal loopback monitoring, self-calibration functions, channel diagnostics, and hot-spare replacement capability, allowing maintenance personnel to replace modules without interrupting critical safety functions. 3805E is widely used in oil and gas, petrochemical, power generation, and process industries requiring high availability and dependable analog control output.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 3805E |
| Manufacturer | Triconex (Schneider Electric) |
| Product Type | TMR Analog Output Module |
| System Platform | Tricon Safety Instrumented System (SIS) |
| Module Function | Analog current output interface |
| Output Channels | 8 channels |
| Output Signal Range | 4–20 mA (+6% over-range) |
| Output Type | DC-coupled analog output, common return |
| Resolution | 12 bits |
| Output Accuracy | <0.25% of full-scale range (0–21.2 mA, 0°C to 60°C) |
| Over-range Capability | 2–21.2 mA |
| External Loop Power | +24 VDC nominal, +42.5 VDC maximum |
| Load Capability | Supports up to 1000 Ω depending on loop voltage |
| Failure Switching Time | 10 ms typical, 20 ms maximum |
| Architecture | Triple Modular Redundancy (TMR) |
| Diagnostics | PASS, FAULT, ACTIVE, LOAD, PWR1/PWR2 indicators |
| Hot Spare Support | Supported |
| Module Color Code | Pea green |

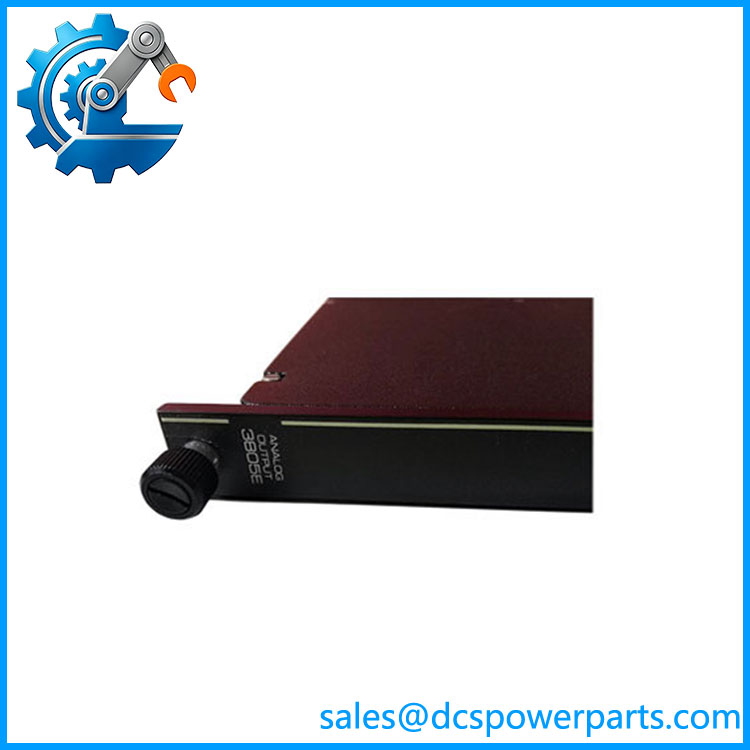

3805E
Main Features and Advantages
Triconex 3805E provides a highly reliable analog output solution for safety-critical automation systems where uninterrupted process control is essential. Its TMR architecture is the core feature of the module, using three independent output processing channels to improve system availability and fault tolerance. If one internal channel develops a problem, the remaining healthy channels maintain control output through the Tricon voting mechanism, preventing a single-point failure from affecting plant operation.
The high-precision 4–20 mA output capability of 3805E makes it suitable for controlling industrial field devices requiring continuous analog adjustment. The module provides eight output points with 12-bit resolution, allowing accurate regulation of valves, dampers, actuators, and other process control equipment. The output accuracy of less than 0.25% ensures stable and repeatable signal performance across demanding operating conditions.
One of the major advantages of Triconex 3805E is its integrated diagnostic capability. Each output channel includes monitoring functions that verify output signal integrity and detect abnormal conditions such as open loops, channel mismatches, or hardware faults. The module continuously monitors its own operation and provides status information through front-panel indicators and Tricon system diagnostics.
Triconex 3805E supports external loop power operation, allowing flexible connection to different field devices and actuator systems. Its protected output design provides improved resistance against electrical faults and field wiring problems, helping protect the safety controller from external disturbances.
The module also supports online maintenance strategies through hot-spare capability. A replacement 3805E module can be prepared and installed with minimal disruption to the running safety system, reducing plant downtime and improving maintenance efficiency.
Compared with conventional PLC analog output modules, Triconex 3805E offers a higher level of fault tolerance and diagnostic coverage. It is specifically engineered for safety instrumented applications where reliability, availability, and predictable behavior are more important than simple signal conversion.
The combination of TMR technology, accurate current output, comprehensive diagnostics, and long lifecycle support makes 3805E a dependable choice for critical industrial safety and control applications.
Applications
Triconex 3805E is widely used in Safety Instrumented Systems (SIS) where analog control outputs are required for critical process equipment. In oil and gas facilities, 3805E is commonly installed in emergency shutdown systems, compressor protection systems, and process control applications where reliable actuator control is essential.
In petrochemical and chemical plants, Triconex 3805E provides analog outputs for regulating control valves, pressure control devices, flow control equipment, and other process actuators. Its fault-tolerant architecture helps maintain safe plant operation during equipment failures or abnormal process conditions.
Power generation facilities use 3805E in turbine auxiliary systems, boiler control applications, and balance-of-plant safety systems. The module provides reliable analog signals for equipment requiring continuous adjustment and precise control.
In refining and offshore production environments, 3805E supports critical automation functions including shutdown valves, process regulation loops, and safety-related actuator control. The module’s high availability design makes it suitable for installations where unexpected downtime can cause significant operational or safety risks.
Industrial manufacturing plants also use Triconex 3805E in specialized process control systems requiring SIL-certified automation platforms. Its compatibility with Tricon SIS architectures allows integration into existing safety systems without major redesign.
Typical application areas include:
- Safety Instrumented Systems (SIS)
- Emergency shutdown systems (ESD)
- Oil and gas production facilities
- Petrochemical processing plants
- Power generation systems
- Turbine control applications
- Compressor control systems
- Process valve regulation
- Critical industrial automation systems
