Description
Product Introduction
The National Instruments cFP-DI-304 is a 32-channel digital input module designed for the Compact FieldPoint distributed I/O platform. It provides a high-density interface for monitoring discrete DC signals from field devices and transmitting their states to the Compact FieldPoint controller. The module is intended for applications where many ON/OFF signals must be collected through a single FieldPoint I/O node.
The cFP-DI-304 is designed around nominal 24 VDC industrial signals, with an input operating range of approximately 11–30 VDC. Its 32-channel density makes it useful for machine status monitoring, interlocks, limit switches, pushbuttons, auxiliary contacts, and other discrete signals. Each input is electrically conditioned so the controller can reliably distinguish the field device’s ON and OFF states.
As with other Compact FieldPoint modules, the cFP-DI-304 requires the appropriate FieldPoint terminal base and controller/network interface. For a legacy installation, the complete FieldPoint architecture should be checked before replacing the module. A module with the same channel count but different input thresholds, wiring arrangement, or isolation characteristics should not automatically be treated as an equivalent replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | National Instruments |
| Model | cFP-DI-304 |
| Part Number | 777318-304 |
| Platform | Compact FieldPoint |
| Product Type | Digital Input Module |
| Number of Channels | 32 |
| Signal Type | DC Digital Input |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | Approximately 11–30 VDC |
| Input Threshold | Approximately 8 V |
| Input Impedance | Approximately 3.3 kΩ |
| Input Isolation | Channel-to-channel / channel-to-bus isolation |
| Field Wiring | Verify terminal-base configuration |
| Operating Temperature | -40 to 70 °C |
| Installation | Compact FieldPoint terminal base |
| Product Status | Legacy / discontinued |
Main Features and Engineering Considerations
High-Density Digital Input
The major advantage of the cFP-DI-304 is its 32-channel configuration. It allows a large number of discrete field signals to be handled through one Compact FieldPoint I/O position, reducing the number of individual modules required in a distributed cabinet.
24 VDC Industrial Signals
The module is intended for common industrial DC control signals. Typical devices include proximity switches, limit switches, relay contacts, pushbuttons, auxiliary contacts, and machine-status signals.
When troubleshooting, the actual voltage at the module terminals should be measured rather than relying only on the upstream power-supply rating. Voltage drops across field wiring, contacts, fuses, or terminal blocks can prevent an input from reaching its ON threshold.

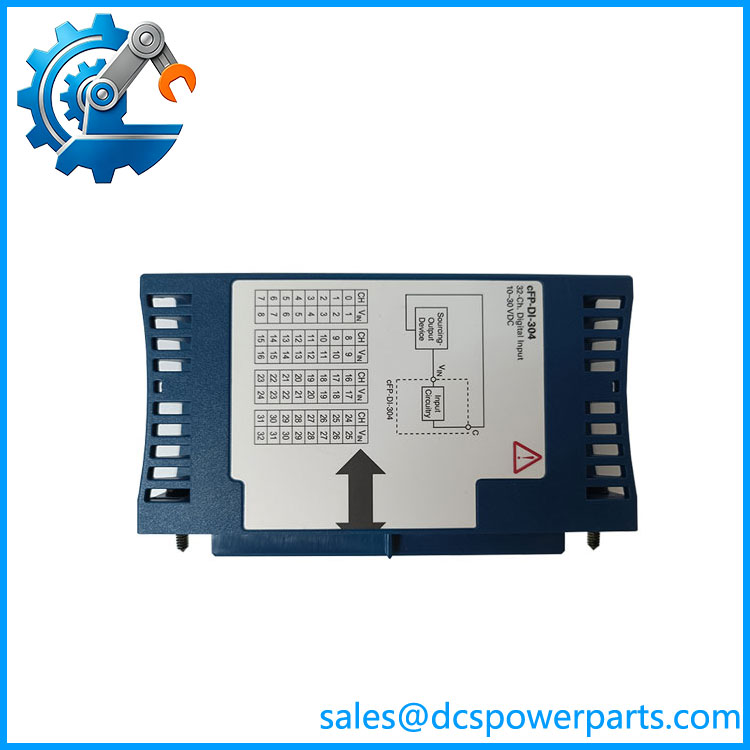

CFP-DI-304
Isolation
Isolation is an important consideration when multiple field circuits are connected to a high-density digital input module. The exact grounding and isolation arrangement should be checked against the original NI installation documentation before modifying field wiring.
Compact FieldPoint Integration
The cFP-DI-304 is designed specifically for the Compact FieldPoint architecture. Its terminal base, controller, network interface, configuration software, and I/O module all form part of the working system.
Application Scenarios
Typical applications include:
- Machine status monitoring
- Industrial sequence control
- Discrete process monitoring
- Motor auxiliary-status monitoring
- Limit-switch monitoring
- Proximity-sensor inputs
- Safety/interlock status monitoring
- Relay-contact monitoring
- Distributed automation I/O
- Legacy Compact FieldPoint systems
Engineer’s Guide: Field Pitfalls
⚠️ Verify the input voltage at the terminals.
A nominal 24 VDC supply does not guarantee that every field input actually receives sufficient voltage.
⚠️ Check input polarity.
DC digital inputs require the field wiring to follow the module’s specified polarity and common-terminal arrangement.
⚠️ Do not confuse DI-304 with an analog input module.
The cFP-DI-304 provides discrete ON/OFF detection. It is not intended to measure continuously varying voltage.
⚠️ Verify isolation requirements.
When field devices are powered from different sources, check the original grounding and isolation scheme before connecting them to a replacement module.
⚠️ Check the terminal base.
The module is part of the Compact FieldPoint system and should be matched to the correct terminal base and installed configuration.
⚠️ Test every channel.
For a refurbished module, checking only the status LEDs is insufficient. Apply representative field voltages to all 32 channels and verify that the controller detects the correct state.
Frequently Asked Questions
What is NI cFP-DI-304?
It is a 32-channel digital input module for National Instruments Compact FieldPoint systems.
What is the NI part number?
777318-304.
What voltage does it use?
It is designed for 24 VDC-class digital signals, with an input range of approximately 11–30 VDC.
How many inputs are available?
There are 32 digital input channels.
Is cFP-DI-304 an analog input module?
No. It is a discrete digital-input module.
What should be checked before purchasing?
- cFP-DI-304
- 777318-304
- 32-channel configuration
- 24 VDC field voltage
- Input threshold
- Terminal-base compatibility
- Isolation arrangement
- Field wiring polarity
- Controller/software compatibility
- All-channel functional test
Procurement note: For an obsolete Compact FieldPoint installation, I would match the exact model and terminal-base configuration rather than substituting a newer digital-input module based only on channel count.
