Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | MTL Instruments / Eaton |
| Model | 8715-CA-BI |
| Product Type | Bus Interface Module Carrier |
| Product Family | MTL 8000 / PAC8000 Process I/O |
| Supported BIM | 8502-BI-DP / 8505-BI-MB |
| Supported Protocols | PROFIBUS-DP / Modbus |
| LAN Connections | 2 × LAN, A and B |
| LAN Connector | 9-pin D-sub, female |
| Electrical Interface | RS-485 / RS-422 |
| Termination | Switchable |
| Carrier Supply | 12.0 VDC ±5% |
| Mounting | DIN rail or flat panel |
| DIN Rail Types | 7.5 × 35 mm, 15 × 35 mm, G-section |
| Dimensions | Approx. 93 × 170 × 35 mm |
| Weight | Approx. 680 g |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95%, non-condensing |
| Hazardous-Area Rating | Zone 2, IIC T4 / Class I, Div. 2, Groups A–D, T4 |
The manufacturer’s legacy documentation identifies 8715-CA-BI as a BIM carrier supporting both Modbus and PROFIBUS-DP, with dual LAN connections and switchable RS-485/RS-422 termination.
Current PAC8000 carrier documentation also identifies the 8715-CA-BI as the BIM-only carrier for 8502-BI-DP and 8505-BI-MB, with a 12.0 VDC ±5% system supply requirement.
Application Scenarios & Pain Points
A failed BIM carrier can create an annoying diagnostic situation: the communication module itself may test correctly on another carrier, while the installed node remains offline. Power distribution, connector condition, or termination configuration becomes the real suspect.
- PROFIBUS-DP process I/O: Install the 8502-BI-DP BIM on the 8715-CA-BI carrier when the node communicates with a PROFIBUS-DP host. The carrier provides the physical LAN connection and termination arrangement.
- Modbus process I/O: The 8505-BI-MB BIM is the appropriate companion for Modbus installations. The carrier itself does not determine the protocol; the installed BIM does.
- Hazardous-area remote I/O: The carrier belongs to the MTL 8000/PAC8000 architecture intended for process applications where hazardous-area approvals and environmental specifications matter.
- Legacy PAC8000 maintenance: Useful when the BIM remains serviceable but the carrier has damaged connectors, termination circuitry, mounting hardware, or power connections.
Field note: Before replacing the carrier, measure the supply at the carrier—not only at the cabinet power supply. A 12 VDC distribution problem several meters upstream can masquerade as a BIM failure.
Brief Field Case
A remote I/O node that repeatedly drops offline may have an apparently healthy BIM. Checking the carrier’s 12 VDC feed and both 9-pin LAN connectors can expose the fault quickly. Then verify the termination switch against the network topology before changing the communication module.

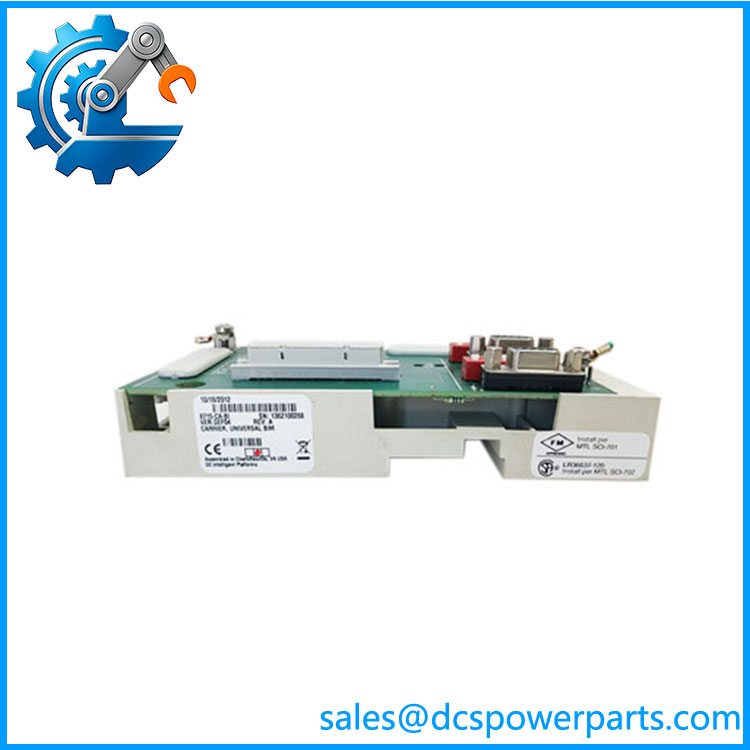

8715-CA-BI
Related Products
- MTL 8715-CA-BI — The subject BIM-only carrier. Supports the 8502-BI-DP and 8505-BI-MB interface modules.
- MTL 8502-BI-DP — PROFIBUS-DP Bus Interface Module installed on the 8715 carrier. Use this combination for PROFIBUS-DP host communication.
- MTL 8505-BI-MB — Modbus Bus Interface Module for the same carrier. Functionally different from 8502-BI-DP because the network protocol changes.
- MTL 8718-CA-NS — BIM and Node Services carrier. Unlike the 8715, it accommodates a BIM plus a Node Services Module, making it appropriate when additional node-level services are required.
- MTL 8712-CA-NS — Node Services carrier intended for PROFIBUS configurations. It has a different carrier function and should not be substituted simply because it also uses PROFIBUS.
- MTL 8711-CA-NS — Node Services carrier for Modbus installations. It serves a different node architecture from the BIM-only 8715 carrier.
- MTL 8717-CA-PS — Power-supply carrier for the 8910-PS-DC. It belongs to the same carrier family but performs power-supply rather than BIM functions.
- MTL 8707-CA-08 — Eight-module I/O carrier used elsewhere in the PAC8000 architecture. It is a module carrier rather than a BIM carrier.
The Engineer’s Guide: Field Pitfalls to Avoid
WARNING 1 — Do not order the BIM when you actually need the carrier.
8715-CA-BI is the carrier. The actual communication BIM is separately identified as 8502-BI-DP for PROFIBUS-DP or 8505-BI-MB for Modbus.
How to avoid it: Photograph the entire assembly before removal and identify both the carrier and plug-in BIM separately.
WARNING 2 — Check the termination setting before commissioning.
The carrier provides switchable RS-485/RS-422 termination options.
How to avoid it: Record the switch position before replacement. On a multidrop network, incorrect termination can produce intermittent communication faults that look like a bad BIM.
WARNING 3 — Do not substitute the power supply based on “12 V” alone.
The specified carrier supply is 12.0 VDC ±5%.
How to avoid it: Check voltage at the carrier under operating load. Also inspect the external power connector and wiring for loose terminals or heat damage.
Frequently Asked Questions (FAQ)
What is MTL 8715-CA-BI used for?
The 8715-CA-BI is a Bus Interface Module carrier used in the MTL 8000/PAC8000 process I/O architecture. It provides the mounting, power, LAN, and termination interface for a compatible BIM.
It does not itself provide the PROFIBUS-DP or Modbus protocol processing; that function resides in the installed BIM.
Which BIM modules fit the 8715-CA-BI?
Two primary compatible BIMs are documented:
- 8502-BI-DP — PROFIBUS-DP
- 8505-BI-MB — Modbus
The carrier is intentionally shared between these two protocol options.
Does 8715-CA-BI support redundant LAN connections?
It provides two LAN connections, A and B, using 9-pin D-sub connectors. The exact redundancy or network arrangement depends on the BIM and system configuration.
Do not assume that two physical connectors automatically mean two independent communication channels.
What power supply does the 8715-CA-BI require?
The carrier specification calls for 12.0 VDC ±5%, supplied through the external power connector.
When troubleshooting, measure this voltage at the carrier while the BIM and I/O system are operating. No-load measurements at the cabinet power supply can hide wiring or distribution problems.
Can I use an 8718-CA-NS instead of an 8715-CA-BI?
Not as a direct substitution without checking the system design. The 8718-CA-NS accommodates a BIM plus a Node Services Module, while the 8715 is specifically a BIM carrier.
The additional hardware changes the physical and functional arrangement of the node.
Is the 8715-CA-BI suitable for hazardous-area applications?
The documented carrier specification identifies use in Zone 2, IIC T4 hazardous areas or Class I, Division 2, Groups A–D, T4 locations, subject to the complete system installation and applicable certification requirements.
Do not treat the carrier’s rating as approval for an arbitrary installation. The complete node, power supply, wiring method, enclosure, and installation method must satisfy the applicable hazardous-area requirements.
What should I request when buying a replacement 8715-CA-BI?
For a production spare, request:
- Exact 8715-CA-BI label photograph.
- Rear and connector photographs.
- BIM compatibility confirmation.
- 12 VDC power-path test.
- LAN A/B continuity check.
- RS-485/RS-422 termination-switch inspection.
- DIN-rail mounting inspection.
- Connector-pin inspection.
- Corrosion/contamination inspection.
- Written test report and warranty.
For a used unit, pay particular attention to the 9-pin D-sub connectors and power connector. Physical damage there can be more consequential than superficial marks on the carrier housing.
