Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 8502-BI-DP |
| Manufacturer | MTL Instruments / Eaton MTL |
| Product Series | MTL 8000 I/O System |
| Product Type | Bus Interface Module (BIM) |
| Communication Protocol | PROFIBUS-DP |
| Network Standard | EN50170 PROFIBUS |
| Interface Standard | RS-485 |
| Supported I/O Modules | Up to 24 modules |
| Maximum Communication Speed | Up to 6 Mbaud |
| Data Exchange Method | Cyclic PROFIBUS communication |
| HART Support | HART process and status variables over PROFIBUS-DP |
| Diagnostics | Extended module and channel diagnostics |
| Configuration Memory | Non-volatile configuration storage |
| Configuration Method | Local port or PROFIBUS host configuration |
| Installation Type | MTL 8000 node mounting system |
| Typical Application | Remote I/O communication in PLC/DCS systems |
Application Scenarios & Pain Points
A failed communication gateway can stop hundreds of field signals from reaching the control room. The process may still run locally, but operators lose visibility, alarms disappear, and troubleshooting becomes slower.
Typical applications:
- Process Automation Plants: Used as the communication bridge between distributed field I/O modules and PROFIBUS-based PLC or DCS controllers.
- Chemical and Petrochemical Facilities: Handles remote analog and digital signal collection where HART device information is required alongside process values.
- Power Generation Systems: Supports remote instrumentation networks for monitoring auxiliary systems and plant equipment.
- Manufacturing Automation: Connects decentralized I/O stations to supervisory control systems.
Field note: A production unit experienced loss of several remote signals after a network interruption. The PLC program was unchanged, and field devices checked normal. The issue was traced to the bus interface module. After replacing the 8502-BI-DP and restoring the PROFIBUS configuration, communication returned without replacing the I/O modules.

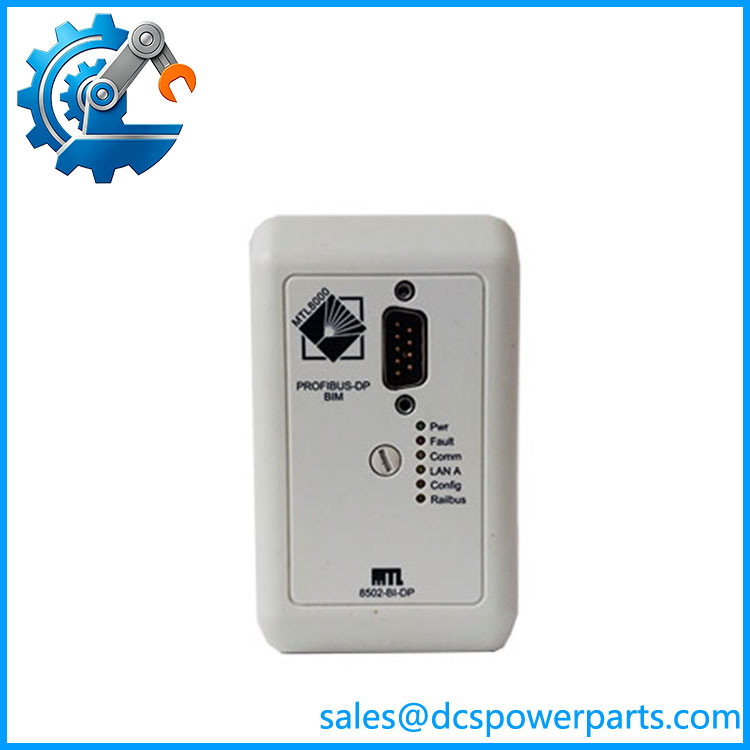

8502-BI-DP
Related Products
- MTL 8000 Series I/O Modules — Field-level analog and digital input/output modules connected behind the 8502-BI-DP. Used for signal acquisition and control output.
- MTL 8510-NS-MO — Node Services Module used for MTL 8000 system maintenance and configuration support. Suitable for commissioning and service tasks.
- MTL 8455-SW-CF Software — Configuration software used for setting up MTL 8000 modules and communication parameters.
- MTL 8501-BI — Alternative bus interface module variant for different host communication requirements. Used where PROFIBUS-DP is not required.
- MTL 8910-PS-DC — Power supply module supporting MTL system installations. Used to provide stable system power for I/O nodes.
- PROFIBUS-DP Master Communication Modules — PLC/DCS communication interfaces that exchange data with the 8502-BI-DP slave node.
- MTL 8000 Carrier Assembly — Mechanical and electrical mounting platform supporting the I/O modules and BIM installation.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ PROFIBUS Address Mismatch
A replacement BIM may power up correctly but remain invisible to the master because the slave address does not match the original configuration.
How to avoid: Record the original PROFIBUS address and verify hardware/software addressing before connecting to the network.
⚠️ Incorrect GSD Configuration
The PLC/DCS may report configuration errors if the module structure differs from the expected I/O arrangement.
How to avoid: Confirm the installed I/O module order and rebuild the PROFIBUS configuration using the correct GSD file.
⚠️ Railbus and Backplane Contact Issues
Communication faults are sometimes caused by poor mechanical connections rather than a failed BIM.
How to avoid: Inspect connector contacts for dust, oxidation, or damaged pins before installation.
Frequently Asked Questions (FAQ)
What is the main function of the MTL 8502-BI-DP?
The 8502-BI-DP is a Bus Interface Module that connects MTL 8000 series I/O modules to a PROFIBUS-DP host controller, allowing field data exchange and diagnostic reporting.
Can the 8502-BI-DP connect directly to a PLC?
Yes, when the PLC has a compatible PROFIBUS-DP master interface. The BIM operates as a PROFIBUS slave and exchanges configured process data with the master system.
How many I/O modules can one 8502-BI-DP support?
The module supports up to 24 MTL 8000 series I/O modules, depending on the system configuration.
Does the 8502-BI-DP support HART communication?
Yes. It can transfer HART process values and status information through PROFIBUS-DP communication.
Why does a replacement 8502-BI-DP fail to communicate?
Common causes include:
- Incorrect PROFIBUS address
- Wrong GSD configuration
- Incorrect baud rate
- Different I/O module arrangement
- Network termination problems
What should be checked before purchasing an 8502-BI-DP?
Recommended checks:
- Complete model number
- Existing PROFIBUS network speed
- PLC/DCS master type
- Connected MTL 8000 modules
- Original configuration backup
- Firmware or hardware revision
Is a refurbished MTL 8502-BI-DP suitable for industrial operation?
A tested refurbished unit can be suitable when it passes power-up testing, PROFIBUS communication checks, configuration verification, and compatibility testing with the installed MTL 8000 I/O system.
