  • Model: 8521-TC-SA
  • Manufacturer: Measurement Technology / MTL
  • Product Family: MTL8000 / MTL8521
  • Core Function: Ethernet bus interface for the MTL8000 distributed I/O architecture.
  • Type: Ethernet Bus Interface
  • Configuration: 8521-TC-SA
  • Known Revision: Rev A is documented in equipment inventory records.
  • System Role: Network interface rather than a standalone thermocouple or analog I/O module.
Add To Quote
Category: SKU: MTL 8521-TC-SA

Description

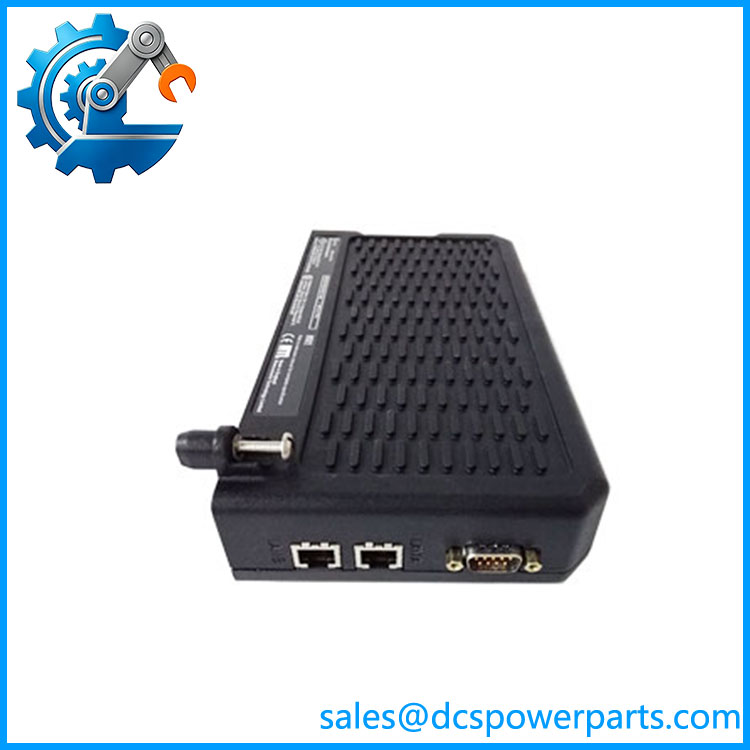

Measurement Technology 8521-TC-SA | MTL8000 Ethernet Bus Interface | MTL8521



Key Technical Specifications

Parameter Specification
Manufacturer Measurement Technology / MTL
Model 8521-TC-SA
Product Family MTL8000
Functional Designation MTL8521
Module Type Ethernet Bus Interface
Known Hardware Revision Rev A
System Architecture MTL8000
Primary Function Ethernet bus/network interface
Exact Ethernet Speed Verify from OEM documentation/nameplate
Exact Connector Type Verify from installed hardware
Supply Voltage Verify from OEM documentation
I/O Channel Count Not applicable as a conventional I/O module
Thermocouple Inputs Not established
Modbus TCP Not established
Operating Temperature Verify from OEM documentation

The available traceable evidence is sufficient to identify the functional role as an MTL8000 Ethernet Bus Interface, but not sufficient to safely publish detailed electrical specifications. That distinction is important because several current listings provide mutually incompatible specifications for the same part number.



Product Introduction

MTL8000 Ethernet Bus Interface

The Measurement Technology 8521-TC-SA is associated with the MTL8000 distributed I/O platform and is identified as an MTL8521 Ethernet Bus Interface. Its role is communications infrastructure: it connects the I/O architecture to the higher-level network rather than functioning as an ordinary analog or digital signal card.

This distinction matters when replacing legacy hardware. The model number is sometimes incorrectly cataloged as a thermocouple module or generic control module, but the strongest identifiable equipment record describes it specifically as an Ethernet bus interface.

8521-TC-SA

Application Scenarios & Field Pitfalls — Engineer’s Perspective

Engineering Pain Point

The primary risk with the 8521-TC-SA is part-number misidentification. Search results currently contain at least three incompatible descriptions: Ethernet bus interface, thermocouple input module, and generic GE control/eBIM hardware.

For a legacy installation, the system architecture and physical board markings should therefore take priority over reseller-generated specifications.

Typical Applications

  • Distributed I/O — Network interface for an I/O installation.
  • Industrial Process Instrumentation — Communications between distributed field I/O and the supervisory/control network.
  • Legacy Automation Cabinets — Replacement of an installed MTL8521 interface.
  • Maintenance Spares — Retention of a tested interface for systems where the original hardware remains in service.

Technical Pitfalls to Avoid

1. Do not buy it as a thermocouple input card.
The strongest identifiable record calls the 8521-TC-SA an Ethernet Bus Interface, while another current listing incorrectly describes it as an eight-channel thermocouple module.

2. Do not assume GE is the original manufacturer.
Several listings place the part under GE, but the specific equipment record identifies Measurement Technology as the manufacturer and as the product family.

3. Verify the complete system before substitution.
Check the node configuration, network architecture, connector arrangement, board revision, and firmware/configuration requirements. A visually similar communications board is not automatically interchangeable.

4. Treat communication specifications as unverified until the manual is matched.
Claims of Modbus TCP, 100 Mbps Ethernet, 32 I/O modules, IP65, and specific dimensions appear in current listings, but these claims are not corroborated by the stronger MTL8521 identification available for this exact part number.



Related Products

  • MTL8521 — Functional designation associated with the 8521-TC-SA Ethernet bus interface.
  • — Distributed I/O platform in which the 8521 interface is used.
  • 8521-TC-SA Rev A — Documented hardware revision; revision matching is recommended for replacement.
  • — Field I/O components connected through the architecture.
  • network interface hardware — Related communications hardware should be matched by the complete part number and system configuration.



Procurement Guidance

For a Measurement Technology 8521-TC-SA, request these details before approving a replacement:

  • Complete part number
  • Hardware revision
  • Manufacturer marking
  • marking, if present
  • host/rack configuration
  • Connector photographs
  • Network interface type
  • Firmware/configuration information
  • Existing system drawing
  • Condition: new surplus, used-tested, or repaired

Engineering recommendation: identify this part as an Ethernet Bus Interface / , not as a generic GE I/O module. The available evidence is strong enough to establish its communications role, but not strong enough to justify publishing detailed voltage, Ethernet speed, channel count, or environmental specifications without the original MTL documentation or a clear nameplate photograph.
