MTL 8920-PS-DC | IS Module Power Supply | Troubleshooting Redundant I/O Power

Key Technical Specifications

The OEM datasheet identifies the 8920-PS-DC as an IS module power supply for 2/1 intrinsically safe modules, with a nominal 24 VDC input, 12 VDC system output, 5A capacity, and load-sharing capability for redundant arrangements.

Certification documentation gives the more precise safety architecture: the unit accepts 18–36 VDC, provides a galvanically isolated and voltage-clamped 18 V source, incorporates triplicated crowbar protection with a 5A fuse, and provides P-Fail and P-Share control lines.

8920-PS-DC

Product Introduction

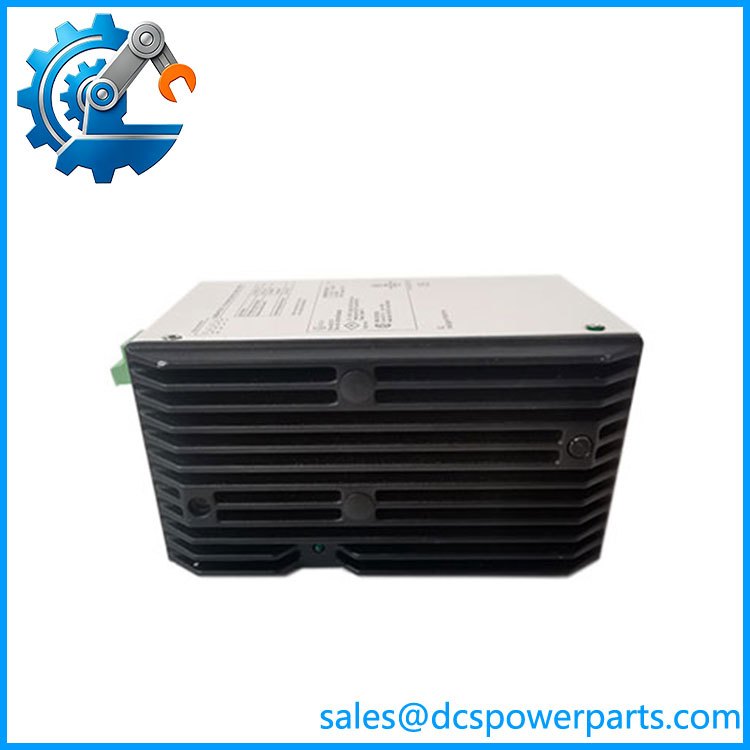

MTL 8920-PS-DC IS Module DC Power Supply

The MTL 8920-PS-DC is an MTL8000 DC power-supply module designed to power intrinsically safe 2/1 I/O modules through the MTL8000 carrier system. It accepts an 18.5–36 VDC supply and provides the isolated, voltage-limited power required by the IS I/O bus. The module mounts through the 8724-CA-PS carrier arrangement.

The engineering advantage is redundancy support. Multiple 8920-PS-DC units can share the Railbus load, with an additional supply used for redundancy. MTL documentation states that one supply typically powers eight 2/1 I/O modules, making the module a key component when maintaining distributed intrinsically safe I/O installations.

Application Scenarios & Field Pitfalls

Engineering Pain Point

Power-supply faults in hazardous-area I/O systems are easy to misdiagnose. An engineer may see several I/O modules dropping offline and immediately suspect the Railbus, BIM, or field wiring. With the 8920-PS-DC, the first checks should include input voltage, the supply’s P-Fail/P-Share status, total I/O loading, and the redundancy arrangement. A degraded power supply can affect several modules simultaneously even though the individual I/O cards remain healthy.

Typical Applications

• Oil & Gas — Intrinsically safe transmitter and discrete I/O in hazardous process areas.
• Petrochemical — 2/1 IS field instrumentation connected through MTL8000 carrier systems.
• Chemical Processing — Hazardous-area process monitoring and control signals.
• Power & Utilities — Distributed IS instrumentation where redundant I/O power is required.

Technical Pitfalls to Avoid

1. Do not confuse the 12 V system output with a conventional 12 V field power supply.
   The 8920-PS-DC is designed specifically for the MTL8000 IS I/O architecture. Its output is galvanically isolated and voltage clamped, with the protection characteristics required by the associated intrinsically safe system.
2. Check the input range before energizing the replacement.
   The specified DC input range is 18–36 VDC. A nominal 24 VDC plant supply is appropriate, but the actual voltage at the power-supply terminals should be measured under load.
3. Account for the complete load when adding redundancy.
   The 8920-PS-DC supports load sharing, and MTL states that an additional unit can be inserted when redundant power is required. Do not assume that two supplies automatically provide adequate redundancy if the total Railbus load exceeds the available capacity.
4. Use the correct carrier.
   The 8920-PS-DC is designed for the 8724-CA-PS IS Module Power Supply Carrier. The carrier is part of the electrical architecture, not merely a mechanical mounting bracket.
5. Check certification against the installation location.
   Hazardous-area approvals are configuration- and installation-dependent. The OEM certificate specifies particular parameters, including the 18–36 VDC input and Um segregation requirements. Do not infer certification from the model number alone.

Related Products

• MTL 8724-CA-PS — Dedicated IS module power-supply carrier for the 8920-PS-DC. It provides the mechanical and electrical carrier interface and distributes the isolated power, P-Fail, P-Share, data, and control connections.
• MTL 8913-PS-AC — AC system/field power supply in the MTL8000 family. It serves AC-input applications and is functionally different from the DC-input 8920-PS-DC.
• MTL 8914-PS-AC — Field power-supply unit for installations. It is intended for field power rather than the dedicated IS module-power role of the 8920-PS-DC.
• MTL 8725-CA-RB — Railbus isolator carrier with power-fail monitoring. It is complementary carrier hardware for separating and monitoring Railbus segments rather than replacing the 8920-PS-DC.
• MTL 8922-RB-IS — Railbus signal isolator for IS systems. Its role is signal isolation on the Railbus, while the 8920-PS-DC supplies the required module power.
• MTL 8101-HI-IS — IS analog input module used with systems. It represents the field I/O load that the 8920-PS-DC supplies through the carrier architecture.
• MTL 8220-DI-IS — 16-channel IS digital-input module. It is another compatible I/O load within the architecture rather than a substitute for the power supply.
• MTL 8125-DI-DC — 32-channel NAMUR digital-input module. It provides significantly higher discrete-input density, but its application and power requirements must be assessed separately from the 2/1 IS architecture.
• MTL 8507-BI-DP — PROFIBUS Bus Interface Module used for communication between the I/O system and PROFIBUS networks. It complements the I/O architecture but does not provide module power.

Procurement note: The 8920-PS-DC is a legacy/discontinued component. MTL’s current product page explicitly marks the 8000 2/x power-supply range as discontinued, while retaining technical documentation for reference.

For a plant replacement, verify 8920-PS-DC → 8724-CA-PS carrier → connected IS I/O modules, then check the DC input range, total Railbus load, redundancy arrangement, and hazardous-area certification. Do not substitute a conventional 24 VDC industrial power supply for this module simply because the nominal input voltage looks similar.
