MTL 8103-AI-TX Analog Input Module Product Description
Product Overview
MTL 8103-AI-TX is an 8-channel analog input module designed for the MTL8000 distributed I/O system, providing accurate acquisition of 4–20 mA current signals from industrial field transmitters. As a core analog signal acquisition component in distributed control systems (DCS), programmable logic controller (PLC) systems, and process automation networks, MTL 8103-AI-TX converts field transmitter signals into digital process data and transfers measurement information to the host control system through the MTL8000 Railbus communication architecture.
The MTL 8103-AI-TX supports eight independent single-ended analog input channels and is designed for connection with both 2-wire and 4-wire 4–20 mA transmitters. The module provides reliable measurement of process variables such as pressure, temperature, flow, level, and other industrial parameters. Through integrated signal conditioning, configurable alarms, input filtering, and fault detection functions, MTL 8103-AI-TX enables stable and precise data acquisition for demanding industrial applications.
As part of the MTL8000 modular I/O family, MTL 8103-AI-TX offers a compact and flexible solution for hazardous and non-hazardous industrial environments. The module is optimized for applications requiring high signal density, reliable field interface capability, and simplified maintenance. Its compatibility with MTL Railbus-based architectures makes MTL 8103-AI-TX an ideal choice for process plants, energy facilities, oil and gas installations, and other automation systems requiring dependable analog input performance.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 8103-AI-TX |
| Manufacturer | MTL (Eaton / Emerson Industrial Automation) |
| Product Type | Analog Input Module |
| Product Series | MTL8000 I/O System |
| Input Channels | 8 single-ended analog input channels |
| Input Signal Type | 4–20 mA current input |
| Transmitter Compatibility | 2-wire and 4-wire transmitters |
| HART Communication | Not supported |
| Signal Range | 1–23 mA full range |
| Input Resolution | 16-bit analog-to-digital conversion |
| Accuracy | ±0.1% of span over temperature range |
| Repeatability | 0.05% of span |
| Input Isolation | Channel to Railbus: 100 VAC |
| Response Time | ≤27 ms signal change to Railbus availability |
| Field Power Supply | 24 VDC bus power required |
| Railbus Current Consumption | 100 mA typical, 150 mA maximum |
| Module Width | 42 mm |
| Weight | Approx. 200 g |
| Installation Method | MTL8000 Railbus carrier mounting |
Main Features and Advantages
High-density analog signal acquisition:
The primary advantage of MTL 8103-AI-TX is its eight-channel analog input capability, allowing multiple field transmitters to be connected through a single compact module. This high channel density reduces cabinet space requirements and simplifies the design of distributed control systems.
Accurate 4–20 mA measurement:
MTL 8103-AI-TX is optimized for the industrial-standard 4–20 mA signal range widely used in process automation. It provides accurate conversion of transmitter current signals into digital values, ensuring reliable monitoring of critical process parameters such as pressure, temperature, flow, and liquid level.

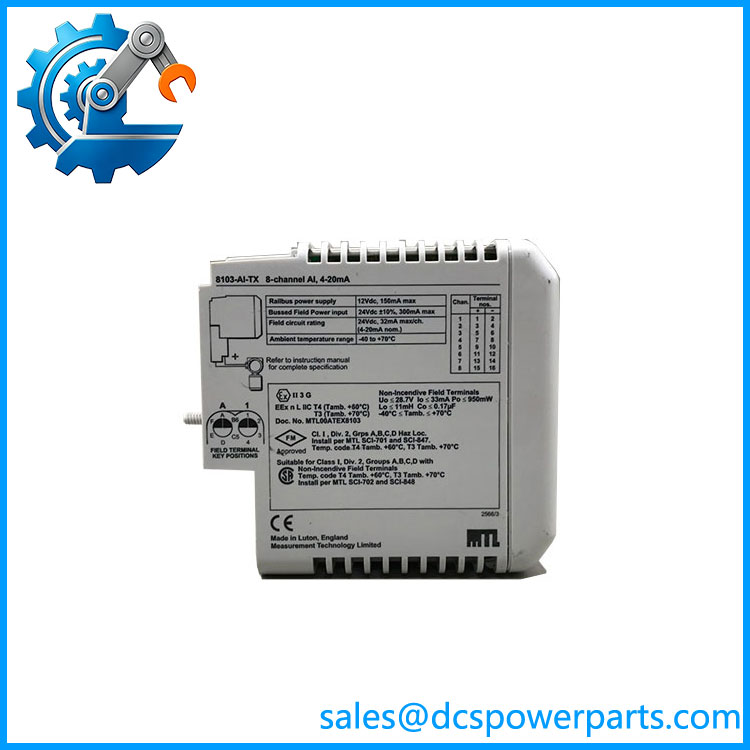

8103-AI-TX
Flexible transmitter compatibility:
The module supports both 2-wire and 4-wire transmitters, providing flexibility for different field instrumentation designs. With MTL 8103-AI-TX, engineers can integrate various analog measurement devices into a unified MTL8000 control architecture without requiring additional signal converters.
High-resolution data conversion:
Equipped with 16-bit analog-to-digital conversion capability, MTL 8103-AI-TX provides detailed measurement resolution for industrial process monitoring. This improves control accuracy and allows automation systems to detect small variations in process conditions.
Integrated diagnostic functions:
MTL 8103-AI-TX includes input monitoring functions such as open circuit and short circuit detection. These diagnostic capabilities help maintenance personnel quickly identify field wiring problems, transmitter failures, or abnormal signal conditions.
Configurable alarm management:
The module supports configurable high, high-high, low, and low-low alarms. Through these functions, MTL 8103-AI-TX can provide early warning of abnormal process conditions and improve operational safety.
Reliable Railbus communication:
The MTL8000 system uses a dedicated Railbus communication structure for connecting I/O modules with the bus interface module. MTL 8103-AI-TX provides fast and reliable data transmission between field devices and the control system, supporting real-time process monitoring.
Compact modular installation:
The modular design of MTL 8103-AI-TX allows quick installation, replacement, and expansion within MTL8000 systems. This reduces engineering effort and simplifies long-term maintenance activities.
Application Areas
Oil and Gas Automation:
MTL 8103-AI-TX is widely used in oil and gas production facilities, refineries, and pipeline systems where reliable acquisition of transmitter signals is required. It can collect measurements from pressure transmitters, flow meters, level transmitters, and other field instruments.
Chemical and Petrochemical Plants:
Chemical processes require continuous monitoring of operating parameters. MTL 8103-AI-TX provides accurate analog input acquisition for reactors, storage systems, pumps, and process control equipment, helping maintain stable production conditions.
Power Generation Systems:
Power plants rely on distributed control systems for monitoring boilers, turbines, auxiliary equipment, and energy processes. MTL 8103-AI-TX provides dependable analog signal collection for various field measurement devices.
Water and Wastewater Treatment:
Water treatment facilities use many analog instruments to monitor flow, pressure, chemical concentration, and equipment operation. MTL 8103-AI-TX supports reliable connection between field transmitters and centralized automation systems.
Manufacturing Automation:
In industrial production lines, MTL 8103-AI-TX enables integration of analog sensors and transmitters into PLC and DCS architectures. It supports applications requiring accurate measurement and process feedback.
Industrial Retrofit Projects:
For existing MTL8000 installations, MTL 8103-AI-TX provides an effective replacement and expansion option. It allows users to maintain existing automation structures while improving system reliability and availability.
