Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 8507-BI-DP |
| Manufacturer | MTL Instruments / Eaton |
| Product Type | PROFIBUS-DP Bus Interface Module (BIM) |
| Compatible System | MTL8000 / PAC8000 I/O System |
| Communication Protocol | PROFIBUS-DP (EN 50170) |
| Transmission Speed | 9.6 kbps to 12 Mbps |
| Maximum I/O Modules Supported | Up to 24 I/O modules |
| Interface Standard | RS-485 PROFIBUS interface |
| Power Supply | Railbus power from carrier system |
| Communication Isolation | PROFIBUS-to-Railbus-to-power isolation |
| Maximum Bus Segment Length | Up to 1200 m at lower baud rates; reduced at higher speeds |
| Input Data Capacity | Up to 240 bytes |
| Output Data Capacity | Up to 240 bytes |
| Diagnostic Data | PROFIBUS extended diagnostics |
| Mounting Method | DIN rail with BIM carrier |
| Redundancy Support | Available with compatible redundant BIM carrier |
| Operating Environment | Industrial cabinet installation |
| Typical Applications | Process control, hazardous area I/O, remote signal acquisition |
Application Scenarios & Pain Points
A shutdown caused by lost remote I/O communication can consume hours of troubleshooting time. The difficult part is rarely replacing the module itself; it is proving that the replacement matches the existing network parameters, carrier hardware, and PROFIBUS configuration.
Typical applications:
- Oil & Gas Facilities: Used as the communication link between PAC8000 field I/O modules and centralized DCS systems for valve feedback, pressure monitoring, and process signals.
- Chemical Processing Units: Supports distributed signal collection where cabinet space, hazardous area requirements, and remote installation locations influence system design.
- Power Generation Plants: Applied in auxiliary control systems requiring dependable PROFIBUS communication between remote I/O stations and plant controllers.
- Water Treatment Systems: Handles remote digital and analog signal transfer from pumps, analyzers, and motor control equipment.
Field case: A process plant experienced intermittent PROFIBUS dropouts after replacing an aging BIM. The replacement hardware was correct, but the PROFIBUS address switch and configuration file did not match the original setup. After restoring the node parameters and checking the carrier connection, the rack returned to normal operation.

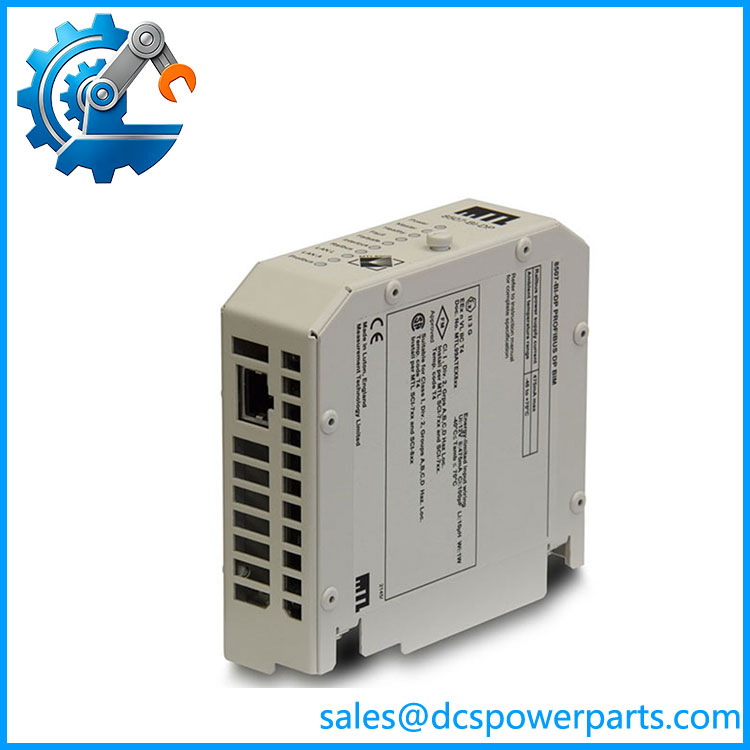

8507-BI-DP
Related Products
- MTL 8507-BI-DP-01 — Enhanced variant of the 8507-BI-DP family. Used where additional diagnostics and HART pass-through functions are required.
- MTL 8701-CA-BI — Redundant BIM carrier designed for dual interface module arrangements. Used in applications where communication availability is critical.
- MTL 8507-BI-PN — PROFINET bus interface alternative for PAC8000 systems. Suitable when migrating from PROFIBUS networks to Ethernet-based control systems.
- MTL 8502-BI-DN — DeviceNet interface module option. Used where existing field networks are based on DeviceNet rather than PROFIBUS.
- PAC8000 I/O Modules — Compatible remote I/O expansion modules used with the BIM for digital and analog field signal processing.
- MTL 8910-PS-DC — Power supply module supporting MTL8000/PAC8000 installations.
- MTL 8000 Series Carriers — Mechanical and electrical mounting platforms required for BIM and I/O module installation.
- Eaton PAC8000 System Components — Complete distributed I/O platform supporting industrial process automation applications.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ PROFIBUS Address and GSD Configuration Mismatch
A replacement BIM may appear healthy while the PLC/DCS cannot establish communication.
How to avoid: Record the original PROFIBUS station address and export the controller hardware configuration before removing the old module.
⚠️ Incorrect Carrier Compatibility
The 8507-BI-DP requires the correct carrier arrangement. A similar-looking carrier does not always provide the required Railbus connections.
How to avoid: Verify the carrier part number and inspect connector pins for contamination or oxidation before installation.
⚠️ Firmware Revision Differences
Different firmware revisions can affect diagnostics, configuration behavior, or compatibility with existing host files.
How to avoid: Compare firmware revision labels and validate communication with the installed PROFIBUS master before returning the rack to service.
Frequently Asked Questions (FAQ)
Can I replace an existing 8507-BI-DP without changing the PLC program?
Usually yes, provided the replacement uses the same PROFIBUS address, I/O configuration, and compatible GSD parameters. The PLC normally communicates with the BIM through configured network data rather than identifying the physical serial number.
Is the 8507-BI-DP compatible with remote I/O systems?
Yes. The module was designed as the PROFIBUS-DP communication interface for MTL8000/ distributed I/O systems. It connects field I/O modules to a PROFIBUS master located in a PLC or DCS environment.
What should be checked before ordering a replacement BIM?
Confirm:
- Existing BIM model number
- Carrier type
- PROFIBUS network speed
- Station address
- Installed I/O module count
- Required redundancy arrangement
Does the 8507-BI-DP support redundant operation?
Yes, redundant operation can be achieved when used with the appropriate redundant carrier arrangement and matching system configuration.
Why does my new module power up but fail to communicate?
Common causes include:
- Incorrect PROFIBUS address
- Missing or incorrect GSD configuration
- Damaged RS-485 wiring
- Incorrect termination resistor settings
- Carrier communication fault
A powered module does not necessarily mean the network configuration is correct.
Is a refurbished 8507-BI-DP suitable for plant operation?
A tested refurbished unit can be suitable when inspection includes power verification, PROFIBUS communication testing, diagnostic checks, and connector inspection. For aging automation systems, test records are often more valuable than external appearance.
How long does replacement preparation normally take?
Lead time depends on stock condition, testing requirements, and whether configuration verification is needed before shipment. Critical spare planning should include both hardware availability and engineering validation time.
