Description
MTL 8711-CA-NS Node Services Carrier Product Description
Product Overview
MTL 8711-CA-NS is a Node Services Carrier designed for the MTL8000 distributed process I/O system, providing the hardware foundation for integrating Modbus communication modules, power supply units, node management modules, and I/O expansion modules into a complete industrial automation node. As a key carrier component in the MTL8000 2/2 Process I/O architecture, MTL 8711-CA-NS provides mechanical mounting, internal power distribution, Railbus communication routing, and external LAN connection interfaces required for distributed control applications.
The MTL 8711-CA-NS is specifically designed for Modbus-based MTL8000 remote I/O installations. The carrier accommodates one Bus Interface Module (BIM), two power supply modules, and up to four general-purpose I/O modules, creating a compact and flexible remote I/O node. Through integrated screw-terminal LAN connections, field power routing, and internal bus connections, MTL 8711-CA-NS enables reliable communication between field-level instrumentation and higher-level PLC, DCS, or SCADA systems.
As an important infrastructure component within the MTL8000 automation platform, MTL 8711-CA-NS improves system scalability, simplifies cabinet design, and reduces installation complexity. It is widely applied in process industries where distributed signal acquisition and control are required, including oil and gas, chemical processing, power generation, water treatment, and manufacturing automation. With rugged industrial construction and support for hazardous area applications, MTL 8711-CA-NS provides a reliable platform for long-term operation of critical automation systems.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 8711-CA-NS |
| Manufacturer | MTL (Eaton / Emerson Industrial Automation) |
| Product Type | Node Services Carrier |
| Product Series | MTL8000 Process I/O System |
| Main Function | Remote I/O node carrier and communication platform |
| Supported BIM Module | MTL 8505-BI-MB Modbus Bus Interface Module |
| Supported Node Services Module | MTL 8510-NS-MO |
| I/O Module Capacity | Up to 4 MTL8000 I/O modules |
| Power Supply Support | Up to 2 × 8910-PS-DC modules |
| Communication Interface | Modbus LAN screw terminal interface |
| Internal Bus | MTL Railbus communication bus |
| LAN Connector Type | 6-way screw terminal |
| Field Power Routing | Supported through carrier bus |
| Mounting Method | DIN rail or panel mounting |
| DIN Rail Compatibility | EN 50022 / EN 50035 rail types |
| Dimensions (W × H × D) | Approx. 342 × 22 × 170 mm |
| Weight | Approx. 680 g |
| Housing Material | Modified polyphenylene oxide |
| Operating Temperature | -40°C to +70°C |
| Protection Application | Zone 2 / Class I Division 2 compatible applications |
Main Features and Advantages
Modular remote I/O architecture:
The main advantage of MTL 8711-CA-NS is its ability to provide a complete modular foundation for MTL8000 remote I/O nodes. By combining communication modules, power supplies, and I/O modules on a single carrier platform, MTL 8711-CA-NS allows engineers to build compact and highly maintainable distributed control stations.
Integrated Modbus communication support:
Designed specifically for Modbus-based systems, MTL 8711-CA-NS works with the MTL 8505-BI-MB Bus Interface Module to provide communication between field I/O modules and host automation systems. This architecture allows PLCs, DCS controllers, and SCADA platforms to easily access distributed field data.

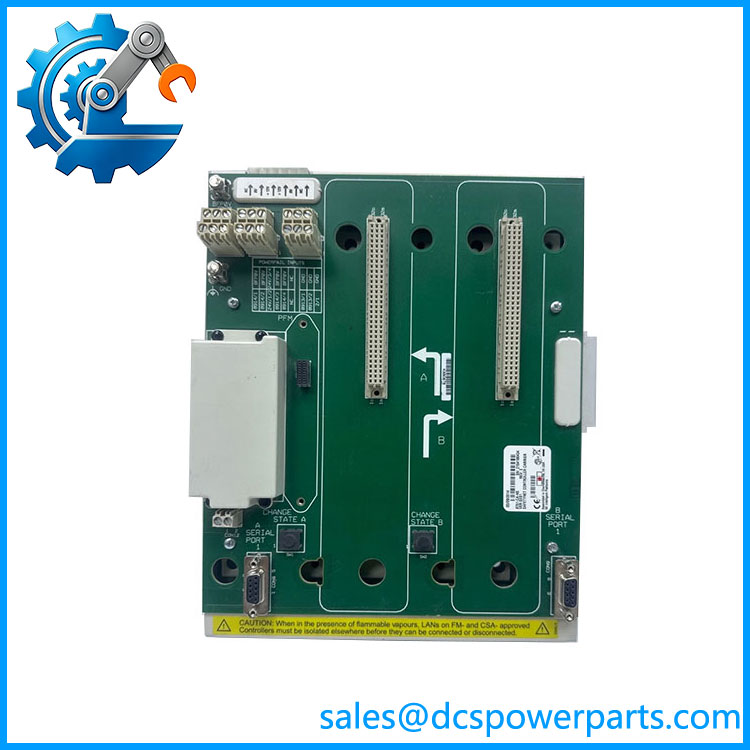

8711-CA-NS
Flexible module configuration:
The carrier supports installation of one BIM, two power supply modules, and four I/O modules, giving users flexibility when designing remote control nodes. MTL 8711-CA-NS can support different combinations of analog input, analog output, and digital I/O modules according to project requirements.
Reliable power distribution:
The carrier provides internal routing for system power and field power connections. When combined with redundant power supply configurations, MTL 8711-CA-NS can improve system availability and help maintain operation during power supply failures.
Industrial-grade mechanical design:
The rugged construction of MTL 8711-CA-NS provides mechanical protection and stable electrical connections in demanding industrial environments. The carrier uses durable materials and a robust printed wiring board structure suitable for continuous operation.
Simplified installation and maintenance:
The modular carrier design of MTL 8711-CA-NS reduces wiring complexity and improves service efficiency. Engineers can replace communication modules, power supplies, or I/O modules individually without redesigning the complete remote I/O station.
Hazardous area compatibility:
Many process industries require automation equipment suitable for challenging environments. MTL 8711-CA-NS supports installation in Zone 2 and Class I Division 2 applications when used with approved MTL8000 system components, making it suitable for oil, gas, and chemical process installations.
Long-term lifecycle support:
The MTL8000 platform has been widely installed in industrial facilities worldwide. MTL 8711-CA-NS provides a dependable spare and replacement solution for maintaining existing automation systems and extending operational lifetimes.
Application Areas
Oil and Gas Industry:
MTL 8711-CA-NS is widely used in oil and gas production facilities, refineries, and pipeline automation systems. It provides the hardware foundation for remote I/O nodes that collect signals from pressure transmitters, valves, flow meters, and process equipment.
Chemical and Petrochemical Plants:
Chemical processes require reliable distributed control architectures. MTL 8711-CA-NS enables connection of multiple field I/O modules, supporting monitoring and control of reactors, pumps, storage systems, and safety-related process equipment.
Power Generation:
Power plants use distributed automation networks for monitoring turbines, auxiliary systems, and electrical equipment. MTL 8711-CA-NS provides a reliable remote I/O platform for integrating field signals into centralized control systems.
Water and Wastewater Treatment:
Large water treatment facilities require many distributed measurement and control points. MTL 8711-CA-NS supports remote installation of analog and digital I/O modules for pumps, valves, level instruments, and treatment process monitoring.
Manufacturing Automation:
In production environments, MTL 8711-CA-NS helps connect field devices with PLC and SCADA systems. Its modular design supports flexible automation configurations for machinery, production lines, and equipment monitoring.
Industrial Retrofit Projects:
For existing MTL8000 installations, MTL 8711-CA-NS provides a practical replacement and expansion solution. It allows users to maintain existing Modbus communication structures while improving system reliability and serviceability.
