Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | MTL Instruments / Eaton Crouse-Hinds |
| Model Number | MTL5541 |
| Product Type | Repeater Power Supply / Galvanic Isolator |
| Series | MTL5500 |
| Number of Channels | 1 |
| Signal Type | Analog input/output |
| Input Signal | 0-24mA (including over-range) |
| Output Signal | 4-20mA |
| Transmitter Type | 2-wire or 3-wire transmitters |
| HART Support | Yes, terminals 1 and 2 only |
| Supply Voltage | 20-35VDC |
| Current Consumption | 51mA at 24VDC |
| Power Dissipation | 0.7W at 24VDC |
| Safe Area Load Resistance | 0-360Ω at 24mA / 0-450Ω at 20mA |
| Transfer Accuracy | Better than 15µA at 20°C |
| Temperature Drift | <0.8µA/°C |
| Response Time | Within 10% of final value in 50µs |
| Isolation Voltage | 250Vrms between safe-area circuits and power supply |
| Mounting | 35mm DIN rail |
| Hazardous Area Rating | IECEx / ATEX Zone 0 compatible (when correctly certified) |
| Safety Integrity Level | SIL2/SIL3 capable according to IEC61508 assessment |
| Operating Temperature | -20°C to +60°C |
| Dimensions | Approx. 109.8 × 118.8 × 15.8mm |
| Weight | Approx. 150g |
Product Introduction
MTL5541 Overview
The MTL5541 is a single-channel repeater power supply from the MTL5500 series, designed to interface hazardous-area 4-20mA transmitters with safe-area control systems. It supplies power to field transmitters, repeats the measurement signal, and provides electrical isolation between field and control-side circuits.
The MTL5541 is commonly installed in process plants where transmitters are located in classified areas and must communicate with PLC, DCS, or safety systems. HART communication can pass through the module for supported transmitter configurations, allowing maintenance access without removing the isolation barrier.

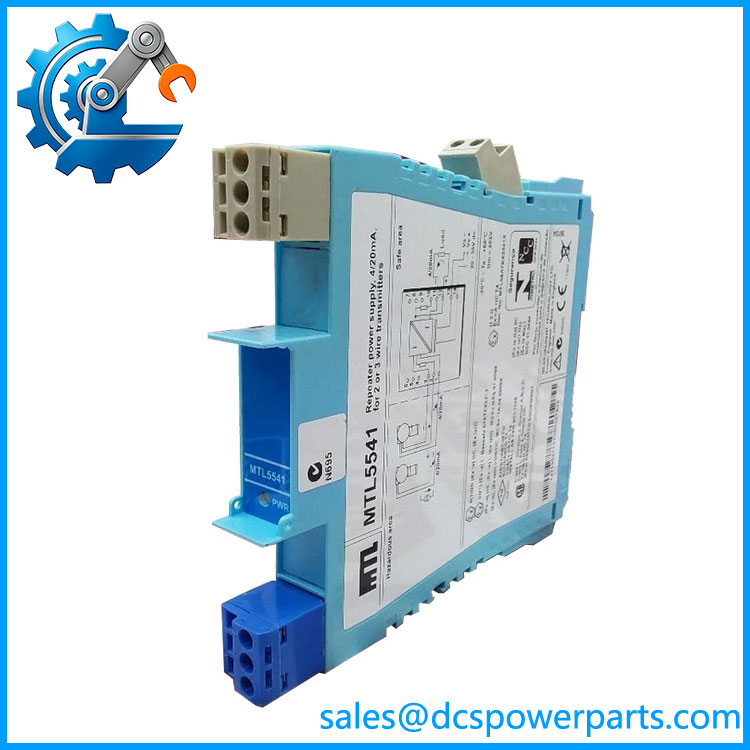

MTL5541
MTL5541
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A pressure transmitter in a hazardous area suddenly shows unstable readings in the control room. The transmitter checks out, the loop wiring appears normal, but the DCS value is still incorrect.
In many cases, the signal interface module is overlooked. The MTL5541 sits directly in the measurement path. A wiring mistake, incorrect loop resistance, or incompatible transmitter type can create symptoms that look like an instrument failure.
Typical Applications
- Oil & Gas Facilities – Hazardous-area pressure, flow, and level transmitters connected to DCS analog input systems.
- Chemical Processing Plants – Isolation of process transmitters installed in classified production areas.
- Power Generation – Boiler, turbine auxiliary, and fuel system instrumentation loops.
- Pharmaceutical Facilities – Process monitoring loops requiring isolated 4-20mA transmission.
Technical Pitfalls to Avoid
- Verify Transmitter Wiring Type
The MTL5541 supports 2-wire and 3-wire transmitters. Confirm transmitter power arrangement and terminal wiring before commissioning.
- Check HART Loop Conditions
HART communication depends on proper loop resistance and wiring practices. A working 4-20mA signal does not always mean HART communication will function correctly.
- Confirm Barrier Replacement Compatibility
Do not replace an isolation module based only on channel count. Verify hazardous-area certification requirements, loop parameters, and system approval documents.
