Description

Emerson 8115-DO-DC | 8-Channel 2–60VDC Digital Output | PAC8000

Key Technical Specifications

Emerson’s PAC8000 documentation identifies the 8115-DO-DC as an 8-channel discrete output module with a 2–60 VDC non-isolated, module-powered architecture. MTL documentation specifies 1 A continuous switching current per channel and a 6 A continuous limit for the module.

Product Introduction

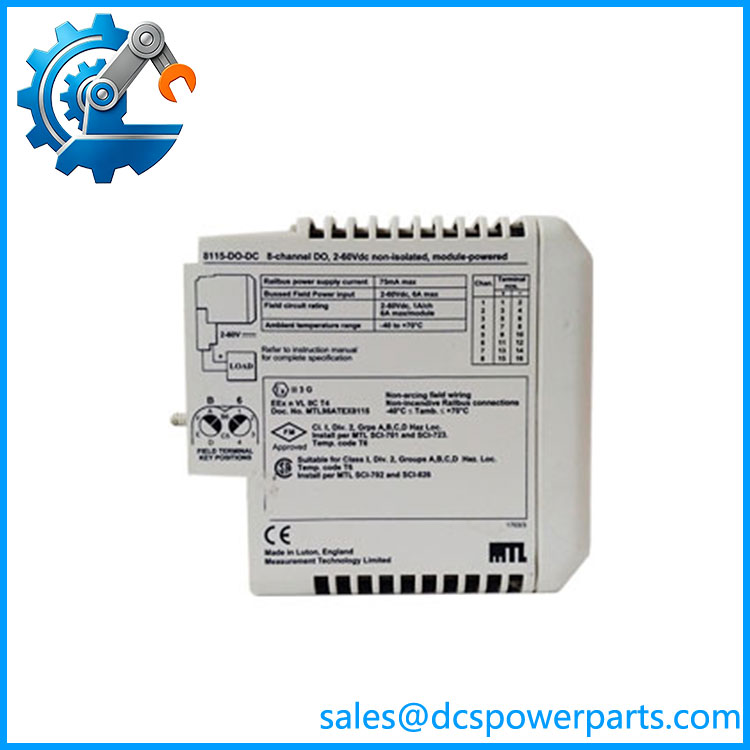

The Emerson 8115-DO-DC is an eight-channel discrete output module for the remote I/O platform. It provides DC switching outputs for field loads such as solenoids and relays, using a shared 2–60 VDC bussed field-power arrangement. Because the outputs are non-isolated and module-powered, the field wiring design is an important part of replacement verification rather than something that can be ignored based solely on channel count.

The Emerson 8115-DO-DC supports ordinary discrete commands as well as momentary and continuous pulse operation. Its documented maximum response time from a Railbus command to the output change is 1 ms. For maintenance teams supporting existing installations, the exact 8115-DO-DC catalog number should be matched before substitution because the related 8117-DO-DC has the same 2–60 VDC range and eight-channel count but uses an isolated, unpowered architecture.

8115-DO-DC

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

A failed DC output can look like a bad solenoid, relay, fuse, field terminal, or I/O module. With the 8115-DO-DC, troubleshooting should begin by separating the Railbus command path from the bussed field-power path. The module requires external field power, and the output channels share the module’s field-power architecture.

Typical Applications

1. Solenoid control
The MTL documentation specifically identifies the 8115-DO-DC for controlling solenoids. It is suitable where the connected DC load falls within the documented voltage and current limits.

2. Relay operation
The outputs can control suitable DC relay coils and similar discrete loads. For higher-current relay applications, MTL also documents compatible field-terminal arrangements, including the 8618-FT-MT for high-current relay adapters.

3. remote I/O
The module operates within the modular carrier and Railbus architecture, alongside analog, discrete input, pulse, and other I/O modules.

4. Industrial process equipment
Eight DC outputs can be used for equipment commands, permissives, actuator commands, relay interfaces, and other binary control functions where isolation between channels is not required.

Technical Pitfalls

Check the field-power arrangement.
The 8115-DO-DC requires 2–60 VDC bussed field power. A missing or unstable field supply can produce multiple apparent output failures simultaneously.

Do not confuse it with 8117-DO-DC.
Both are eight-channel DC output modules covering 2–60 VDC, but the 8115-DO-DC is non-isolated and module-powered, while the 8117-DO-DC is isolated and unpowered. This difference directly affects field wiring and load power arrangements.

Respect the total current limit.
Although a channel can switch 1 A continuously, the module is limited to 6 A total continuous current. Short-duration current limits are higher, but they should not be interpreted as continuous operating ratings.

Check coil behavior.
Solenoids and relay coils can generate transient voltage when de-energized. Confirm that the field load and any suppression components are appropriate for the output circuit before concluding that an output channel is defective.

Account for leakage current.
The specified maximum OFF-state leakage is 1.0 mA. Very sensitive field devices may respond unexpectedly to leakage that would be insignificant for a conventional relay coil.

Verify the field terminal.
Compatible field-terminal options include 8604-FT-FU, 8602-FT-ST, 8611-FT-FU, and 8610-FT-NA, depending on the installation and hazardous-area requirements. The field terminal should be matched to the existing cabinet design rather than selected independently.

Check the mechanical keying.
The documented module key code is B6. uses mechanical keying to reduce incorrect module installation, so the carrier and field-terminal arrangement should be checked when replacing an existing module.

Related Products

• Emerson 8117-DO-DC — 8-channel, 2–60 VDC isolated and unpowered; the closest architectural comparison.
• Emerson 8116-DO-AC — 8-channel AC discrete output, 20–265 VAC, non-isolated and module-powered.
• Emerson 8118-DO-AC — 8-channel AC discrete output, 20–265 VAC, isolated and unpowered.
• Emerson 8142-DO-DC — 16-channel DC digital output module, different output architecture and voltage range.
• Emerson 8121-DI-DC — 16-channel 24 VDC non-isolated, module-powered discrete input.
• Emerson 8122-DI-DC — 16-channel 24 VDC isolated sinking discrete input.
• Emerson 8110-DI-DC — 8-channel 24 VDC non-isolated, module-powered discrete input.
• Emerson 8127-DI-SE — 32-channel 24 VDC Sequence of Events input module.
• Emerson 8604-FT-FU — compatible fused field-terminal option for discrete I/O.

Procurement Note

When sourcing an 8115-DO-DC, match the exact 8115-DO-DC catalog number and confirm the existing carrier, field terminal, module keying, bussed field-power arrangement, and load requirements. Do not substitute an 8117-DO-DC merely because both modules are eight-channel 2–60 VDC outputs.

For used or surplus inventory, inspect the field connector, output circuitry, housing, keying, and signs of thermal stress. A meaningful functional test should exercise several channels under representative DC loads while monitoring the field supply and checking both normal switching and the expected OFF-state behavior.

Engineering classification: Emerson / MTL 8115-DO-DC — 8-channel, 2–60 VDC, non-isolated, module-powered discrete output module.
