Emerson 8707-CA-08 | 8-Module PAC8000 Carrier | Remote I/O Backbone
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson / MTL |
| Model | 8707-CA-08 |
| Product Family | PAC8000 / MTL8000 |
| Product Type | 8-Module I/O Carrier |
| Module Capacity | Up to 8 I/O modules |
| Module Addressing | 1–32 |
| Railbus Input | Female connector |
| Railbus Output | Male connector |
| Railbus Function | Control signals, data, and module power |
| Bussed Field Power | Supported |
| Field Terminal Mounting | Supported |
| Mounting Options | DIN rail or flat panel |
| Compatible Rail | 7.5 × 35 mm T-rail, 15 × 35 mm T-rail, G-section rail |
| Dimensions (W × D × H) | 342 × 170 × 22 mm |
| Weight | Approximately 680 g |
| Active Components | None |
| Hazardous-Area Architecture | General-purpose 2/2 configuration |
| Lifecycle Status | Active in referenced carrier documentation |
The 8707-CA-08 is specified as an eight-module carrier with 32-slot addressing. The carrier provides the physical mounting structure and carries Railbus control/data signals while distributing DC module power and, where required, bussed field power.
Product Introduction
The Emerson 8707-CA-08 is the eight-module carrier used within the modular remote I/O architecture. It is not a CPU, communication processor, or individual I/O channel module. Instead, it forms part of the physical and electrical backbone of a node, accepting compatible I/O modules and their field terminals while carrying Railbus signals and distributing the required power.
The Emerson 8707-CA-08 supports up to eight I/O modules in a 32-address system. Its passive construction means there is no active processing electronics inside the carrier itself. This is useful from a maintenance standpoint: when an entire group of I/O modules shows communication or power problems, the carrier, Railbus connections, and power distribution should be inspected before replacing individual I/O modules.

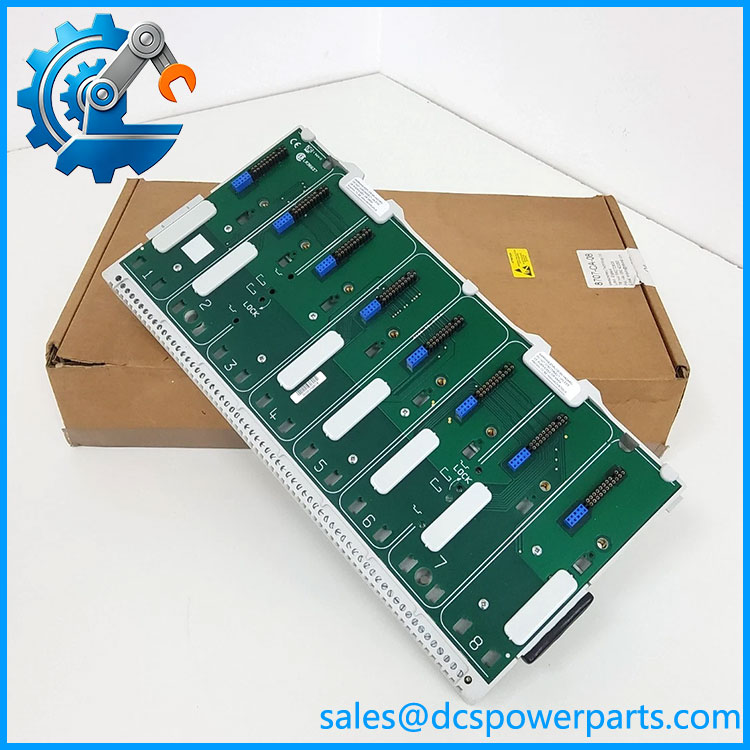

8707-CA-08
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
When several channels fail simultaneously, engineers often start replacing I/O modules. With the 8707-CA-08, that can be the wrong direction. The carrier distributes Railbus connections and module power, and adjacent module positions can share bussed field-power connections. A carrier connection, power-distribution issue, or damaged Railbus interface can therefore affect multiple modules at once.
Typical Applications
1. remote I/O nodes
The 8707-CA-08 provides mounting and interconnection for up to eight compatible I/O modules.
2. Process-control cabinets
The carrier can accommodate combinations of analog input/output, discrete input/output, pulse, and other modules according to the node configuration.
3. Distributed field I/O
The carrier allows I/O modules to be arranged along DIN rail or panel-mounted cabinet infrastructure while extending the internal Railbus through the node.
4. system expansion or repair
A replacement carrier can restore the mechanical and electrical infrastructure when a carrier has suffered connector, terminal, or physical damage.
Technical Pitfalls
Do not confuse 8707-CA-08 with 8709-CA-08.
Both are eight-module carriers, but the documented 8707-CA-08 is the 32-slot addressing carrier, while 8709-CA-08 is the eight-module carrier associated with 64-slot addressing and an earth-bar configuration.
Check the addressing architecture.
The 8707-CA-08 is specified for 1–32 module addressing. A system designed around 64-slot addressing requires the appropriate carrier family rather than simply installing another eight-position carrier.
Inspect Railbus connectors carefully.
The carrier has female Railbus input and male Railbus output connections. Bent contacts, contamination, mechanical damage, or poor engagement can interrupt communication or power to downstream hardware.
Check bussed field power distribution.
documentation indicates that Bussed Field Power connections supply groups of adjacent module positions. Modules sharing a BFP connection therefore need to be considered together during troubleshooting and cabinet modifications.
Match the field terminals.
Field terminals attach directly to the carrier and are retained by the installed I/O module. The correct terminal depends on the I/O module and installation requirements; examples include standard, fused, non-arcing, thermocouple, RTD, and hazardous-area variants.
Do not treat it as an active electronic module.
The carrier does not execute control logic or process field signals. If a single channel is bad, troubleshoot the associated I/O module and field terminal first. If several adjacent modules fail together, investigate the carrier, Railbus, and power distribution.
Verify mechanical mounting dimensions.
The documented carrier dimensions are 342 × 170 × 22 mm, with approximately 680 g weight. DIN-rail compatibility includes specified T-section and G-section rails, as well as flat-panel mounting.
Related Products
- Emerson 8709-CA-08 — 8-module carrier with earth bar and 64-slot addressing architecture.
- Emerson 8710-CA-04 — 4-module carrier for 32-slot addressing.
- Emerson 8727-CA-08 — 8-module intrinsically safe carrier.
- Emerson 8729-CA-08 — 8-module intrinsically safe carrier for 64-address systems.
- Emerson 8711-CA-NS — node services carrier with screw-terminal LAN.
- Emerson 8712-CA-NS — node services carrier for PROFIBUS-DP LAN.
- Emerson 8718-CA-NS — BIM and node-services carrier for PROFIBUS and Modbus.
- Emerson 8723-CA-RB — Railbus isolator carrier.
- Emerson 8724-CA-PS — intrinsically safe module power-supply carrier.
- Emerson 8020-CE-RH / 8021-CE-LH — carrier extender components for installations.
Procurement Note
When sourcing an 8707-CA-08, verify that the existing node uses the 32-slot addressing architecture and that the carrier’s Railbus direction, module positions, field-power arrangement, and required field terminals match the cabinet configuration.
For used or surplus inventory, inspect the Railbus connectors, module-retaining hardware, DIN-rail mounting points, field-terminal interfaces, and PCB for contamination or physical damage. Because the carrier is passive, a basic visual inspection combined with a system-level Railbus and power test is often more informative than treating it like an electronic I/O module.
Engineering classification: Emerson / MTL 8707-CA-08 — 8-module, 32-slot I/O carrier providing Railbus interconnection and module/field-power distribution.
