Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | MTL Instruments / Eaton |
| Model | MTL838B-MBF |
| Series | MTL8000 |
| Product Type | Fieldbus Multiplexer Base Unit |
| Function | Remote field signal multiplexing interface |
| System Architecture | MTL8000 Multiplexer System |
| Field Connection | MTL8000 remote I/O modules |
| Communication Interface | Fieldbus / serial communication (system dependent) |
| Hazardous Area Support | Intrinsically safe system applications |
| Mounting | DIN rail / panel installation (system dependent) |
| Power Supply | 24VDC nominal system supply |
| Configuration Method | MTL8000 configuration software and host interface |
| Application Environment | Hazardous and industrial process areas |
| Typical Industries | Oil & gas, petrochemical, chemical processing, power generation |
Product Introduction
MTL838B-MBF Overview
The MTL MTL838B-MBF is a base interface module within the MTL8000 fieldbus multiplexer family, designed to collect and transfer field instrumentation data in industrial process environments. The module provides the foundation for integrating remote hazardous-area signal acquisition into a centralized monitoring and control architecture.
The MTL838B-MBF operates as part of a complete MTL8000 system rather than as a standalone I/O module. It provides the communication and interface structure required for field multiplexer operation, allowing process signals from remote instrumentation points to be transmitted to supervisory systems while maintaining the isolation requirements commonly found in hazardous locations.
The MTL838B-MBF is typically installed in applications where replacing large quantities of conventional point-to-point wiring with multiplexed signal transmission provides practical advantages. It is commonly associated with process plants that require reliable monitoring of instrumentation loops while maintaining compliance with hazardous-area installation requirements.

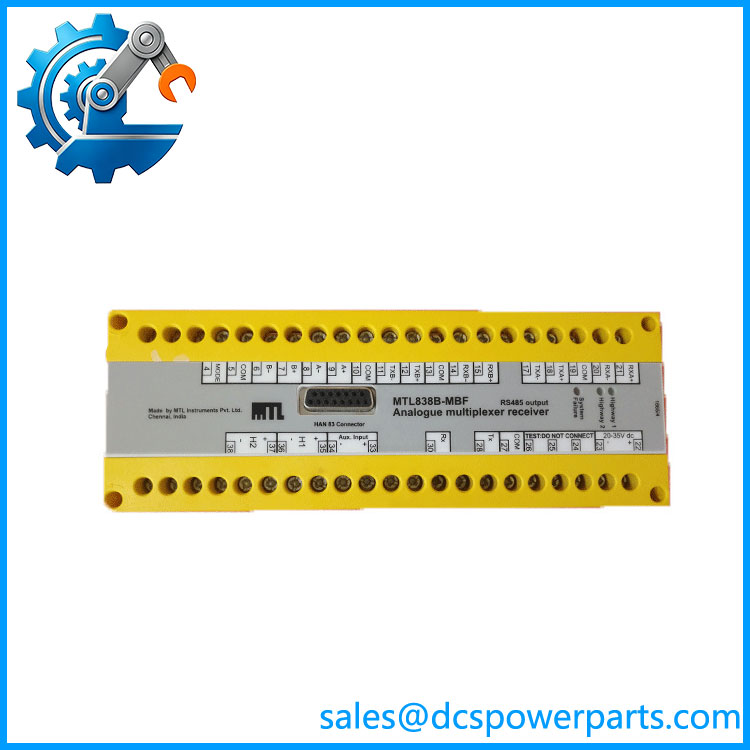

MTL838B-MBF
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A process facility needs to monitor a large number of field instruments located in hazardous areas. Traditional wiring methods increase cabinet size, cable routing complexity, and maintenance workload.
A field multiplexer system reduces the number of individual signal cables by collecting field data locally and transmitting information through a communication link.
The MTL838B-MBF supports this architecture by acting as part of the communication and interface layer.
Typical Applications
Oil and Gas Facilities
Used for:
- Tank farm monitoring
- Wellhead instrumentation
- Remote process measurement
- Safety system interfaces
Chemical and Petrochemical Plants
Applied in:
- Reactor monitoring
- Pressure and flow measurement
- Hazardous area instrumentation networks
Power Generation
Used for:
- Auxiliary equipment monitoring
- Plant instrumentation collection
- Remote signal management
Offshore Platforms
Applied where:
- Space is limited
- Field wiring distance is significant
- Hazardous-area certification is required
Technical Pitfalls to Avoid
1. Verify Complete System Compatibility
The is part of a larger system. Confirm compatibility with:
- Field multiplexer modules
- Host communication interface
- Configuration database
- Installed firmware revision
2. Confirm Hazardous Area Requirements
Check:
- Area classification
- Intrinsic safety barriers
- Approved installation method
- Field device compatibility
A correct part number alone does not guarantee certification compliance.
3. Review Communication Configuration
Communication faults may originate from:
- Incorrect addressing
- Network wiring issues
- Host configuration mismatch
- Termination problems
4. Check Existing System Documentation
For replacement projects, retain:
- Channel mapping
- Field instrument assignments
- Configuration files
- Alarm settings
A hardware swap without configuration backup can increase commissioning time.
Related Products
- MTL838C
Later-generation multiplexer interface equipment used for field signal monitoring. - MTL831B
field multiplexer module for hazardous-area signal acquisition. - MTL832
Remote multiplexer module used for field instrumentation connections. - Series Multiplexer System
Complete architecture for hazardous-area field signal collection and communication. - MTL4500 Series Intrinsic Safety Interfaces
Signal conditioning and isolation products commonly used in process automation installations. - Honeywell Experion PKS / DCS Systems
Common host platforms used with field signal interface solutions in process industries.
