Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | MOOG |
| Model | M128-010 |
| Full Part Number | M128-010-A001B |
| Product Type | Motion Control Module |
| Series | M128 Control System |
| Application | Servo control, motion systems, hydraulic control equipment |
| Mounting | Rack / modular control chassis |
| Input Power | System-dependent rack supply |
| Communication | Internal system bus (application dependent) |
| Function | Servo system interface and control processing |
| Compatible Systems | MOOG motion control platforms |
| Typical Use | Closed-loop actuator and servo applications |
| Status | Legacy / discontinued support component |
Product Introduction

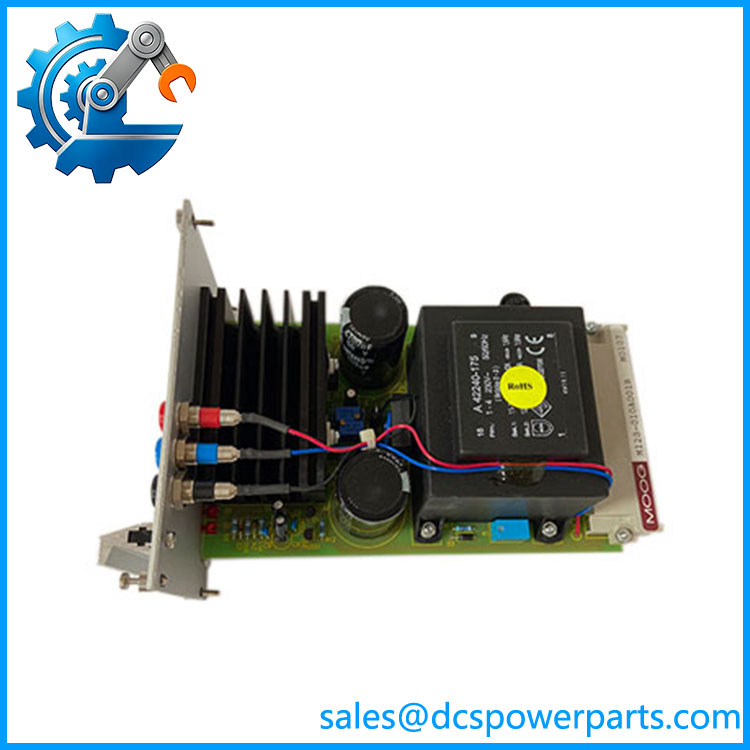

MOOG M128-010-A001B Overview
The MOOG M128-010-A001B is a legacy M128 series control module used in MOOG industrial motion control systems. It provides interface and control functions within modular servo architectures, supporting applications where precise actuator management and closed-loop motion control are required.
The MOOG M128-010-A001B remains relevant in installed equipment where existing motion controllers, servo electronics, and machine control software are still in service. Replacement requires verification of rack configuration, firmware compatibility, and the exact motion controller architecture before installation.
M128-010 M128-010-A001B
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A hydraulic test stand stops following commanded motion profiles. The servo valve checks correctly, the hydraulic pressure is stable, but the actuator response is inconsistent.
In older motion systems, the control electronics are often the last component investigated. Engineers usually check the mechanical system first, but aging controller modules, communication faults, or incorrect parameter settings can create similar symptoms.
The MOOG M128-010-A001B is part of the control chain between the application software and the physical actuator. Configuration accuracy matters.
Typical Applications
- Tire Manufacturing Equipment – Servo-controlled hydraulic systems for tire building machines and production automation.
- Aerospace Test Systems – Hydraulic actuator control for structural testing and simulation equipment.
- Industrial Motion Platforms – Closed-loop positioning systems requiring accurate servo response.
- Research and Development Test Rigs – Precision actuator control for laboratory and engineering validation systems.
Technical Pitfalls to Avoid
- Confirm Exact Hardware Revision
MOOG M128 modules may have revision-specific differences. Verify the complete part number, including the A001B suffix, before replacement.
- Check Controller Parameters
Servo systems depend heavily on stored tuning parameters. Replacing hardware without restoring the correct configuration can result in unstable motion.
- Inspect Power and Rack Connections
A module may appear faulty when the actual issue is poor backplane contact, unstable supply voltage, or cabinet wiring problems.
