Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell Analytics / Sieger |
| Model | 05704-A-0122 |
| System | System 57 / 5704 |
| Product Type | Expansion Relay Card |
| Additional Relays | 12 |
| Relay Configuration | 8 × SP changeover + 4 × SP single-throw |
| Relay Functions | A1, A2, A3, Fault, Inhibit |
| Output Configuration | Individual or master outputs |
| Mating Card | Quad Relay Interface Card |
| Rack Occupancy | 2 slots when used with Quad Relay Interface Card |

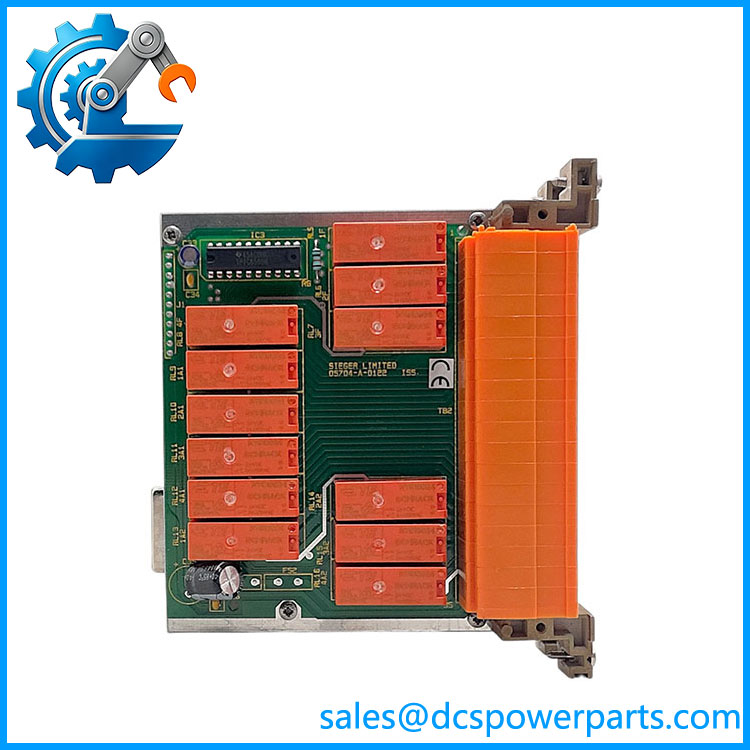

| Board Marking | SIEGER LIMITED 05704-A-0122 |
The 05704-A-0122 is specifically identified in Honeywell’s System 57 documentation as the Expansion Relay Card. It provides 12 additional relays, consisting of eight single-pole changeover relays and four single-pole single-throw relays. The relays can be assigned to A1, A2, A3, fault, or inhibit alarm functions and can operate as individual or master outputs.
This is an important correction to several online listings that describe the part as a 4-channel analog input board. The original Honeywell documentation clearly shows the PCB marking 05704-A-0122 on the expansion relay card and identifies its relay architecture.
Product Introduction
Honeywell 05704-A-0122 is a relay expansion PCB for the Honeywell/Sieger System 57 5704 gas detection control system. It extends the relay output capability of a Four Channel Control Card when connected through the corresponding Quad Relay Interface Card. The expansion board adds 12 relay outputs for alarm, fault, and inhibit functions rather than providing gas-sensor analog inputs itself.
From a maintenance perspective, the board is part of a two-card relay assembly. Honeywell specifies that the Expansion Relay Card connects to the Quad Relay Interface Card and that the pair occupies two rack slots. That means the correct mating card and rack arrangement need to be confirmed before approving a replacement.
05704-A-0122
Application Scenarios & Field Pitfalls
Engineering Pain Point
A failed relay-expansion board can remove alarm or shutdown outputs even though the associated gas detection channels continue to operate normally. Troubleshooting therefore needs to separate detector input problems from relay-output problems.
Typical Applications
- Fixed gas detection systems — extending alarm relay capacity for connected gas-monitoring channels.
- Industrial gas monitoring — providing additional alarm, fault, and inhibit contacts for plant systems.
- Process safety systems — routing System 57 alarm states to external annunciators, shutdown circuits, or plant control equipment.
- Legacy System 57 installations — maintaining existing 5704 racks where replacement of the complete gas detection system is not yet practical.
Technical Pitfalls to Avoid
- Do not treat it as an analog input card. The primary Honeywell manual identifies 05704-A-0122 as an Expansion Relay Card, not a 16-channel analog input module.
- Do not assume four relay outputs. The “4-channel” wording found in some reseller descriptions appears to confuse this card with the associated Four Channel Control Card. The expansion card itself provides 12 additional relays.
- Verify the Quad Relay Interface Card. The expansion card is designed to connect to that card; it is not a standalone universal relay module.
- Check relay contact assignments before rewiring. A1, A2, A3, fault, and inhibit functions can be configured, so terminal usage should be compared against the original system drawings.
- Do not substitute a generic relay board. Contact configuration, rack connection, alarm logic, and System 57 integration all matter.
Related Products
- 05704-A-0121 — Quad Relay Interface Card for the 5704 system; the critical companion to the expansion card.
- 05704-A-0131 — Relay Interface Assembly providing 16 relay outputs; related to expanded System 57 relay functionality.
- 05704-A-0144 — Four Channel Control Card for catalytic gas detection applications.
- 05704-A-0145 — Four Channel Control Card for 4–20 mA applications.
- 05704-C-0160 — Interconnect cable used within the 5704/System 57 architecture.
- 05704-A-0123 — 5704F Hex Relay Interface Card, associated with the fire-detection variant rather than the standard expansion configuration.
- 05704-A-0133 — 5704F Relay Interface Assembly for the 5704F architecture.
- 05704-A-0146 — 5704F Fire Card, a different functional board within the System 57 family.
Procurement Check
For 05704-A-0122, the correct procurement description is:
Honeywell Analytics / Sieger System 57 5704 — 05704-A-0122 — Expansion Relay Card — 12 relays, 8 SPCO + 4 SPST.
The most important point is to ignore reseller descriptions calling this a 4-channel analog input module. Honeywell’s own System 57 documentation identifies the board as an Expansion Relay Card and specifies its 12-relay configuration.
Before installation, verify the 05704-A-0122 board marking, mating 05704-A-0121 Quad Relay Interface Card, rack slot arrangement, relay contact wiring, and programmed alarm assignments.
