Description
Product Overview

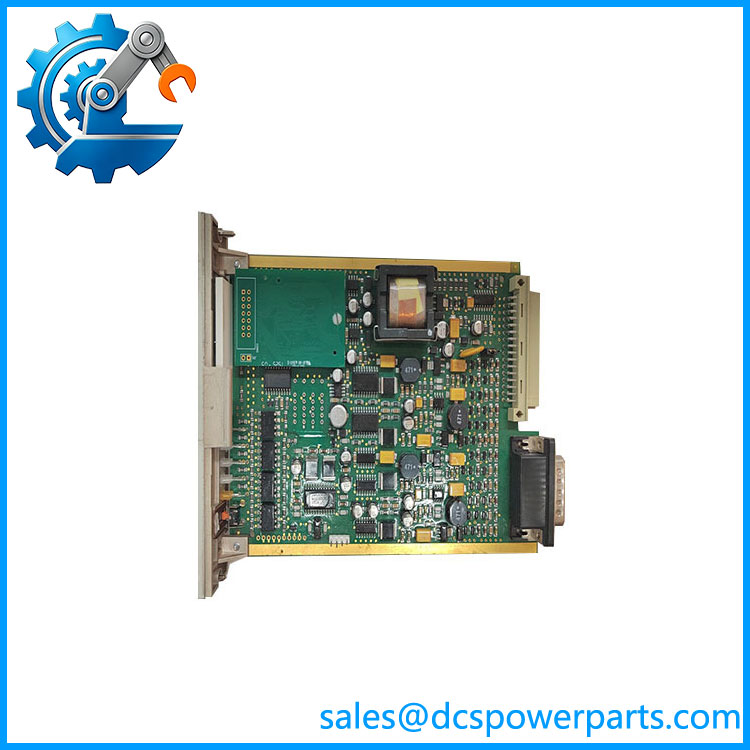

Honeywell 05704-A-0144 is a four-channel catalytic gas detection control card designed for the Honeywell Analytics Zellweger System 57 gas monitoring platform. It is a modular safety monitoring component used for continuous measurement, display, alarm processing, and control of up to four connected catalytic gas detectors. As a core control module within the System 57 architecture, 05704-A-0144 provides reliable gas concentration monitoring, alarm management, fault diagnosis, and field device interface functions for industrial safety applications.
Honeywell 05704-A-0144 is specifically designed for catalytic bead gas sensor inputs and provides constant-current sensor drive, signal conditioning, microprocessor-based measurement processing, and configurable alarm functions. The module accepts low-level catalytic bridge signals from combustible gas detectors, processes the measured values, and provides local indication through an integrated display and LED alarm indicators. Within the Honeywell System 57 platform, 05704-A-0144 acts as an intelligent interface between gas sensors and plant safety systems, helping operators detect hazardous gas conditions quickly and accurately.
Honeywell 05704-A-0144 is widely applied in hazardous industrial environments where continuous gas monitoring and dependable alarm response are essential. The module supports applications in oil and gas facilities, chemical plants, power generation sites, offshore platforms, and industrial process areas. With four independent detection channels, remote inhibit capability, alarm reset functions, and flexible output options, 05704-A-0144 provides a compact and reliable solution for fixed gas detection systems requiring high availability and operational safety.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 05704-A-0144 |
| Manufacturer | Honeywell Analytics |
| Product Type | Four Channel Control Card |
| Series | Zellweger System 57 / 5704 Control System |
| Application | Fixed gas detection and safety monitoring |
| Input Type | Catalytic gas detector input |
| Number of Channels | 4 independent channels |
| Power Supply | 18–32 VDC |
| Power Consumption | 12.8 W (catalytic sensor operation) |
| Sensor Drive Method | Constant current drive |
| Sensor Current Range | 90 mA to 315 mA |
| Input Signal Range | 15 mV to 300 mV catalytic bridge signal |
| Maximum Line Resistance | 40 Ω including sensor wiring |
| Display Type | Backlit LCD with digital/alphanumeric indication |
| Alarm Indicators | A1, A2, A3, Fault, Inhibit LEDs per channel |
| Output Options | Relay output / analog output modules |
| Remote Functions | Remote inhibit and alarm reset |
| Operating Temperature | -5°C to +55°C |
| Storage Temperature | -25°C to +55°C |
| Operating Humidity | 20–90% RH non-condensing |
| Dimensions | 3U height × 25 mm width |
| Weight | Approx. 165 g |
| Mounting Type | System 57 rack mounting |
05704-A-0144
Main Features and Advantages
Honeywell 05704-A-0144 provides a compact and highly reliable gas detection control solution for industrial safety applications. Its four-channel architecture allows one module to monitor multiple catalytic gas detectors simultaneously, reducing cabinet space requirements while improving system integration efficiency. Compared with standalone gas monitors, 05704-A-0144 offers centralized monitoring, alarm management, and diagnostic capability within the System 57 modular platform.
A key advantage of Honeywell 05704-A-0144 is its dedicated catalytic sensor interface. The module provides a regulated constant-current supply for catalytic bead sensors and accurately measures bridge output signals from gas detectors. This design ensures stable sensor operation and improves measurement reliability in combustible gas monitoring applications. The wide signal range of 05704-A-0144 allows compatibility with different catalytic sensor configurations.
Honeywell 05704-A-0144 integrates intelligent microprocessor-based control functions, enabling configurable alarm thresholds, fault monitoring, and display management. The module continuously evaluates gas concentration signals and provides visual indication of channel status, alarm conditions, and system faults. This allows operators to respond quickly to potentially dangerous gas events.
The front-panel interface of 05704-A-0144 includes an LCD display and LED indicators for each monitoring channel. Operators can view gas readings, alarm states, and fault conditions directly at the control panel without requiring additional diagnostic equipment. The alarm reset and channel selection functions simplify daily operation and maintenance procedures.
Another important advantage of Honeywell 05704-A-0144 is its modular design. As part of the System 57 platform, the control card can be installed alongside other interface and relay modules, allowing engineers to customize gas detection systems according to plant requirements. Optional analog output modules enable connection to remote monitoring systems, PLCs, or DCS platforms.
Honeywell 05704-A-0144 is designed for continuous industrial operation with strong reliability and long service life. Its compact 3U rack format simplifies installation in control cabinets while maintaining easy access for maintenance and replacement.
With accurate catalytic sensor measurement, multi-channel monitoring, flexible alarm functions, and proven Honeywell safety technology, 05704-A-0144 remains a dependable component for industrial gas detection systems.
Applications
Honeywell 05704-A-0144 is primarily used in fixed gas detection systems where continuous monitoring of combustible gases is required. In oil and gas production facilities, 05704-A-0144 is installed to monitor hazardous areas such as compressor stations, processing units, storage areas, and equipment rooms where gas leakage could create safety risks.
In petrochemical and chemical processing plants, Honeywell 05704-A-0144 provides reliable combustible gas detection for production areas, chemical storage zones, and process equipment. The module helps safety systems identify abnormal gas concentrations and initiate appropriate alarms or protective actions.
Power generation facilities use 05704-A-0144 for monitoring fuel gas systems, turbine enclosures, boiler areas, and auxiliary equipment rooms. Early detection of combustible gases helps improve plant safety and reduce the risk of fire or explosion events.
Offshore platforms and marine facilities benefit from Honeywell 05704-A-0144 because of its compact design and reliable operation in demanding environments. The module can support distributed gas monitoring networks where multiple sensors must be supervised from a centralized location.
Industrial manufacturing plants, warehouses, and utility facilities also utilize 05704-A-0144 for protecting personnel, equipment, and production assets from combustible gas hazards.
Typical application areas include:
- Oil and gas facilities
- Petrochemical plants
- Chemical processing systems
- Offshore platforms
- Power generation plants
- Gas compressor stations
- Industrial safety systems
- Fixed combustible gas detection networks
- Process automation safety systems
Related Products
Honeywell 05704-A-0145 — Four-channel control card for 4–20 mA gas detector inputs, similar to 05704-A-0144 but designed for current-loop sensors.
Honeywell 05704-A-0121 — Quad relay interface card for System 57 alarm and control output expansion.
Honeywell 05704-A-0131 — Relay interface assembly for multiple relay output applications within System 57.
Honeywell 05704-C-0160 — System 57 interconnection cable used for module integration.
Honeywell 05704-A-0146 — 5704F fire control card variant for fire detection applications.
Honeywell 05701-A-0351 — Single-channel catalytic sensor drive/control module for System 57/5701 systems.
Honeywell System 57 Engineering Card — Configuration and maintenance module for System 57 control systems.
Honeywell System 57 Power Supply Module — Power component used to support System 57 rack-based installations.
