Description
Product Features
The 05701-A-0302 is an industrial-grade high-precision monitoring and control module designed for critical industrial automation, process safety monitoring and equipment condition detection systems. Featuring optimized low-noise circuit architecture and professional industrial signal processing technology, this module acts as a core signal collection, data analysis and logic control unit for on-site industrial monitoring equipment. It delivers outstanding precision signal acquisition, powerful anti-interference performance, comprehensive intelligent diagnosis and universal system compatibility. Designed for 24/7 continuous operation in harsh industrial environments, it provides stable, accurate and reliable data monitoring and system linkage support for petrochemical, power, metallurgy and intelligent manufacturing industries.
1. Ultra-high Precision Signal Acquisition: Adopts high-resolution dedicated sampling chips and optimized signal filtering algorithms. The module supports high-precision collection of various industrial analog and digital signals, effectively filtering out environmental noise and signal interference, ensuring real-time, accurate and repeatable monitoring data output.
2. Superior Industrial Anti-interference Performance: Built with multi-layer electromagnetic shielding structure and anti-surge protection circuit, fully compliant with IEC industrial EMC standards. It can effectively resist strong electromagnetic radiation, voltage surges, static interference and signal crosstalk in complex industrial workshops, maintaining stable signal transmission and normal operation.
3. Full-range Intelligent Self-diagnosis System: Integrates professional hardware and software dual self-diagnosis functions, which continuously monitors module operating temperature, power supply status, circuit health and communication link quality. It automatically captures abnormal faults, generates accurate alarm codes and logs, greatly improving the efficiency of on-site troubleshooting and equipment maintenance.
4. Powerful System Compatibility & Scalability: Perfectly compatible with mainstream industrial PLC, DCS and industrial monitoring host systems. It supports multiple standard industrial communication protocols, enabling fast data interaction and seamless system docking. The standardized design facilitates secondary development, system expansion and equipment upgrading.
5. Harsh Environment Ultra-adaptability: The core circuit board is coated with industrial conformal coating, featuring excellent dust-proof, moisture-proof, anti-corrosion and anti-condensation capabilities. The reinforced mechanical structure resists vibration and impact, ensuring stable operation in high-temperature, high-humidity, dusty and corrosive industrial scenarios for a long time.
6. High Stability & Low Failure Rate: Selects high-grade industrial electronic components and adopts scientific heat dissipation layout, with low heat generation and low power consumption. It can withstand long-term high-load continuous operation, effectively reducing equipment downtime and overall industrial operation and maintenance costs.
7. Compact Modular Standard Design: Adopts integrated compact modular structure with unified industrial standard size. It supports fast plug-and-play installation and replacement, simplifies on-site cabinet layout, saves installation space and greatly improves construction and maintenance efficiency.
8. Multi-level Electrical Safety Protection: Equipped with built-in overvoltage, overcurrent, short-circuit and overload automatic protection mechanisms. When abnormal electrical conditions occur, the module will trigger rapid interlock protection to cut off faulty circuits, protecting the module itself and the entire industrial control system from damage.

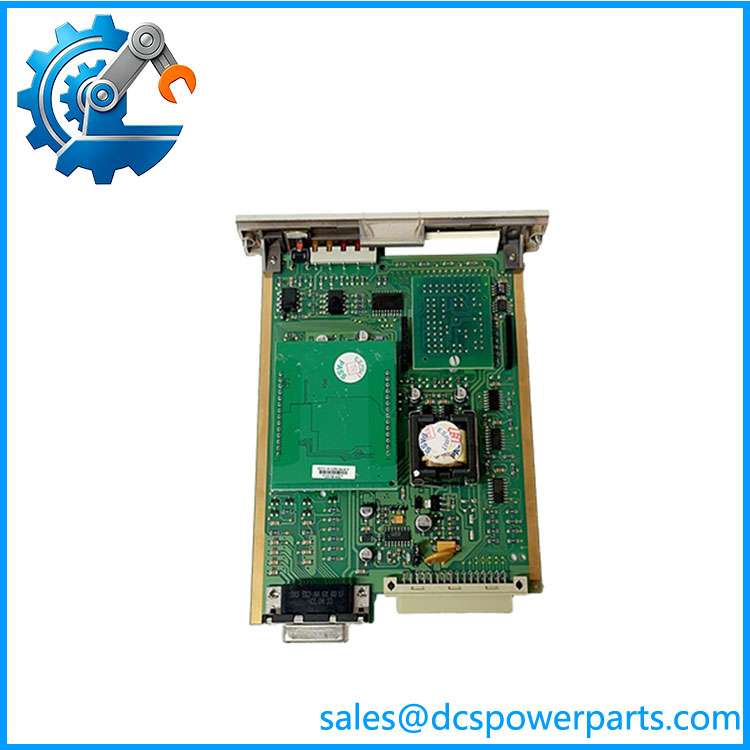

05701-A-0302
Product Parameters
|
Item
|
Specification
|
|
Product Model
|
05701-A-0302
|
|
Product Type
|
Industrial High-precision Monitoring & Control Module
|
|
Applicable System
|
Industrial DCS/PLC System, Process Safety Monitoring System, Industrial Automatic Control System
|
|
Core Functions
|
High-precision field signal acquisition, real-time data processing, system communication transmission, intelligent fault diagnosis, safety interlock protection
|
|
Signal Processing Performance
|
High-resolution sampling, low noise interference, fast response speed, high data accuracy
|
|
Communication Protocol
|
Support Multiple Standard Industrial Communication Protocols
|
|
EMC Standard
|
Compliant with IEC 61000 Industrial Electromagnetic Compatibility Standards
|
|
Protection Mechanism
|
Overvoltage, Overcurrent, Short-circuit, Overload Automatic Protection & System Interlock
|
|
Diagnostic Function
|
Real-time module operating status self-diagnosis, fault alarm prompt and operation log storage
|
|
Surface Protection
|
Industrial Conformal Coating, Dustproof, Moisture-proof, Anti-corrosion, Anti-aging
|
|
Power Supply Mode
|
Standard Industrial DC Stable Power Supply
|
|
Operating Temperature Range
|
-20℃ ~ +65℃
|
|
Storage Temperature Range
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5%~95% Non-condensing Industrial Environment
|
|
Structural Performance
|
Industrial-grade Reinforced Anti-vibration & Anti-shock Structure
|
|
Installation Method
|
Standard Cabinet Rack & DIN Rail Fixed Installation
|
|
Operating Characteristic
|
Support 24/7 Long-term Uninterrupted High-load Stable Operation
|
Product Usage Method
1. Pre-installation Inspection: Conduct a comprehensive appearance and performance inspection on the 05701-A-0302 module. Check the shell integrity, circuit board flatness, terminal tightness and indicator light status to confirm no damage, oxidation or loose components. Verify the module model to ensure complete matching and compatibility with on-site industrial control and monitoring systems.
2. Static Protection & Environment Preparation: Complete the installation in a dry, dust-free, ventilated and temperature-stable industrial control cabinet. Wear professional anti-static gloves and anti-static wrist straps during operation to prevent static electricity from damaging internal precision chips and circuits, ensuring safe and standardized construction operations.
3. Module Installation & Fixation: Fix the module on a standard cabinet rack or DIN rail, adjust the horizontal level of the equipment, and tighten the fixing bolts evenly. Ensure firm mechanical fixation to avoid signal fluctuation, poor contact and operational faults caused by long-term equipment vibration and on-site mechanical impact.
4. Standard Wiring Connection: Complete power supply wiring, field signal wiring, communication bus wiring and grounding wiring in strict accordance with industrial electrical safety specifications. Strictly distinguish power terminals, signal terminals and communication terminals to avoid wrong wiring, short circuit and signal crosstalk, and keep the wiring neat, standardized and firm.
5. System Configuration & Parameter Debugging: After confirming all wiring is correct, connect the upper computer configuration software or industrial control host. Set signal sampling parameters, communication baud rate, monitoring threshold and safety protection parameters according to on-site production process requirements, then download and save the configuration data to complete system adaptation.
6. Power-on Test & Function Verification: Perform segmented power-on detection to activate the module’s built-in self-diagnosis program. Observe the indicator status to confirm normal power supply and communication link connection. Simulate field signal changes and fault conditions to verify the accuracy of signal acquisition and the effectiveness of protection functions, ensuring no abnormal alarms or functional failures.
7. Daily Operation & Regular Maintenance: After passing the debugging test, the module can be put into long-term formal operation. Regularly inspect the module operating temperature, terminal connection status and system communication quality, clean surface dust and heat dissipation channels periodically, back up operation logs and fault data, and eliminate potential hidden dangers to ensure long-term stable operation of the industrial monitoring system.
Product Application Fields
1. Petrochemical Industry: Widely applied in process monitoring and safety control systems of oil extraction, refining and chemical production devices. It collects key process parameters in real time, monitors equipment operating status, and provides accurate data support for process adjustment and safety early warning to ensure stable and safe chemical production.
2. Power & Energy Industry: Deployed in monitoring systems of thermal power plants, new energy power stations and power distribution equipment. It realizes high-precision monitoring of power equipment operating parameters, assists in equipment fault judgment and state evaluation, and guarantees the safe and stable operation of power system equipment.
3. Industrial DCS/PLC Control System: Used as a core high-precision signal acquisition and transmission module in automated industrial control systems. It provides reliable field data for automatic operation of production equipment, improves the precision and automation level of industrial production, and reduces manual operation errors.
4. Metallurgy & Heavy Industry: Suitable for equipment condition monitoring and process parameter detection in metallurgical smelting, rolling and heavy machinery production lines. Adapting to high-dust and strong-vibration harsh working conditions, it ensures continuous and stable monitoring of heavy industrial production equipment.
5. Intelligent Manufacturing & Precision Testing: Universally applied in intelligent production lines, automated testing equipment and precision industrial monitoring scenarios. It provides high-precision signal monitoring and safety protection functions for refined manufacturing and intelligent equipment operation, improving production quality and operational reliability.
