Description
Product Overview

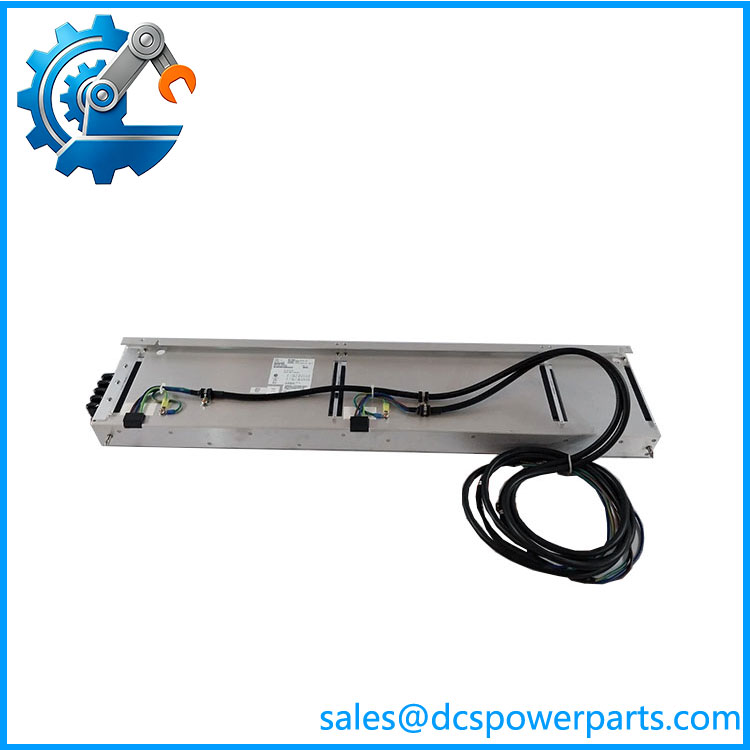

The Honeywell SPS5713 51199930-100 is a main rack power supply assembly designed for Honeywell industrial control and safety system installations. This module converts incoming AC power into regulated 24–26VDC output for supplying control racks, processors, communication interfaces, and field-related automation hardware. The Honeywell SPS5713 51199930-100 is identified as a TDI Power Main Rack assembly and is used where stable power distribution is required for continuous process operation.
The Honeywell SPS5713 51199930-100 operates as a power infrastructure component rather than a logic-processing device. It does not execute application programs or perform control calculations; instead, it provides the electrical foundation required for Honeywell safety PLC and automation hardware to operate correctly. With a 100–240VAC input range and 24–26VDC output capability at up to 20A, this rack power unit supports demanding industrial control environments.
Within Honeywell automation architectures, reliable power delivery directly affects controller availability, I/O communication, and system diagnostics. The Honeywell SPS5713 51199930-100 is commonly applied in process industries where safety-related control equipment requires dependable rack-level power. Its hazardous area certifications, including Class I Division 2 and Zone 2 suitability, allow installation in approved industrial environments when system design requirements are satisfied.
For engineers maintaining installed Honeywell systems, replacement requires more than confirming the catalog number. To be completely transparent, technicians should verify rack configuration, current loading, wiring arrangement, input protection, and environmental conditions before installation. A power supply replacement should also include inspection of downstream modules because overcurrent events or thermal issues may originate outside the supply itself.
The practical value of the Honeywell SPS5713 51199930-100 is preserving existing safety and process control infrastructure without changing the original rack power design. After installation, voltage stability checks, alarm verification, and load testing should be completed before returning the system to normal operation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | |
| Part Number | 51199930-100 |
| Manufacturer | Honeywell |
| Product Type | Main Rack Power Supply Module |
| System Application | Honeywell Safety PLC / Industrial Control Systems |
| Input Voltage | 100–240VAC |
| Input Frequency | 47–63Hz |
| Input Current | 10A maximum |
| Output Voltage | 24–26VDC |
| Output Current | 20A |
| Maximum Ambient Temperature | 60°C |
| Hazardous Area Rating | Class I Division 2 / Zone 2 (when installed per requirements) |
| Mounting Type | Control rack / cabinet installation |
| Function | DC power distribution for control hardware |
| Associated Assembly | TDI Power Main Rack |
| Typical Use | Safety systems, process control racks, industrial automation cabinets |
SPS5713
Related Products
- Honeywell 51199930-100 Rev A — Same base power rack assembly with revision identification. Suitable when the installed system requires matching hardware revision.
- Honeywell SPS5984-LF 51454235-100 — Related Honeywell power supply module. Used for different rack power requirements and should not be considered a direct replacement without verification.
- Honeywell CC-PWRB01 51304337-150 — Control system power-related module used within Honeywell control platforms. Supports different rack power applications.
- Honeywell CC-PCNT01 51109693-100 — Controller-related module used in Honeywell control architectures. Performs processing functions rather than power conversion.
- Honeywell CC-PAIH01 / CC-PAIN01 Series Modules — I/O interface modules commonly found in Honeywell Experion and process control systems. Require compatible rack power infrastructure.
- Honeywell FSC Fail Safe Controller Hardware — Safety controller platform where dependable power supply operation is critical.
- Honeywell TDC/TPS Control System Components — Legacy Honeywell process control hardware supported by dedicated rack power solutions.
Frequently Asked Questions (FAQ)
1. What is the Honeywell 51199930-100 used for?
The Honeywell 51199930-100 is a main rack power supply module used to provide regulated 24–26VDC power to Honeywell control system hardware. It supports the electrical requirements of rack-mounted processors, I/O modules, and communication components.
2. Can I hot-swap the Honeywell 51199930-100?
Normally, no. Power supply replacement should be performed under controlled maintenance conditions.
Recommended steps:
- Confirm system shutdown requirements.
- Measure and verify incoming power isolation.
- Record wiring and rack connections.
- Replace the power supply module.
- Confirm output voltage before reconnecting loads.
3. Does the Honeywell support firmware v3.1?
No firmware version typically applies to this module because it is a power supply assembly.
Compatibility depends on:
- Rack hardware configuration
- Power requirements
- Installed Honeywell system architecture
- Load capacity requirements
4. Will replacing the Honeywell 51199930-100 erase my control logic?
No. The provides electrical power and does not store application logic.
After replacement, engineers should verify:
- Controller startup status
- I/O module communication
- DC voltage stability
- System diagnostics
5. How can I verify a New Surplus Honeywell 51199930-100?
Recommended inspection steps:
- Confirm part number: 51199930-100.
- Verify identification label.
- Inspect terminals and connectors.
- Check enclosure condition.
- Measure output voltage before connecting system loads.
6. What failures are commonly associated with modules?
Typical issues may include:
- Output voltage instability
- Internal component aging
- Thermal stress
- Input protection faults
- Overloaded downstream circuits
A failed power supply should be evaluated together with connected rack modules.
7. Is the Honeywell 51199930-100 suitable for control system upgrades?
It is mainly used for maintaining existing Honeywell installations. For modernization projects, engineers should evaluate the complete control architecture, rack design, power requirements, and migration plan before changing the power subsystem.
