Description
Product Overview
Honeywell 05704-A-0145 is a four-channel 4–20 mA input control card designed for the Honeywell Analytics Zellweger System 57 gas detection platform. It is a modular gas monitoring interface unit that provides signal processing, display, alarm management, and control functions for up to four connected gas detectors using industry-standard 4–20 mA current loop signals. As a key component of the System 57 / 5704 control system, 05704-A-0145 enables reliable integration of intelligent gas transmitters into industrial safety monitoring networks.
Honeywell 05704-A-0145 is specifically designed for gas detectors and transmitters that provide 4–20 mA output signals. The module receives analog measurement signals from field transmitters, converts and processes the input data through a microprocessor-based control system, and provides local indication, alarm handling, fault monitoring, and optional remote output functions. Unlike the catalytic sensor version 05704-A-0144, the 05704-A-0145 model is optimized for current-loop gas detection devices commonly used in modern fixed gas monitoring installations.
Honeywell 05704-A-0145 provides a compact and flexible solution for hazardous area gas monitoring applications. With four independent input channels, configurable alarm thresholds, backlit LCD display, LED status indicators, and compatibility with System 57 relay and analog output expansion modules, 05704-A-0145 is widely applied in oil and gas, petrochemical, power generation, marine, and industrial safety systems requiring continuous gas detection and dependable alarm response.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 05704-A-0145 |
| Manufacturer | Honeywell Analytics |
| Product Type | Four Channel Control Card |
| System Platform | Honeywell Zellweger System 57 / 5704 |
| Input Type | 4–20 mA current loop input |
| Number of Channels | 4 independent gas detector channels |
| Application | Fixed gas detection and safety monitoring |
| Measurement Range | 0–25 mA linear input measurement |
| Loop Supply Voltage | 24 VDC ±5% isolated |
| Maximum Loop Resistance | 500 Ω including sensor |
| Power Consumption | Approx. 8.3 W maximum / 7.5 W typical |
| Display Type | Backlit LCD |
| Display Function | Digital value, bar graph, peak reading, status indication |
| Alarm Indicators | A1, A2, A3, Fault, Inhibit LEDs |
| Remote Functions | Remote inhibit and alarm reset |
| Analog Output Option | 0–20 mA or 4–20 mA isolated output module support |
| Input Protection | Short circuit and open circuit protection |
| Isolation Voltage | Greater than ±50 VDC to system 0V |
| Operating Temperature | -5°C to +55°C |
| Storage Temperature | -25°C to +55°C |
| Humidity Range | 20–90% RH non-condensing |
| Dimensions | 3U × 25 mm wide × approximately 172 mm deep |
| Weight | Approx. 165–170 g |
| Mounting Type | System 57 rack mounting |

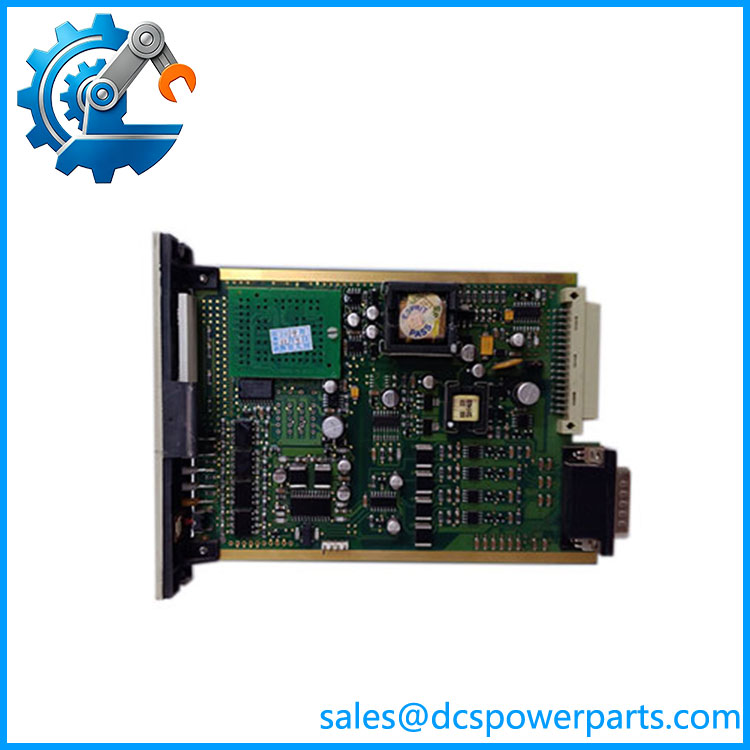

05704-A-0145
Main Features and Advantages
Honeywell 05704-A-0145 provides a reliable interface between field gas transmitters and centralized safety monitoring systems. Its four-channel design allows multiple gas detectors to be connected within a single compact module, reducing control cabinet space requirements while maintaining independent monitoring capability for each detection point.
The primary advantage of Honeywell 05704-A-0145 is its compatibility with standard 4–20 mA gas detection transmitters. The 4–20 mA current loop is widely used in industrial instrumentation because of its strong noise immunity and ability to transmit signals over long distances. By supporting this industry-standard interface, 05704-A-0145 can integrate with a wide range of combustible gas, toxic gas, and oxygen monitoring transmitters.
Honeywell 05704-A-0145 incorporates intelligent microprocessor-based signal processing technology. The module continuously evaluates incoming current signals, converts them into gas concentration values, and manages alarm logic according to configured parameters. This ensures accurate monitoring and rapid response when hazardous gas levels exceed preset limits.
The integrated display and alarm indication functions of 05704-A-0145 improve operator visibility. The front-panel LCD provides gas concentration readings, channel identification, and system status information, while dedicated LEDs indicate alarm levels, faults, and inhibit conditions. This allows operators to quickly understand system status without requiring external diagnostic equipment.
Another important feature of Honeywell 05704-A-0145 is its flexible expansion capability. The module supports optional analog output modules and relay interface modules, allowing connection to PLC systems, DCS platforms, SCADA systems, and external alarm devices. This modular architecture enables users to customize gas detection systems according to plant requirements.
Honeywell 05704-A-0145 also provides advanced fault monitoring functions. The module can detect abnormal conditions such as signal loss, wiring problems, and communication issues, helping maintenance personnel identify problems quickly and improve system availability.
The compact mechanical design of 05704-A-0145 makes it suitable for dense control cabinet installations. The plug-in module structure simplifies replacement and maintenance activities, reducing system downtime during servicing.
With reliable 4–20 mA signal processing, multi-channel monitoring, flexible expansion options, and proven Honeywell safety technology, 05704-A-0145 is an effective solution for industrial gas detection control applications.
Applications
Honeywell 05704-A-0145 is widely used in fixed gas detection systems where multiple 4–20 mA gas transmitters require centralized monitoring and alarm management. In oil and gas facilities, 05704-A-0145 is commonly installed in control rooms and safety panels to monitor combustible and toxic gases around processing equipment, storage tanks, pipelines, and compressor stations.
In petrochemical and chemical plants, Honeywell 05704-A-0145 provides continuous monitoring of hazardous gases such as hydrocarbons, hydrogen sulfide, ammonia, and other process-related gases. The module enables operators to receive early warnings and initiate emergency procedures before dangerous conditions develop.
Power generation facilities use 05704-A-0145 for monitoring fuel gas systems, turbine enclosures, boiler areas, battery rooms, and auxiliary equipment spaces. Reliable gas detection helps improve plant safety and reduce the risk of fire or explosion.
Offshore platforms, LNG terminals, and marine facilities benefit from Honeywell 05704-A-0145 because of its compact design and ability to manage multiple remote gas detectors through standard current-loop connections.
Industrial manufacturing plants, wastewater treatment facilities, and utility installations also use 05704-A-0145 for personnel protection and process safety monitoring.
Typical application areas include:
- Oil and gas production facilities
- Petrochemical plants
- Chemical processing systems
- Offshore platforms
- LNG facilities
- Power generation plants
- Industrial safety systems
- Fixed gas monitoring networks
- SCADA-connected safety systems
