Honeywell CC-IP0101 | 51410056-175 PROFIBUS DP Gateway

Description

Key Technical Specifications

The strongest technical references identify CC-IP0101 / 51410056-175 as a PROFIBUS DP Gateway Module. One technical description specifies communication from 9.6 kbps to 12 Mbps, support for up to 127 PROFIBUS DP devices, and two DP networks per module.

I would not use some secondary listings that describe this part as an analog input, digital I/O, or IP/Ethernet gateway. Those descriptions conflict with the more consistent PROFIBUS DP Gateway / Fieldbus Module identification.

Application Scenarios & Pain Points

A PROFIBUS gateway failure can take down a group of otherwise healthy field devices at once. That is why troubleshooting should start at the common communication point rather than replacing transmitters one by one.

• Honeywell C300 process control: CC-IP0101 provides the gateway interface between the Honeywell control architecture and PROFIBUS DP field networks.
• Dual PROFIBUS networks: The documented architecture can support two DP networks per gateway, useful where the control design uses separate or redundant fieldbus segments.
• Legacy process plants: Particularly useful when an existing Series 8/C300 installation contains PROFIBUS instrumentation that cannot simply be converted to another fieldbus.
• DCS migration projects: The gateway can remain an important interface when portions of an older fieldbus network are retained during staged system modernization.

Field note: A dead PROFIBUS segment does not automatically mean the CC-IP0101 has failed. Check the DP connector, termination, bus voltage, slave diagnostics, network configuration, and gateway status first.

Brief Field Case

A process unit can show dozens of PROFIBUS communication alarms within seconds when the gateway or its common network connection fails. In that situation, replacing individual pressure or flow transmitters wastes maintenance time. Check the gateway and the physical bus first; if every affected device disappears together, the common path is usually the better starting point.

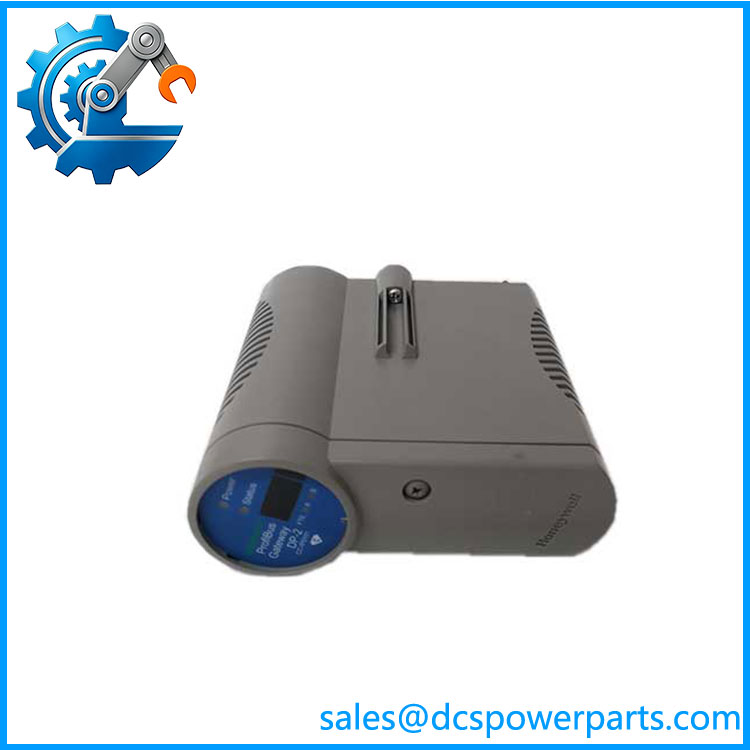

CC-IP0101-51410056-175

Related Products

• Honeywell CC-IP0101 / 51410056-175 — Subject PROFIBUS DP Gateway Module. Intended for the Series 8/C300 fieldbus architecture.
• Honeywell CC-TP0X01 — Series 8 fieldbus-module backplane/interface hardware. It provides the mounting and connection environment for applicable fieldbus modules.
• Honeywell CC-PWRR01 — Related Series 8 redundant power hardware. Supports the module infrastructure but does not perform PROFIBUS communication.
• Honeywell CC-PWRN01 — Series 8 power-supply module used for system power distribution. Complementary hardware rather than a gateway substitute.
• Honeywell C300 Controller — Controller platform that interfaces with the Series 8 I/O architecture. The CC-IP0101 is a fieldbus gateway rather than the controller itself.
• Honeywell Series 8 I/O Modules — Complementary I/O family used on the C300 I/O architecture. These modules handle conventional field signals while CC- handles PROFIBUS integration.
• Honeywell CC-PAIM01 — Series C I/O interface hardware. It occupies a different functional position and should not be considered a PROFIBUS gateway replacement.
• Honeywell CC-TAIX01 / CC-TAIX11 — Analog input IOTA variants. These acquire analog field signals and are complementary to the CC- rather than replacements.
• Honeywell CC-TDIL01 / CC-TDIL11 — 24 VDC digital-input IOTA modules. Used for discrete signals instead of PROFIBUS network communication.

The Engineer’s Guide: Field Pitfalls to Avoid

WARNING 1 — Do not mistake CC- for a generic Ethernet gateway.

The consistent product identification is PROFIBUS DP Gateway Module. Some online records incorrectly describe it as an IP-based communication bridge or general-purpose digital I/O module.

How to avoid it: Confirm the original module label and the installed network type. If the cabinet documentation specifies PROFIBUS DP, the gateway configuration must match it.

WARNING 2 — Check the DP network topology before replacing the module.

A CC- installation may use two DP networks and optional redundancy. Simply moving one cable from the old module to a replacement without documenting Line A/Line B configuration can create a second fault.

How to avoid it: Photograph both PROFIBUS connections before removal and record which segment is connected to each port.

WARNING 3 — Do not ignore termination and slave-address configuration.

PROFIBUS is sensitive to physical-layer errors. A failed terminator or duplicate slave address can produce symptoms that look remarkably similar to a gateway failure.

How to avoid it: Check termination, cable shielding, connector condition, slave addresses, baud-rate configuration, and diagnostic counters before condemning the CC-.

Frequently Asked Questions (FAQ)

What is Honeywell CC- 51410056-175?

CC- 51410056-175 is a Honeywell PROFIBUS DP Gateway Module, also described as a fieldbus module. It provides the interface between Honeywell’s control architecture and PROFIBUS DP networks.

It is not a conventional analog-input or digital-output module.

Is CC- used with Honeywell ?

Yes. Technical documentation associates the PROFIBUS gateway architecture with the Honeywell / Series 8 I/O environment. The gateway mounts within the same general Series 8 hardware architecture and can support two PROFIBUS DP networks per module.

The exact controller and I/O configuration should still be verified before replacement.

How many PROFIBUS networks can CC- support?

Available technical documentation states that the PGM can support two DP networks per module, with optional redundancy.

That makes the exact port assignment important during field replacement.

What PROFIBUS speed does CC- support?

A technical specification for CC- 51410056-175 lists PROFIBUS communication rates from 9.6 kbps through 12 Mbps.

The actual operating rate is determined by the network configuration and connected devices.

Is 51410056-175 the same as CC-?

Yes. is the model designation, while 51410056-175 is the associated Honeywell part/order number used to identify the module. Multiple technical listings pair these two identifiers.

For purchasing, specify both numbers.

Can I replace CC- with another Honeywell fieldbus module?

Not based on physical appearance alone. Different Honeywell fieldbus modules can occupy similar Series 8 hardware positions while supporting different communication protocols or functions.

Before substitution, verify:

• Part number
• Hardware revision
• PROFIBUS network count
• Redundancy configuration
• configuration
• Firmware compatibility
• Existing field-device topology

What should I ask for when buying a refurbished CC-?

For a shutdown-critical spare, request:

1. Actual photographs showing CC- / 51410056-175.
2. Hardware revision and serial information.
3. Confirmation of PROFIBUS DP functional testing.
4. Verification of both DP network interfaces where applicable.
5. Power-up and diagnostic test results.
6. Condition of connectors and backplane contacts.
7. Test report.
8. Warranty terms.

A module that merely powers up has not necessarily passed a meaningful PROFIBUS communication test.

Is CC- discontinued?

Some current secondary inventory records explicitly identify CC- 51410056-175 as discontinued by the manufacturer.

For an operating installation, that makes spare-parts planning important. If this module is part of a production-critical PROFIBUS network, keeping at least one verified spare with the exact part number and hardware revision can reduce the risk of an extended outage.
