Description
Product Overview

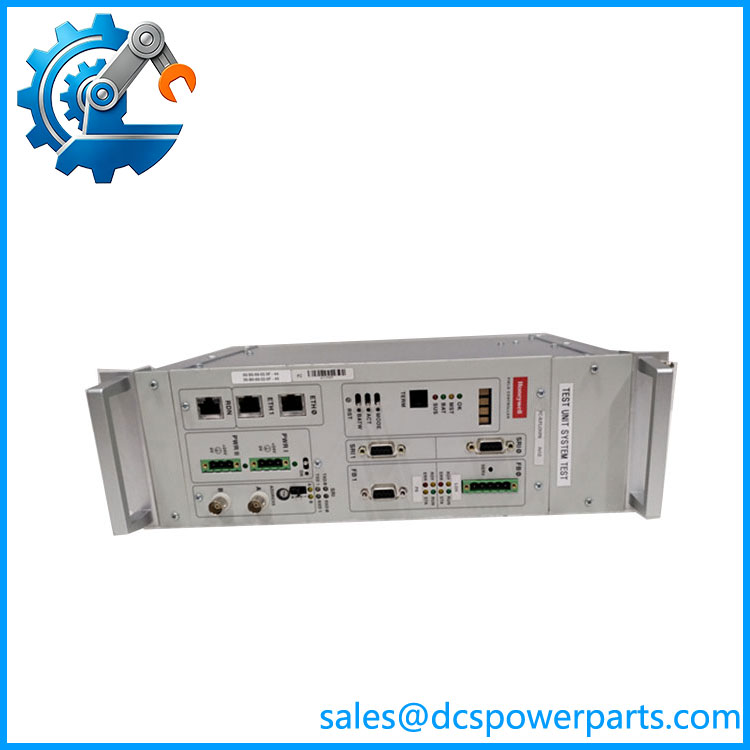

FC-R/PB2/N/12 is a Profibus DP Remote I/O Station Module manufactured by Honeywell for Experion PKS Distributed Control System.
This integrated mixed I/O slave module communicates with Experion controllers via Profibus DP-V0/DP-V1 fieldbus. It collects field digital signals and outputs control commands to on-site actuators, widely used in chemical, oil & gas, power plant auxiliary monitoring and pulp & paper DCS systems.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | FC-R/PB2/N/12 |
| Module Type | Profibus DP Mixed Digital I/O Slave Module |
| Manufacturer | Honeywell |
| Applicable Platform | Experion PKS DCS |
| Channel Configuration | 16DI + 16DO |
| Digital Input | 24 VDC, sink/source configurable; open circuit detection |
| Digital Output | 24 VDC, 0.5 A per channel, short-circuit protection |
| Fieldbus Interface | Profibus DP (DP-V0 / DP-V1) |
| Baud Rate Range | 9.6 kbps ~ 12 Mbps |
| Isolation | Group isolation, withstand 500 VAC dielectric strength |
| Control Power | 24 VDC (±10%) |
| Mounting Method | DIN rail cabinet installation |
| Hot Swap | Supported within compatible rack configuration |
| Operating Temperature | -20 ℃ ~ +60 ℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Protection Class | IP20 (control cabinet mounting) |
| Front Panel Indicators | Power, Run, Fault, Channel status LEDs |
| Engineering Tool | Experion Engineering Station |
| Spare Part Status | OEM production discontinued; surplus new & refurbished spare modules available |
FC-RPB2N12
Key Features
- Mixed DI/DO integrated design, reduces cabinet module quantity and wiring workload
- Supports Profibus DP-V1 acyclic communication, realizes remote parameter reading and device diagnosis
- Built-in per-channel self-diagnosis: detects sensor open circuit, output overload and short circuit
- Compatible with standard Profibus GSD file, easy integration with third-party PLC and SCADA
- Compact DIN rail structure, convenient for distributed signal collection near field equipment
- Anti-surge PCB layout, stable operation under complex electromagnetic interference in heavy industrial sites
- Strict full part number verification required; different suffix variants cannot be directly interchanged without project reconfiguration
Application Scope
Petrochemical plant Experion PKS distributed control cabinets, thermal power plant auxiliary equipment signal acquisition, oil & gas processing automation systems, pulp and paper mill DCS remote I/O racks, water conservancy automation monitoring, and maintenance & retrofit projects of legacy Honeywell Experion DCS equipment.
