Honeywell CC-PUIO01 51454205-175 Product Description
Product Overview

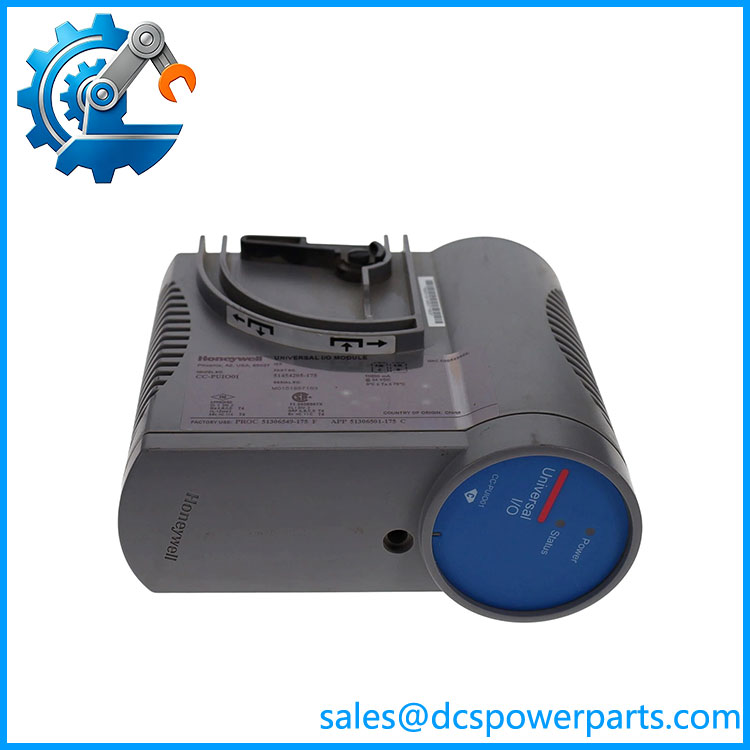

Honeywell CC-PUIO01 51454205-175 is a Universal Input/Output (UIO) module belonging to the Honeywell Experion Series C I/O family. It is designed to interface a wide range of field devices with Honeywell process control systems, allowing individual channels to be configured for analog input, analog output, digital input, or digital output functions. According to Honeywell’s official Series-C I/O specification, the Honeywell CC-PUIO01 51454205-175 supports HART 7 for analog I/O, pulse input on channels 15–18, open-wire detection, fast-scan operation, and configurable safe-state behavior.
The CC-PUIO01 51454205-175 Honeywell is intended for flexible signal acquisition and control in Experion PKS architectures. Its universal-channel concept reduces the need to stock multiple dedicated I/O module types and allows control engineers to configure channels according to actual field requirements. The module can interface with analog and digital field devices while providing electronic short-circuit protection and support for demanding industrial environments.
As a Series C lifecycle component, Honeywell CC-PUIO01 51454205-175 remains particularly valuable as a spare for installed systems. Honeywell documentation identifies CC-PUIO01 and its associated IOTA modules as spare-supported hardware for the installed base, while recommending the newer CC-PUIO31 family for newer Experion R432-and-above greenfield and brownfield expansion projects.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | CC-PUIO01 51454205-175 |
| Manufacturer | Honeywell |
| Product Type | Universal Input/Output (UIO) Module |
| Product Family | Experion Series C I/O |
| Application | DCS / Process Automation / Distributed I/O |
| Channel Configuration | Analog Input, Analog Output, Digital Input, Digital Output |
| HART Support | HART 7 for Analog I/O |
| Pulse Input | Channels 15–18 |
| Fast Scan | Supported |
| Open-Wire Detection | Supported |
| Short-Circuit Protection | Electronic protection provided |
| Output Safe State | Configurable FAILOPT behavior |
| IOTA Options | CC-TUIO01 non-redundant / CC-TUIO11 redundant |
| Ambient Temperature | -40°C to +70°C |
| Installation | Series C I/O carrier / IOTA |
| System Integration | Honeywell Experion Series C architecture |
Note: Exact channel electrical characteristics depend on the configured I/O function and associated IOTA. Honeywell’s official specification should be used for project-level wiring and certification requirements.
Main Features and Advantages
Universal Channel Configuration
The primary advantage of Honeywell CC-PUIO01 51454205-175 is its flexible channel architecture. Rather than requiring separate modules for every signal type, the Series C UIO allows channels to be configured as analog or digital inputs and outputs. This provides greater flexibility during control-system engineering, cabinet design, commissioning, and future process modifications.
Integrated HART and Field Diagnostics
The CC-PUIO01 51454205-175 Honeywell supports HART 7 communication on analog I/O channels, enabling process instruments and their associated diagnostic information to be integrated into the control architecture. Open-wire detection and electronic short-circuit protection further improve field signal integrity and help maintenance personnel identify wiring or field-device problems.
Fast and Flexible Process Signal Handling
Fast-scan capability allows selected signals to receive priority I/O scanning where process dynamics require faster acquisition. Pulse input capability on channels 15–18 also expands the module’s usefulness beyond conventional analog and discrete signals, making it suitable for a broader range of process instrumentation and equipment interfaces.
CC-PUIO01
Suitable for Redundant Architectures
Series C I/O supports redundant configurations, and the CC-PUIO01 can be used with the appropriate redundant IOTA arrangement. This is valuable for critical process applications where a single I/O hardware failure should not unnecessarily interrupt production or compromise control-system availability.
Extended Environmental Capability
The official Honeywell specification gives the module an extended ambient operating range of -40°C to +70°C, making it suitable for a broad range of industrial cabinet and remote-I/O environments. The Series C architecture also incorporates cabinet heat-management features designed to improve installation efficiency.
Lifecycle Maintenance Value
For existing Experion Series C installations, Honeywell CC-PUIO01 51454205-175 is especially useful as a maintenance spare. Honeywell’s documentation explicitly identifies CC-PUIO01 as supported spare hardware for the installed base. For newer system expansion projects, Honeywell recommends the CC-PUIO31 family beginning with Experion R432 and above.
Application Fields
Honeywell CC-PUIO01 51454205-175 is primarily used in process industries requiring flexible and reliable DCS field interfacing. In oil and gas and petrochemical facilities, it can connect pressure, flow, temperature, level, valve-position, and discrete equipment signals to the Experion control system. HART support is particularly useful where intelligent field transmitters require both process-variable acquisition and instrument diagnostics.
In chemical processing and power generation, the CC-PUIO01 51454205-175 Honeywell can interface process instrumentation, motor status signals, control valves, and auxiliary equipment. Its configurable channels allow the same hardware platform to accommodate different plant signal requirements, simplifying spare-parts management and system maintenance.
The module is also suitable for pulp and paper, refining, utilities, and other continuous-process manufacturing environments. Its fast-scan capability can be applied to selected dynamic signals, while pulse-input channels provide additional flexibility for equipment measurement. The module can be incorporated into local or remote Series C I/O installations and, where required, redundant I/O architectures.
For legacy Experion installations, Honeywell CC-PUIO01 51454205-175 is particularly valuable for system lifecycle support, replacement of failed I/O hardware, and maintaining existing control-system configurations without unnecessary cabinet redesign. Honeywell documentation confirms its spare availability for the installed base.
