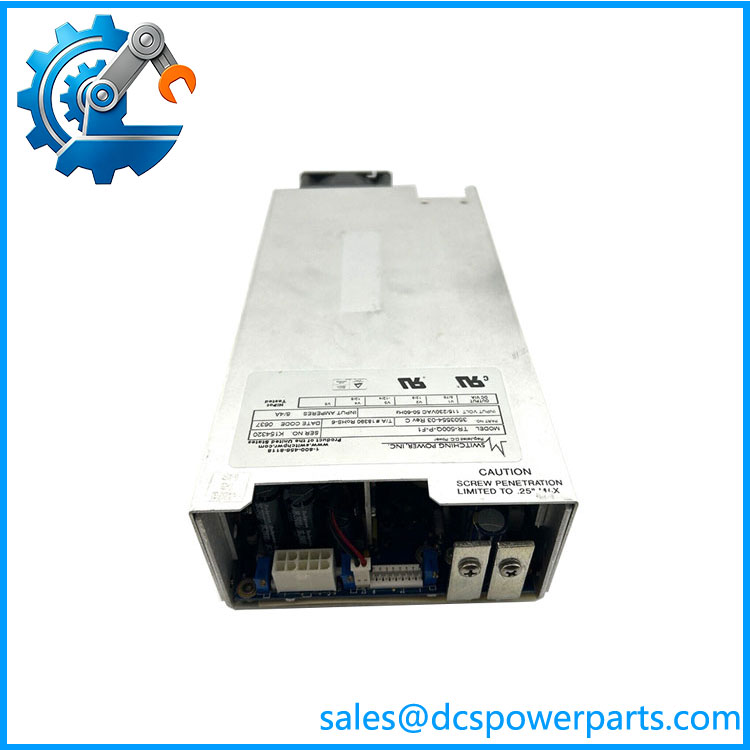

HONEYWELL TR-500Q-P-F1 3503311-02 | New Surplus SIS Power Unit

Description

Product Overview

The HONEYWELL TR-500Q-P-F1 3503311-02 is a redundant power supply module designed for Triconex safety controller platforms used in high-integrity industrial automation applications. This module provides regulated DC power conversion for Tricon chassis assemblies, supporting processor modules, communication modules, and safety I/O components. The HONEYWELL TR-500Q-P-F1 3503311-02 is part of the Triconex power subsystem family and is used in safety applications where power availability is a critical part of the overall control architecture.

The HONEYWELL TR-500Q-P-F1 3503311-02 operates as a dedicated power hardware component rather than a logic execution device. It accepts a wide AC input range and delivers 24VDC output through isolated power paths designed for redundant controller operation. Within Triconex TMR architectures, multiple power modules can work together to maintain chassis operation during a single power module fault condition.

Used in emergency shutdown systems, fire and gas protection systems, burner management systems, and other safety-related installations, the HONEYWELL TR-500Q-P-F1 3503311-02 supports the electrical requirements of fault-tolerant control environments. The module includes status indication functions that allow maintenance personnel to review power health conditions during troubleshooting and preventive maintenance activities.

For engineers maintaining installed Triconex systems, replacement evaluation should include more than catalog number verification. To be completely transparent, the controller chassis generation, installed power arrangement, cabinet temperature, incoming AC quality, and connected load should all be reviewed before installation. A power module failure can sometimes be a symptom of external issues such as ventilation problems or unstable supply conditions.

The HONEYWELL TR-500Q-P-F1 3503311-02 remains relevant for lifecycle support of existing Tricon safety platforms where maintaining the original system architecture is preferred. Proper voltage checks, alarm verification, and system diagnostics should be completed before placing the safety system back into service.

Key Technical Specifications

TR-500Q-P-F1

Related Products

• TRICONEX 8310 — Main chassis assembly used in Tricon controller systems. Provides the mounting structure for processor, I/O, and power modules.
• TRICONEX 8311 — Expanded chassis option for larger Tricon safety systems requiring additional module capacity.
• TRICONEX 8110 — Tricon main processor chassis component. Supports controller processing hardware rather than power conversion.
• TRICONEX 3503E — Digital input module used for safety-related discrete signal acquisition. Requires stable chassis power operation.
• TRICONEX 3504E — Digital output module used for shutdown and actuator control applications.
• TRICONEX 3625 — Analog input module for process measurement signals including transmitters and monitoring devices.
• TRICONEX 3700A — Analog input module designed for process monitoring and safety applications.
• TRICONEX MP3009 — Main processor module responsible for executing Tricon safety application logic.

Frequently Asked Questions (FAQ)

1. What is the HONEYWELL TR-500Q-P-F1 3503311-02 used for?

The HONEYWELL TR-500Q-P-F1 3503311-02 is a redundant power supply module used in Triconex safety controller systems. It converts AC input power into regulated DC power for controller chassis components and supports redundant power operation.

2. Can I hot-swap the HONEYWELL TR-500Q-P-F1?

Replacement depends on the installed Tricon chassis design and site maintenance procedures.

Typical steps include:

• Confirm redundant power status.
• Verify replacement module compatibility.
• Check system diagnostics.
• Replace the module according to approved procedures.
• Confirm DC output and fault indicators.

Safety system maintenance should follow the plant-approved process.

3. Does the HONEYWELL TR-500Q-P-F1 support firmware v3.1?

No firmware version normally applies to this module because it is a power supply assembly.

Compatibility depends on:

• Tricon chassis generation
• Power configuration
• Installed processor modules
• System architecture

The hardware revision and chassis compatibility are the important checks.

4. Will replacing the TR-500Q-P-F1 erase my safety logic?

No. The power supply module does not store the Tricon application program.

After replacement, engineers should verify:

• Processor status
• Chassis diagnostics
• Power redundancy condition
• Safety system alarms

The control application remains stored in the appropriate Tricon processor memory.

5. How can I verify a New Surplus HONEYWELL TR-500Q-P-F1 3503311-02?

Recommended inspection steps:

• Confirm model marking and part number.
• Inspect connector condition.
• Verify module labels and revision information.
• Check packaging and storage condition.
• Perform electrical checks before field installation.

6. What problems can cause TR-500Q-P-F1 failure?

Common contributors include:

• Long-term thermal stress
• Poor cabinet ventilation
• AC input disturbances
• Excessive downstream loading
• Component aging

The failed module should be evaluated together with the surrounding power system.

7. Is the HONEYWELL TR-500Q-P-F1 suitable for Tricon system upgrade projects?

This module is mainly used for maintaining existing Triconex installations. For modernization projects, engineers should evaluate the complete safety architecture, processor generation, I/O compatibility, software lifecycle, and validation requirements before changing the power subsystem.
