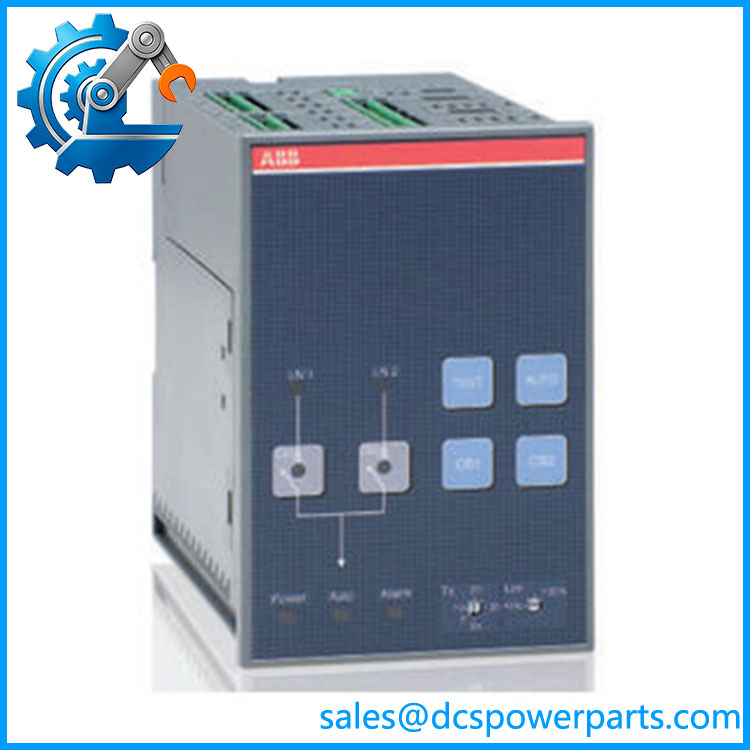

ABB OMD300E480C
Product Overview
The ABB OMD300E480C is an automatic control unit used to build automatic transfer switching equipment around ABB motorized change-over switches. The complete documented ordering reference is OMD300E480C-A1, ABB product ID 1SCA123790R1001. ABB specifies the OMD300 for use with OTM40…3200_CM_ motorized change-over switches, with the controller coordinating automatic transfer between two electrical sources. The OMD300 belongs to ABB’s OMD automatic control-unit family and is specifically the version with additional dual-power-source control functionality.
From an engineering perspective, this is an ATS controller, not a conventional industrial automation CPU. It monitors the electrical condition of the two incoming sources and controls the connected motorized change-over switch according to configured voltage thresholds, switching delays, back-switching delays, and operating mode. ABB documentation specifies a 208–480 VAC operating/measurement range, 120–277 VAC phase-to-neutral range, and 50/60 Hz operation. The OMD300 also provides a test sequence for simulating transfer and back-transfer operations.
The OMD300E480C is normally installed as part of a complete automatic transfer switch rather than as a standalone control cabinet device. For the OTM160…3200_CM_ arrangement, ABB specifies the OMD300 control unit together with appropriate OMZB voltage-sensing connectors and OA1G10 auxiliary contacts. The controller can be mounted on a door or on a 35 mm DIN rail.
For replacement work, the important issue is not simply finding an OMD300 housing that powers up. The connected OTM switch frame, pole configuration, sensing connections, source voltage, neutral arrangement, transfer logic, and auxiliary-contact wiring must all correspond to the original installation.
Product Introduction
When an automatic transfer system fails, the controller is only one part of the problem. The ABB OMD300E480C sits between source-voltage monitoring and the motorized change-over mechanism, making its sensing and control configuration central to the transfer sequence.
The unit supports 208–480 VAC ±20% main voltage and configurable switching delays from 0 through 30 seconds on the OMD300 platform. This makes it suitable for ABB OTM automatic transfer switch replacement and legacy ATS maintenance where the original OMD300 architecture is still in service.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | OMD300E480C-A1 |
| ABB Product ID | 1SCA123790R1001 |
| Manufacturer | ABB |
| Product Series | OMD300 |
| Product Type | Automatic control unit |
| Primary Application | Automatic transfer switching |
| Compatible Switch Family | ABB OTM40…3200_CM_ motorized change-over switches |
| Rated Operational Voltage | 208–480 VAC ±20% + neutral |
| Phase-to-Neutral Voltage | 120–277 VAC ±20% |
| Rated Frequency | 50/60 Hz ±10% |
| Voltage Sensing Precision | 5% |
| Frequency Sensing Precision | 1% |
| Voltage Threshold Settings | 5%, 10%, 15%, 20%, 25%, 30% |
| Switching Delay | 0, 5, 10, 15, 20, 25, or 30 s |
| Back-Switching Delay | Configurable through OMD300 settings |
| Test Function | Transfer and back-transfer sequence simulation |
| Mounting | Door or 35 mm DIN rail |
| Net Width | 96 mm |
| Net Height | 150 mm |
| Net Depth | 170 mm |
| Net Weight | 1 kg |
| Impulse Withstand Voltage | 6 kV |
| Overvoltage Category | III |
| Pollution Degree | 2 |
| Declaration | CE |
ABB documentation identifies OMD300E480C-A1 as product ID 1SCA123790R1001 and gives the 96 × 150 × 170 mm dimensions and 1 kg net weight. The OMD300 technical documentation specifies the electrical operating range, sensing accuracy, and configurable transfer parameters.
Major Features / Practical Advantages
Automatic Source Transfer Control
The OMD300 monitors the electrical sources and commands the motorized change-over switch when the configured transfer conditions are met. Its purpose is to automate the I-O-II operating sequence of an ABB transfer-switch assembly.
That makes it particularly relevant to standby-generator systems, dual-utility arrangements, and other installations where a load must be transferred between two sources without relying on manual intervention.
Dual Power Source Architecture
ABB specifically describes the OMD300 as the standard automatic control unit with additional power-supply control. The two monitored sources are generally represented as LN1 / Switch I and LN2 / Switch II.
The controller therefore has to be considered together with the voltage-sensing arrangement and the motorized switch. Replacing the control unit while ignoring the source-sensing wiring is a common commissioning mistake.
Configurable Transfer Delay
The OMD300 provides selectable transfer-delay settings. Documented choices include 0, 5, 10, 15, 20, 25, and 30 seconds. The delay determines how long the abnormal source condition is allowed to persist before the transfer sequence is initiated.
This is not a cosmetic parameter. A short delay can cause unnecessary transfer during transient disturbances, while an excessive delay can leave critical loads on a deteriorating source longer than intended.
Adjustable Voltage Threshold
The OMD300 provides voltage-threshold settings of 5%, 10%, 15%, 20%, 25%, and 30%, depending on the configured main-voltage level. ABB’s documentation also associates the selected voltage threshold with the voltage-unbalance criterion.
For a replacement unit, the existing threshold should be recorded before changing the controller. The factory setting is not necessarily the site commissioning value.
Integrated Test Sequence
The OMD300 includes a TEST function that can simulate the switching and back-switching sequence step by step. ABB explicitly warns that the power circuit is switched during the test sequence, so this is a commissioning function, not merely an LED diagnostic mode.
That distinction matters in live switchgear. A technician should treat the TEST position as an operational command capable of moving the connected change-over switch.
Multiple Mounting Options
The control unit can be mounted directly on a door or installed on a 35 mm DIN rail. ABB also provides OMZD1 mounting fasteners and an OMZC2 transparent cover as accessories.
The physical dimensions are relatively compact at 96 × 150 × 170 mm, although adequate clearance must still be maintained for wiring and switchgear access.
Designed Around ABB OTM Change-Over Switches
The OMD300 should be viewed as part of an ABB ATS architecture. ABB specifies the controller for OTM40…3200_CM_ motorized change-over switches, while the larger OTM assemblies may require separate voltage-sensing connectors and auxiliary contacts.
This is why an OMD300 should not be marketed as a universal ATS controller. Electrical interface compatibility depends on the connected motorized switch and the complete transfer-switch design.
Related Products
- OMD200E480C-A1 — OMD200 automatic control unit for ABB motorized change-over switch applications; lower-level OMD architecture with different functional configuration.
- OMD800E480C-A1 — Larger OMD800 automatic control unit for transfer-switch applications requiring the OMD800 feature set.
- OTM160E4C3D230C — ABB OTM motorized change-over switch package used with OMD300-based automatic transfer assemblies.
- OTM400E4C3D230C — Higher-current OTM automatic transfer switch configuration using the OMD300 architecture.
- OTM630E4C3D230C — Larger OTM change-over switch package for higher-current applications.
- OMZB18-OT — Voltage-sensing connector used with applicable smaller OTM switch frames.
- OMZB28-OT — Voltage-sensing connector associated with 315–400 A OTM configurations.
- OA1G10 — Auxiliary-contact component used as part of the OMD300/OTM transfer-switch assembly.
- OMZD1 — Door-mounting fastener for OMD200, OMD300, and OMD800 control units.
- OMZC2 — Padlockable transparent cover for OMD automatic control units.
FAQ
What is the ABB OMD300E480C used for?
It is an automatic transfer-switch control unit. It monitors two electrical sources and controls an ABB motorized change-over switch to perform automatic transfer and return operations.
Is OMD300E480C a PLC?
No. It is a dedicated automatic transfer-switch controller. Its operating logic, source monitoring, transfer delays, and user interface are designed around ABB OTM motorized change-over switches rather than general-purpose PLC programming.
What does OMD300E480C-A1 mean?
The documented complete product designation is OMD300E480C-A1, with ABB product ID 1SCA123790R1001. The shorter OMD300E480C designation is commonly used to identify the controller family.
What voltage does the OMD300E480C support?
ABB specifies 208–480 VAC ±20% main voltage with neutral, corresponding to 120–277 VAC ±20% phase-to-neutral, at 50/60 Hz ±10%.
Can I use it with any motorized transfer switch?
No. ABB documents the OMD300 for OTM motorized change-over switch architectures. The complete installation also depends on the switch frame, voltage-sensing connectors, auxiliary contacts, pole configuration, and wiring. Verify the original OTM model before substitution.
Can I hot-swap the OMD300E480C?
No hot-swap assumption should be made. This controller is connected directly to source-voltage sensing and the transfer-switch control circuit. ABB’s installation instructions require the automatic transfer switch to be de-energized before installation or maintenance.
Does the OMD300 have adjustable transfer timing?
Yes. The OMD300 documentation specifies selectable switching delays of 0, 5, 10, 15, 20, 25, and 30 seconds. Back-switching timing is also configurable through the OMD300 control arrangement.
How should I verify a replacement unit?
Match the complete OMD300E480C-A1 / 1SCA123790R1001 identification, connected OTM switch model, source voltage, frequency, number of poles, voltage-sensing connectors, auxiliary contacts, transfer delay, back-switching delay, and existing field wiring.
A controller that powers up and displays normal status is not automatically a correct replacement if the sensing or motor-control interfaces differ.
Procurement Note
The ABB OMD300E480C should be purchased as part of an automatic transfer-switch system, not as an isolated generic control board. ABB identifies OMD300E480C-A1 as a control unit for OTM motorized change-over switches, with PCB connectors and door-mounting hardware included in the ordering package.
For replacement procurement, record the existing OTM switch model and rating before ordering the controller. Check the source voltage, neutral arrangement, sensing connectors, auxiliary-contact configuration, and transfer settings. The OMD300 supports a wide 208–480 VAC main-voltage range, but that does not mean every OTM installation uses the same wiring arrangement.
For New Surplus or previously installed equipment, inspect the front interface, terminal connectors, mounting hardware, and enclosure condition. Confirm that the complete part number is OMD300E480C-A1 / 1SCA123790R1001 rather than relying only on the shorter OMD300E480C marking. ABB’s current product documentation identifies the exact A1 variant and provides a net weight of 1 kg and dimensions of 96 × 150 × 170 mm.
Most importantly, preserve the original ATS settings before replacement. The voltage threshold and transfer timing directly affect when the motorized change-over switch moves between sources. Those values should be restored and functionally tested as part of commissioning rather than assumed from factory defaults.
