Description
Product Features
The FM9925A-E HIEE451116R0001 is a high-performance industrial interface and signal conversion module developed by ABB, tailored for Advant and AC 800M distributed control system platforms. Serving as a critical signal transmission and bridge unit in industrial automation systems, it realizes stable signal isolation, precise data conversion and reliable bus data interaction between field equipment and the main control system. Adopting industrial-grade reinforced circuit design, optimized anti-interference structure and comprehensive self-diagnosis technology, it supports long-term stable operation in harsh industrial environments, ensuring the accuracy, real-time performance and safety of industrial process control loops.
1. High-precision Signal Conversion Performance: Equipped with high-resolution dedicated processing circuits, supporting high-precision conversion and sorting of various industrial analog and digital signals. It features low conversion delay and high data repeatability, effectively avoiding signal distortion and data deviation during long-distance transmission.
2.Strong Signal Isolation Capability: Built-in reinforced electrical isolation design between field signal channels and system bus terminals. It effectively isolates on-site surge voltage, common-mode interference and signal crosstalk, protecting the main control system from harsh electrical environment damage and improving overall system stability.
3. Perfect DCS System Compatibility: Fully compatible with ABB Advant Controller and AC 800M series DCS systems, supporting seamless backplane bus docking and protocol adaptive matching. It requires no additional program modification, enabling rapid system integration and engineering deployment.
4. Industrial-grade Anti-interference Design: Compliant with strict IEC 61000 EMC electromagnetic compatibility standards. It can resist strong electromagnetic field interference, fast transient pulses and static interference on industrial sites, maintaining stable signal transmission quality in high-noise working environments.
5. Intelligent Full-featured Self-diagnosis: Integrated complete hardware and software self-diagnosis mechanism, equipped with multi-group LED status indicators. It can real-time monitor module power status, signal channel status and bus communication link faults, intuitively output fault codes and support rapid troubleshooting and maintenance.
6. Superior Environmental Adaptability: The whole circuit board adopts industrial conformal coating protection, featuring moisture-proof, dust-proof, anti-corrosion and anti-condensation properties. With optimized shock and vibration resistant structure, it supports 24/7 uninterrupted continuous operation in high-temperature and high-humidity industrial scenarios.
7. Standard Modular Integrated Structure: Adopts compact industrial modular design, matching standard cabinet rack installation specifications. The unified structural size simplifies system layout planning, module replacement and later system function expansion, effectively reducing engineering operation and maintenance costs.
8. Multi-dimensional Safety Protection Mechanism: Integrates overvoltage, overcurrent and overload automatic protection functions. When abnormal power supply or signal faults occur, the module will automatically trigger protection interlock to cut off abnormal circuits, avoiding equipment damage and system operation failure.

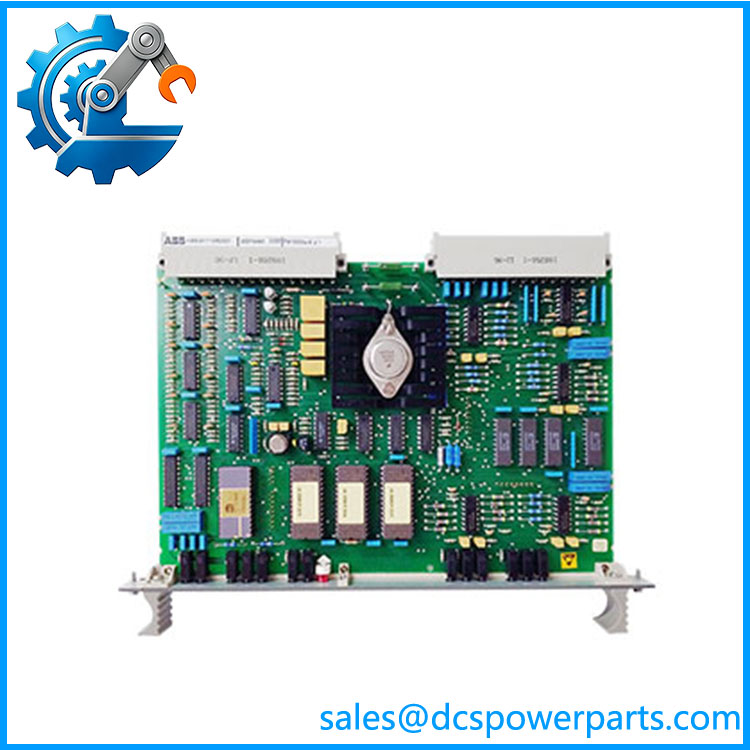

FM9925A-E
Product Parameters
|
Item
|
Specification
|
|
Part Number
|
FM9925A-E / HIEE451116R0001
|
|
Brand
|
ABB
|
|
Product Type
|
Industrial Signal Interface & Conversion Module
|
|
Applicable System
|
ABB Advant Controller / AC 800M DCS System
|
|
Core Functions
|
Field signal isolation, high-precision signal conversion, bus data transmission, system signal bridging, fault self-diagnosis
|
|
Isolation Performance
|
Industrial Reinforced Electrical Isolation Design
|
|
Signal Conversion Accuracy
|
High-precision Industrial Grade Conversion
|
|
Communication Method
|
Dedicated DCS Backplane Bus Communication
|
|
EMC Standard
|
Compliant with IEC 61000 Industrial Electromagnetic Compatibility Standard
|
|
Protection Functions
|
Overvoltage, Overcurrent, Overload Automatic Protection
|
|
Diagnostic Mode
|
Multi-LED Real-time Status & Fault Code Indication
|
|
Surface Protection
|
Industrial Conformal Coating, Dustproof, Moisture-proof, Anti-corrosion
|
|
Power Supply
|
24VDC Industrial Standard Power Supply
|
|
Operating Temperature Range
|
-20℃ ~ +60℃
|
|
Storage Temperature Range
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5%~95% Non-condensing
|
|
Vibration & Shock Resistance
|
Industrial-grade Reinforced Anti-vibration Structure
|
|
Installation Method
|
Standard Industrial Cabinet Rack Mounting
|
|
Operating Characteristic
|
Support 24/7 Long-term Continuous Stable Operation
|
Product Usage Method
1. Pre-installation Inspection: Comprehensively inspect the appearance, circuit board, terminal interfaces and LED indicators of the FM9925A-E HIEE451116R0001 module. Confirm no deformation, scratch, oxidation or loose components. Verify the module model and performance parameters to ensure full compatibility with the on-site ABB DCS system configuration standards.
2. Static Protection & Environment Preparation: Complete installation operations in a dry, dust-free and well-ventilated industrial control cabinet. Wear professional anti-static gloves and wrist straps to avoid static discharge damaging internal precision circuits and chips, ensuring standardized and safe module installation.
3. Module Installation & Fixation: Align the module with the standard slot of the ABB DCS chassis, insert it smoothly and fasten the fixing bolts tightly. Ensure reliable and close contact between the module and the backplane bus to prevent signal instability and communication interruption caused by long-term equipment vibration.
4. Standard Wiring Connection: Complete power supply wiring, field signal wiring and bus wiring in strict accordance with ABB official wiring specifications. Strictly distinguish power terminals, signal terminals and communication terminals to prevent wrong wiring, short circuit and signal crosstalk, and keep the wiring layout neat and firm.
5. System Configuration & Parameter Debugging: After wiring inspection is qualified, log in to the ABB DCS configuration software. Match the module hardware model, set signal conversion parameters, communication baud rate and channel logic parameters according to on-site process control requirements, then download and save all configuration data.
6. Power-on Test & Function Verification: Power on the module to trigger automatic self-diagnosis. Check the LED working status, bus communication stability and signal conversion accuracy. Simulate various field signal working conditions to verify the reliability of module signal processing and protection functions.
7. Daily Operation & Maintenance Management: Put the module into formal continuous operation after passing debugging. Regularly check the module operating temperature, indicator status and wiring tightness, clean surface and slot dust periodically, back up configuration files and fault logs, and eliminate potential faults in time to ensure long-term stable operation of the DCS control system.
Product Application Fields
1. Petroleum & Natural Gas Industry: Widely applied in DCS automatic control systems of oil and gas fields, offshore platforms and gas transmission stations. It is responsible for on-site process signal isolation, conversion and transmission, ensuring stable and safe operation of oil and gas production, transportation and storage automation systems.
2. Chemical & Petrochemical Industry: Deployed in automated control systems of refining, chemical fertilizer and fine chemical production devices. It realizes accurate collection and stable transmission of core parameters such as reaction temperature, pressure and flow, supporting continuous and safe operation of high-risk chemical production processes.
3. Power Generation Industry: Used in DCS automation control systems of thermal power, hydropower and new energy power plants. It processes operating signals of power generation units and auxiliary equipment, improving the real-time performance and stability of power plant monitoring and control systems.
4. Metallurgy & Building Materials Industry: Suitable for automatic control scenarios of steel smelting, non-ferrous metal processing and cement production lines. Its excellent anti-interference and environmental adaptability stably cope with harsh industrial environments such as high dust, high temperature and strong electromagnetic interference.
5. General Industrial Automation: Universally applicable to pharmaceutical, papermaking, water treatment and manufacturing industries. As a core signal interface conversion module of ABB DCS system, it provides reliable signal transmission and system isolation guarantee for various industrial automatic control loops.
