Description
Product Features

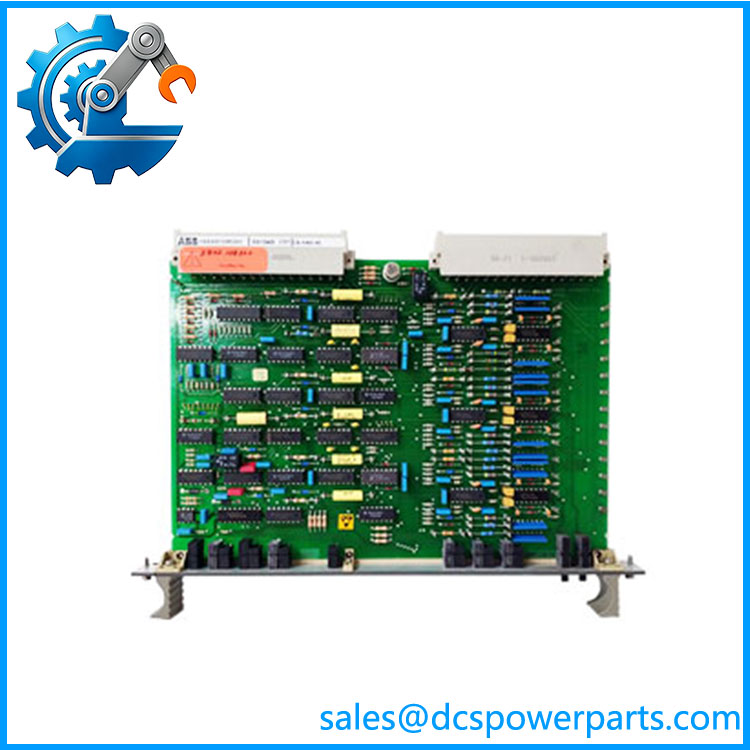

The CSA463AE HIEE400103R0001 is a high-reliability industrial monitoring and control module launched by ABB, perfectly compatible with ABB AC 800M and Advant Controller 410 distributed control systems. As a core signal acquisition and data transmission component in industrial process control systems, it integrates high-precision signal sampling, stable logic processing, multi-protocol communication and comprehensive equipment protection functions. Adopting industrial-grade reinforced design, electrical isolation technology and intelligent self-diagnosis algorithm, it supports long-term uninterrupted operation in harsh industrial environments, providing accurate data monitoring and stable control guarantee for various process industrial automation loops.
1. High-precision Process Signal Acquisition: Equipped with high-resolution AD sampling chip, achieving 0.5-level ultra-high measurement accuracy. It stably collects various industrial analog and power parameters, accurately capturing subtle changes in process signals, and providing reliable basic data for system precise control and status judgment.
2. Dual Communication Protocol Compatibility: Built-in standard Modbus TCP and Modbus RTU dual communication protocols, supporting automatic baud rate adaptation and multi-station data interaction. It realizes seamless connection between field equipment and upper DCS/SCADA monitoring system, ensuring real-time, efficient and error-free data transmission.
3. High-strength Electrical Isolation Protection: Adopts 3KV DC / 2KV RMS reinforced isolation design between internal circuit and field signal terminals. It effectively isolates on-site surge voltage, strong electromagnetic interference and signal crosstalk, thoroughly avoiding signal distortion and module breakdown caused by complex on-site electrical environments.
4. Multi-dimensional Safety Protection Mechanism: Integrates intelligent overvoltage, overcurrent and overheat protection functions. When the module is in abnormal working conditions, it will automatically trigger protection interlock, cut off abnormal operating circuit, and effectively protect the module itself and peripheral field equipment from secondary damage.
5. Intelligent Full-function Self-diagnosis: Equipped with multi-group LED status indicator lights, which visually display module power status, communication link status and fault codes in real time. It supports automatic hardware self-check and fault alarm reminder, helping engineers quickly locate faults and improve maintenance efficiency.
6. Superior Industrial Environmental Adaptability: The circuit board is coated with industrial conformal coating, which is resistant to moisture, dust, corrosive gas and condensed water. It has excellent shock resistance and vibration resistance, adapting to 24/7 long-term stable operation in high-temperature, high-humidity and strong-interference industrial scenarios.
7. Flexible Channel Logic Configuration: Supports free configuration of input and output channel parameters and control logic. According to different industrial process requirements, signal range, alarm threshold and linkage rules can be flexibly adjusted, greatly improving system configuration flexibility and functional scalability.
8. Excellent System Matching Performance: Fully adapted to ABB AC 800M and Advant Controller 410 series DCS systems, realizing zero-delay bus docking and logic matching. It conforms to ABB industrial control system unified communication and control standards, ensuring stable collaborative operation of the entire automation system.
CSA463AE
Product Parameters
|
Item
|
Specification
|
|
Part Number
|
CSA463AE HIEE400103R0001
|
|
Brand
|
ABB
|
|
Product Type
|
Industrial Monitoring & Communication Control Module
|
|
Applicable System
|
ABB AC 800M / Advant Controller 410 DCS System
|
|
Communication Protocol
|
Modbus TCP / Modbus RTU Dual Protocol Adaptive
|
|
Measurement Accuracy
|
0.5 Level Industrial High Precision
|
|
Max Measuring Current
|
300A AC Industrial Range
|
|
Standard Output Signal
|
4–20mA Standard Analog Signal
|
|
Isolation Strength
|
3KV DC / 2KV RMS Reinforced Electrical Isolation
|
|
Protection Function
|
Overvoltage, Overcurrent, Overheat Intelligent Multi-protection
|
|
Diagnostic Design
|
Multi-LED Real-time Status & Fault Indication
|
|
Surface Protection Technology
|
Industrial Conformal Coating, Dustproof, Moisture-proof, Anti-corrosion
|
|
Power Supply Range
|
85–264V AC / 24–48V DC Wide Voltage Input
|
|
Operating Temperature Range
|
-20℃ ~ +60℃
|
|
Storage Temperature Range
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5%~95% Non-condensing Environment
|
|
Electromagnetic Compatibility
|
Compliant with Industrial EMC Anti-interference Standards
|
|
Installation Method
|
Standard Industrial Cabinet Rack Mounting
|
|
Core Functions
|
High-precision industrial signal monitoring, dual-protocol data communication, intelligent equipment protection, real-time fault self-diagnosis, system data transmission and linkage control
|
Product Usage Method
1. Pre-installation Inspection: Carefully inspect the CSA463AE HIEE400103R0001 module appearance, circuit board, terminal terminals and LED indicators to confirm no damage, oxidation, deformation or loose components. Verify that the module parameters match the on-site ABB DCS system and field sensor specifications to ensure installation compatibility.
2. Static Protection & Environment Preparation: Complete installation operations in a dry, dust-free and static-proof industrial cabinet environment. Wear professional anti-static gloves and wrist straps to avoid static discharge damaging internal precision sampling circuits and control chips, ensuring safe and standardized module installation.
3. Module Installation & Fixation: Smoothly insert the module into the designated standard slot of the ABB DCS system chassis, and tighten the fixing bolts firmly. Ensure reliable and close contact between the module and the backplane bus to prevent signal fluctuation and communication interruption caused by long-term equipment vibration.
4. Standard Wiring Connection: Complete power supply wiring, field signal acquisition wiring and communication bus wiring in strict accordance with official ABB wiring specifications. Strictly distinguish power terminals, signal terminals and communication terminals to avoid wrong wiring, short circuit and signal crosstalk faults.
5. System Parameter Configuration: After wiring inspection is correct, log in to the ABB professional configuration software. Set communication protocol, baud rate, signal sampling range, protection threshold and channel logic parameters according to on-site process control requirements, then download and save all configuration data.
6. Function Debugging & Performance Verification: Power on the module to trigger self-diagnosis program, check LED working status, communication link stability and signal acquisition accuracy. Simulate abnormal working conditions such as overvoltage and overcurrent to verify the effectiveness of module protection and alarm functions.
7. Long-term Operation & Daily Maintenance: Put the module into formal continuous operation after passing debugging and verification. Regularly check module operating temperature, indicator status and wiring tightness, clean surface and slot dust periodically, back up configuration data and fault logs, and calibrate sampling accuracy regularly to ensure long-term stable operation of the control system.
Product Application Fields
1. Power Generation Industry: Widely applied in DCS automation control systems of thermal power, hydropower and gas power plants. It is used for real-time monitoring and data collection of power generation equipment operating parameters, providing accurate data support for unit safety operation, load regulation and intelligent scheduling.
2. Petroleum & Natural Gas Industry: Deployed in automatic control systems of oil and gas fields, offshore platforms and long-distance gas transmission stations. It monitors key process signals of production and transmission equipment, ensures stable and safe operation of oil and gas production processes, and supports remote system monitoring and linkage control.
3. Chemical & Petrochemical Industry: Used in process control systems of refining, chemical fertilizer and fine chemical production devices. It realizes high-precision collection and stable transmission of core parameters such as reaction temperature, pressure and flow, ensuring continuous and safe operation of high-risk chemical production processes.
4. Metallurgy & Heavy Industry: Suitable for automatic monitoring and control of steel smelting, non-ferrous metal processing and heavy mechanical equipment. Its excellent dust-proof, anti-corrosion and anti-interference performance stably adapts to harsh heavy industrial production environments.
5. General Industrial Automation: Widely used in pharmaceutical production, papermaking, water treatment, manufacturing and other process industries. As a core monitoring and communication module of ABB DCS system, it provides reliable signal acquisition, data transmission and equipment safety protection for various industrial automatic control loops.
