Description
Product Features

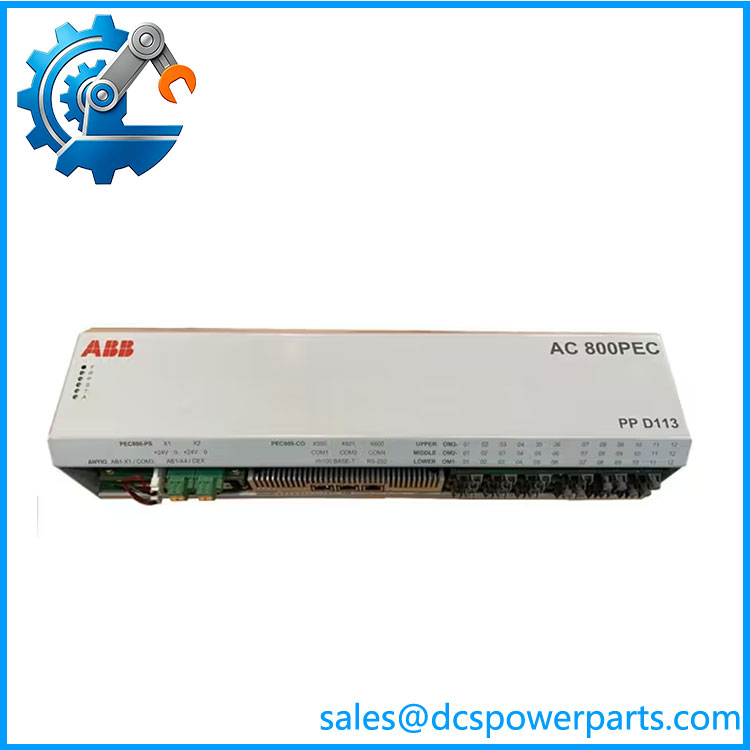

The PPD113B01-26-111000 is a professional high-speed process controller module independently developed by ABB, specially designed for high-precision power control, power electronic conversion and industrial process closed-loop regulation scenarios. As a core key component of the AC 800PEC high-performance control system and UNITROL 6000 series generator excitation system, the module integrates advanced embedded microprocessor technology, programmable FPGA logic control and multi-channel high-speed signal processing functions. It effectively makes up for the defects of slow response and low control accuracy of conventional general-purpose controllers in complex power working conditions. With outstanding real-time computing capability, stable anti-interference performance and flexible system expansion performance, the module can adapt to various harsh industrial operating environments, providing accurate, efficient and safe core control support for key links such as power generation excitation, energy transmission and distribution, and industrial power conversion.
1. Ultra-fast Control Response & Real-time Computing Capability: The module adopts a dual-core collaborative control architecture composed of high-performance industrial MCU and professional FPGA chip, abandoning the traditional single-chip control mode. It supports microsecond-level ultra-fast control cycle, which can instantly capture and track transient fluctuation signals of power equipment and process parameters. Different from ordinary controllers with millisecond-level response delay, this product realizes high-precision synchronous closed-loop regulation in the whole process of power electronic conversion, generator excitation adjustment and grid transient response, effectively suppressing power oscillation and parameter deviation, and greatly improving the dynamic stability of the control system.
2. Professional Customized Power Control Performance: Optimized and calibrated for industrial power equipment and power system control scenarios, the module has built-in mature power control algorithm libraries, covering grid precise synchronization, high-precision PWM waveform generation, rectifier and inverter unit intelligent regulation, and power balance control. It can automatically adjust control parameters according to load changes and grid fluctuations, adapt to variable working conditions such as generator start-stop, load switching and grid transient impact. It maintains excellent control accuracy and operational stability in high-current and high-power power equipment, fully meeting the stringent control standards of power energy and heavy industrial power systems.
3. Multi-protocol Communication & Strong System Compatibility: Equipped with multiple high-speed industrial communication interfaces and bus channels, the module supports mainstream industrial protocols such as Modbus TCP and dedicated high-speed system bus. It can seamlessly interconnect and interact data with ABB upper monitoring hosts, AC800PEC control cabinets, UNITROL excitation systems and third-party peripheral I/O equipment. It realizes real-time uploading of on-site operating data, remote parameter configuration and system linkage control. The standardized communication design ensures good compatibility and interoperability in multi-brand and multi-device hybrid industrial systems, facilitating system integration and later transformation and upgrading.
4. Full-function Intelligent Self-diagnosis & Fault Early Warning: The module embeds a complete intelligent diagnosis mechanism covering hardware status and software operation. It monitors key indicators in real time, including module operating temperature, internal circuit status, power supply voltage, communication link quality and program operating status. It can automatically identify and accurately locate common faults such as communication interruption, signal abnormality, program error and hardware aging. It actively outputs fault code prompts and stores complete operation and fault logs, providing reliable data basis for on-site troubleshooting, equipment maintenance and predictive maintenance, effectively reducing equipment failure downtime.
5. Rugged Industrial-grade Environmental Adaptability: Designed with industrial ruggedization standards, the module adopts high-strength anti-vibration structure and professional circuit anti-interference protection technology. The core circuit board is treated with special moisture-proof, dust-proof and anti-corrosion coating, which can effectively resist temperature alternating changes, industrial dust, humid gas and strong electromagnetic interference on site. It maintains stable working performance in harsh working environments such as power plant workshops, metallurgical production lines and outdoor power distribution stations, avoiding functional failure or data deviation caused by environmental factors, and ensuring long-term reliable continuous operation of the equipment.
6. High Integration & Flexible Function Scalability: Adopting a highly integrated compact modular design, the module integrates signal acquisition, algorithm operation, logic control and communication transmission functions, which greatly saves cabinet installation space and simplifies system wiring structure. It supports offline parameter configuration and online function upgrading, and can flexibly expand control functions and algorithm modules according to on-site process requirements. It is widely compatible with multiple series of ABB control and excitation platforms, which can meet the personalized and differentiated control needs of different industrial scenarios and has strong on-site adaptability and expandability.
7. Multi-dimensional Safety Protection & Ultra-high Operational Stability: The module strictly complies with international industrial safety specifications and EMC electromagnetic compatibility standards, and is built with a complete multi-level safety protection mechanism. It has electrical protection functions such as overvoltage, overcurrent and short-circuit, as well as program interlock anti-misoperation logic. In case of abnormal power supply, signal fault or system disturbance, it can quickly trigger protection locking to avoid equipment misoperation and component damage. After long-term market verification and industrial iteration, it has ultra-low failure rate and strong system anti-disturbance capability, ensuring the safe, stable and continuous operation of core industrial power equipment.
PPD113B01-26-111000
Product Parameters
|
Parameter Item
|
Technical Specification
|
|
Product Model
|
PPD113B01-26-111000
|
|
Brand
|
ABB
|
|
Product Type
|
High-speed Process Controller Module
|
|
Applicable System
|
ABB AC 800PEC Control System, UNITROL 6000 Series Excitation System
|
|
Core Configuration
|
High-performance MCU + FPGA dual control architecture
|
|
Control Cycle
|
Microsecond-level high-speed response (up to 100μs)
|
|
Communication Protocol
|
Modbus TCP, High-speed system dedicated bus
|
|
Core Functions
|
High-speed closed-loop control, PWM signal generation, generator excitation regulation, grid synchronization, data communication
|
|
Diagnostic Function
|
Real-time self-diagnosis, fault recording, operation status monitoring
|
|
Working Temperature
|
-20℃ ~ +70℃
|
|
Storage Temperature
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5% – 95% RH (non-condensing)
|
|
Environmental Standard
|
Industrial EMC electromagnetic compatibility certification, anti-vibration and anti-interference
|
|
Installation Method
|
Standard cabinet rack plug-in installation
|
|
Operation Mode
|
Support 24/7 long-term uninterrupted high-load operation
|
Product Usage Method
1. Pre-installation Inspection: Check the appearance integrity, circuit board and interface status of the PPD113B01-26-111000 module before installation. Confirm no damage, oxidation or loose components. Verify that the module model matches the supporting ABB control system to ensure system compatibility.
2. Environment & Static Protection: Complete installation in a dry, clean and well-ventilated industrial control cabinet. Wear anti-static protective equipment to avoid static electricity damaging internal precision chips and circuits, ensuring safe and standardized construction.
3. Module Installation & Fixation: Align the module with the standard cabinet slot, insert it smoothly and lock the fixing device firmly. Ensure reliable contact between the module and the backplane bus to prevent signal interruption and control abnormality caused by equipment vibration.
4. Standard Wiring Connection: Complete power supply wiring, signal wiring and communication bus wiring in strict accordance with ABB system wiring specifications. Distinguish different terminal types accurately to avoid wrong connection and short circuit, and keep the wiring neat and firm.
5. System Configuration & Debugging: Connect the upper computer configuration software after installation. Set control parameters, communication baud rate, closed-loop control logic and protection threshold according to on-site power equipment and process control requirements, then download and save configuration files.
6. Power-on Test & Function Verification: Conduct segmented power-on inspection to activate the module self-diagnosis program. Check the operating status and communication link stability. Simulate equipment operation conditions to verify the accuracy of high-speed control and signal output functions.
7. Daily Operation & Maintenance: After passing the test, the module can be put into formal operation. Regularly inspect module temperature, connection status and system operation logs, clean dust regularly, and back up fault data to maintain long-term stable control performance.
Product Application Fields
1. Power Generation Industry: Widely used in excitation control systems of thermal power, hydropower and new energy generator sets. It undertakes core tasks such as generator voltage regulation, grid synchronization and power factor adjustment, ensuring stable and efficient operation of power generation equipment.
2. Energy Conversion & Transmission: Applied in static frequency converters, power rectifiers and power transmission and distribution control equipment. It realizes high-speed and precise regulation of power conversion process, improving the stability and efficiency of energy transmission.
3. Heavy Industrial Process Control: Suitable for high-precision process control scenarios in metallurgy, chemical electrolysis and aluminum smelting industries. It provides stable high-speed closed-loop control for large-current power regulation and industrial process parameter adjustment.
4. Industrial Automation Control System: Serves as the core high-speed control unit of ABB AC 800PEC system. It is used for complex process control and power electronic equipment linkage control in intelligent factories, meeting the high-speed response demands of automated production lines.
5. Power Equipment Monitoring & Protection: Applied in industrial power distribution monitoring and equipment safety control systems. It realizes real-time monitoring, rapid response and fault interlock protection of power equipment operation status, improving the overall safety of power system operation.
