Description

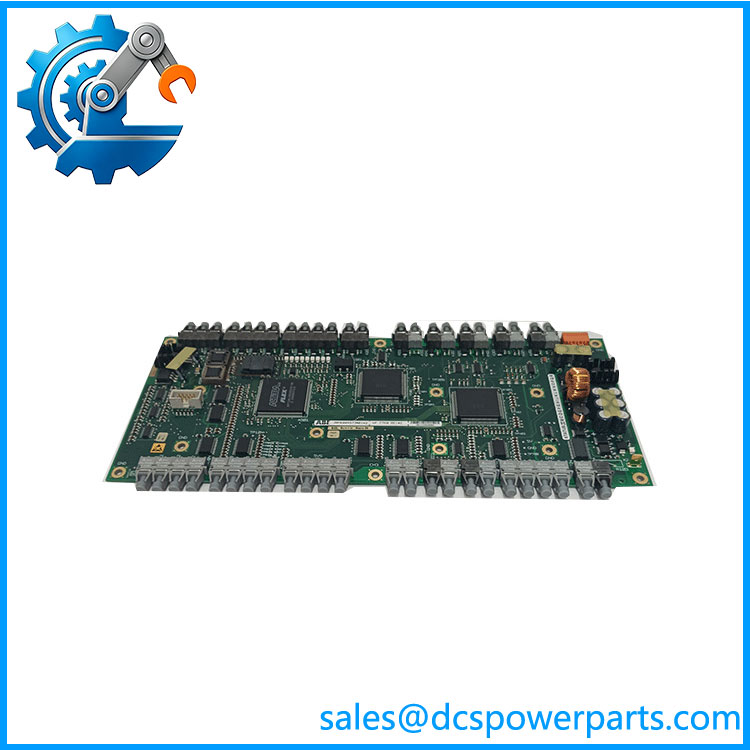

UFC760BE145 | 3BHE004573R0145
Product Profile
Distinct Performance Features
▫ Supports configurable analog input and analog output channels, compatible with standard 4–20mA and 0–10V industrial signal standards
▫ Multiple digital terminals reserved for equipment interlock, status feedback and external command triggering
▫ Dual expansion slots enable installation of optional fieldbus modules for diverse communication networking schemes
▫ Embedded algorithm support for PID constant-value regulation, logic interlock and sequential control without extra PLC intervention
▫ Built-in comprehensive fault diagnosis mechanism, rapidly capturing I/O abnormalities, communication failures and drive operating anomalies
▫ Optimized EMC circuit layout enhances anti-interference capability inside electrical cabinets with heavy electromagnetic noise
▫ Standard plug-in rack structure allows direct replacement during maintenance, effectively shortening equipment outage duration
▫ Conformal coated circuit board improves resistance against humidity, dust and corrosive gas in factory environments
UFC760BE145-3BHE004573R0145
Technical Parameters
| Parameter | Details |
|---|---|
| Model Number | UFC760BE145 |
| Material Code | 3BHE004573R0145 |
| Manufacturer | ABB |
| Applicable Equipment | ACS800 Series Frequency Converter |
| Analog Input | 2 configurable channels |
| Analog Output | 2 configurable channels |
| Expansion Interface | Two slots for fieldbus adapter modules |
| Installation Form | Internal rack mounting inside drive cabinet |
| Working Temperature | -20 ℃ ~ +60 ℃ |
| Storage Temperature | -40 ℃ ~ +85 ℃ |
| Ambient Humidity | 5% – 95% RH, non-condensing |
| Cooling Mode | Natural convection |
| Protection Design | Surge suppression, signal circuit isolation |
Commissioning & Operation Guidance
Carry out offline and online function tests. Verify signal acquisition accuracy, output response and interlock logic. Confirm fieldbus data transmission works normally if communication adapters are installed. Once commissioning is accepted, incorporate the module into regular equipment inspection.
Periodically check terminal tightness, surface dust accumulation and drive fault records to maintain long-term reliable operation.
Main Application Scenarios
Water Treatment & Wastewater Plants
Speed regulation control for water supply pumps, drainage pumps and induced draft fan systems.
Thermal Power Auxiliary Systems
Variable-speed control of boiler fans, circulating water pumps and other auxiliary equipment in power plants.
Petrochemical & Refining Facilities
Drive control for process compressors, conveying pumps and material handling equipment.
Pulp & Paper Manufacturing Lines
Precise speed adjustment for rollers and transport equipment on continuous production lines.
Industrial Drive Retrofit & Spare Part Projects
Hardware renewal and spare replacement for existing ACS800 inverter control cabinets.
