Description
Product Features

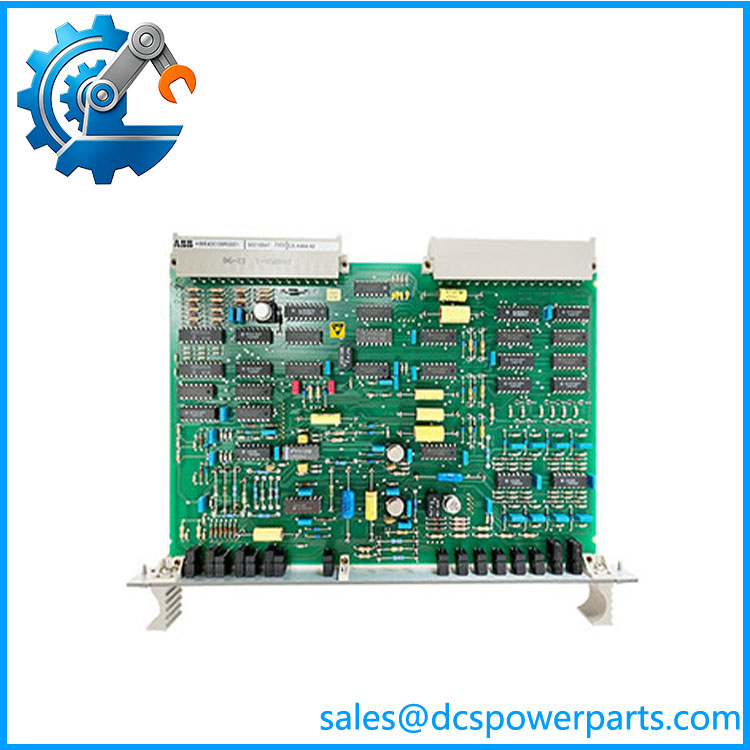

The CSA464AE HIEE400106R0001 is a high-performance industrial monitoring and control module developed by ABB, designed for AC 800M and Advant Controller 410 distributed control systems. As a core functional module for industrial process monitoring, signal conversion and data communication, it integrates precise signal acquisition, stable logic control and multi-protocol communication capabilities. With industrial-grade reliability, reinforced isolation design and comprehensive self-diagnosis functions, it ensures continuous and stable operation of automated production loops, widely serving high-precision control and real-time monitoring demands in various process industries.
1. High-precision Industrial Signal Monitoring: Adopts high-accuracy sampling and processing technology, supporting precise collection and analysis of industrial power parameters and process signals. It delivers stable measurement accuracy up to 0.5 level, effectively capturing subtle signal changes and providing reliable data support for system control and judgment.
2. Dual-protocol Adaptive Communication: Built-in Modbus TCP and Modbus RTU dual communication protocols, supporting automatic baud rate detection and multi-master communication mode. It realizes seamless data interconnection between field equipment and upper DCS/SCADA systems, ensuring efficient and real-time data transmission.
3. Reinforced Electrical Isolation Performance: Equipped with 3KV DC / 2KV RMS reinforced isolation circuit between internal channels and external circuits. It effectively isolates on-site surge voltage, electromagnetic interference and signal crosstalk, avoiding module damage and signal distortion caused by harsh industrial electrical environments.
4. Comprehensive Multi-protection Mechanism: Integrates overvoltage protection, overcurrent protection and overheat protection functions. When abnormal operating conditions occur, the module can automatically trigger protection actions to cut off abnormal circuits, protecting itself and peripheral field equipment from failure damage.
5. Complete Intelligent Diagnosis System: Configured with multi-channel LED status indicators, which intuitively display module operating status, communication link activity and fault codes. It supports real-time hardware self-diagnosis and fault alarm, enabling rapid fault location and on-site maintenance.
6. Industrial-grade Environmental Adaptability: Adopts conformal coating protection technology on the circuit board surface, resisting humidity, conductive dust and corrosive gas interference. It features excellent shock and vibration resistance, supporting 24/7 long-term stable operation in harsh industrial scenarios.
7. Flexible Channel Configuration: Supports flexible configuration of input and output channels, adapting to diversified on-site signal acquisition and control logic requirements. It can be adjusted according to different process control schemes, improving system configuration flexibility and scalability.
8. Perfect System Compatibility: Fully compatible with ABB AC 800M and Advant Controller 410 series DCS systems, realizing zero-docking system integration. It matches the system’s control logic and data transmission standards, ensuring stable collaborative operation of the entire automation system.
CSA464AE
Product Parameters
|
Item
|
Specification
|
|
Part Number
|
CSA464AE HIEE400106R0001
|
|
Brand
|
ABB
|
|
Product Type
|
Industrial Monitoring & Communication Control Module
|
|
Applicable System
|
ABB AC 800M / Advant Controller 410 DCS System
|
|
Communication Protocol
|
Modbus TCP / Modbus RTU Dual Protocol
|
|
Measurement Accuracy
|
0.5 Level High Precision
|
|
Max Measuring Current
|
400A AC
|
|
Standard Output Signal
|
4–20mA Analog Signal
|
|
Isolation Strength
|
3KV DC / 2KV RMS Reinforced Isolation
|
|
Protection Function
|
Overvoltage, Overcurrent, Overheat Multi-protection
|
|
Diagnostic Indicator
|
Multi-LED Status & Fault Display Indicators
|
|
Surface Protection
|
Industrial Conformal Coating Anti-corrosion & Dustproof
|
|
Power Supply Range
|
85–264V AC / 24–48V DC Wide Voltage Input
|
|
Operating Temperature Range
|
-20℃ ~ +60℃
|
|
Storage Temperature Range
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5%~95% Non-condensing
|
|
Anti-interference Standard
|
Industrial EMC Electromagnetic Compatibility Standard
|
|
Installation Method
|
Standard Cabinet Rack Mounting
|
|
Core Functions
|
Industrial signal high-precision monitoring, multi-protocol data communication, equipment operating protection, real-time fault diagnosis, system data transmission
|
Product Usage Method
1. Pre-installation Inspection: Inspect the CSA464AE HIEE400106R0001 module appearance, circuit board, terminal interfaces and LED indicators to confirm no damage, oxidation or loose components. Verify module parameter compatibility with on-site DCS system and field sensor equipment to meet industrial control configuration standards.
2. Static & Environment Preparation: Complete installation in a dry, dust-free and static-proof industrial cabinet environment. Wear professional anti-static gloves and wrist straps to prevent static discharge from damaging internal precision circuits and sampling chips, ensuring safe module installation.
3. Module Installation & Fixation: Insert the module into the standard slot of the ABB DCS system chassis smoothly, and fasten the fixing bolts firmly. Ensure stable contact with the system backplane bus to avoid signal fluctuation and communication failure caused by equipment vibration during long-term operation.
4. Standard Wiring Connection: Connect power supply cables, field signal acquisition cables and communication bus cables in strict accordance with official wiring specifications. Distinguish power terminals, signal terminals and communication terminals to prevent wrong wiring, short circuit and signal crosstalk faults.
5. System Parameter Configuration: Log in to the ABB dedicated system configuration software after wiring completion. Set communication protocol, baud rate, signal sampling range, protection threshold and channel parameters according to on-site process control requirements, then download and save all configuration data.
6. Function Debugging & Verification: Power on the module to start self-diagnosis, check LED indicator status, communication link stability and signal acquisition accuracy. Simulate overvoltage, overcurrent and other abnormal conditions to verify the reliability of module protection and alarm functions.
7. Daily Operation & Maintenance: Keep the module running continuously after passing debugging. Regularly check module operating temperature, indicator status and wiring tightness, clean surface dust periodically, back up configuration data and fault logs, and inspect signal acquisition precision to ensure long-term stable operation of the control system.
Product Application Fields
1. Power Generation Industry: Widely used in DCS automation control systems of thermal power, hydropower and gas power plants. It is responsible for real-time monitoring of power parameters and operating status of power generation equipment, providing accurate data support for unit safe operation and intelligent scheduling.
2. Petroleum & Natural Gas Industry: Deployed in automated control systems of oil and gas fields, offshore platforms and gas transmission stations. It monitors key process signals of production and transmission equipment, ensures stable operation of oil and gas production processes, and supports remote data monitoring and system linkage control.
3. Chemical & Petrochemical Industry: Applied in process control systems of refining, fine chemical and chemical production devices. It realizes high-precision collection and stable transmission of reaction temperature, pressure, flow and other parameters, ensuring safe and continuous operation of high-risk chemical production processes.
4. Metallurgy & Heavy Industry: Suitable for automation monitoring and control of steel smelting, non-ferrous metal processing and heavy industrial equipment. Its strong anti-interference and environmental adaptability stably cope with harsh industrial environments such as high dust and strong electromagnetic interference.
5. General Industrial Automation: Widely used in pharmaceutical, papermaking, water treatment and manufacturing automation industries. As a core signal monitoring and communication module of ABB DCS system, it provides reliable data transmission and equipment protection guarantee for various industrial automatic control loops.
