Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | SPS5710-2-LF |
| Part Number | 51198685-100 |
| Manufacturer | Honeywell |
| Product Type | Power Supply Module |
| System Platform | Honeywell FSC Safety Controller |
| Output Voltage | 24 VDC nominal |
| Output Current | 20 A |
| Input Voltage | 100-240 VAC range (application dependent) |
| Frequency | 47-63 Hz |
| Redundancy Support | Supported in compatible FSC configurations |
| Mounting | Rack/cabinet installation |
| Protection | Overload and short-circuit protection |
| Application | Safety controller power distribution |
| Typical Loads | FSC processors, I/O modules, communication hardware |
Application Scenarios & Pain Points
A safety system power failure is rarely treated as a simple hardware replacement. The bigger concern is maintaining the validated safety architecture and avoiding unexpected trips during operation.
Typical applications:
- Oil & Gas Facilities: Used in FSC safety cabinets supporting emergency shutdown systems, burner management, and process protection functions.
- Chemical Plants: Provides DC power for safety controllers handling critical shutdown and interlock applications.
- Power Generation: Applied in protection systems where controller availability affects turbine and plant safety functions.
- Industrial Manufacturing: Supports dedicated safety automation cabinets requiring stable power for monitoring and shutdown logic.
Field note: A processing facility experienced intermittent FSC controller alarms during routine operation. Initial troubleshooting focused on communication hardware, but voltage checks showed the power supply output was unstable under load. Replacing the SPS5710-2-LF and validating the cabinet power arrangement restored normal operation.

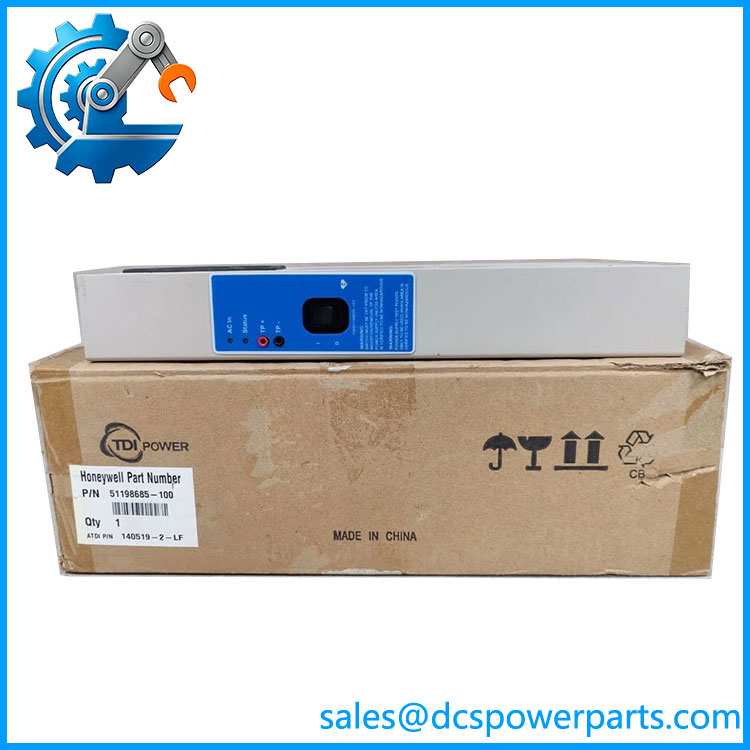

SPS5710-2-LF 51198685-100
Related Products
- Honeywell SPS5710-1-LF — Related FSC power supply variant used in systems requiring different output or configuration requirements. Confirm exact cabinet design before substitution.
- Honeywell 51198685-100 — Alternate ordering reference for the SPS5710-2-LF power supply module.
- Honeywell FSC Processor Modules — Main safety controller processing units powered by FSC power supply assemblies.
- Honeywell FSC I/O Modules — Safety input and output modules that rely on stable cabinet DC power.
- Honeywell FC-SAI-1620M — Safety analog input module used in compatible Honeywell safety system architectures.
- Honeywell FC-SDI-1624 — Safety digital input module for discrete field monitoring applications.
- Honeywell FC-SDO-0824 — Safety digital output module for shutdown and actuator control functions.
- Honeywell Experion PKS Series C Power Components — Related Honeywell control system power hardware used in process automation environments.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Redundancy Configuration Mismatch
Replacing one power module in a redundant FSC arrangement without checking the companion unit can leave the system exposed.
How to avoid: Record both supply module conditions, output measurements, and redundancy status before maintenance.
⚠️ Incorrect Voltage or Load Verification
A physically compatible module may still be unsuitable if the cabinet load exceeds its designed capacity.
How to avoid: Confirm connected FSC processor, I/O modules, and measured current demand.
⚠️ Backplane Contact and Connector Issues
Power problems are sometimes caused by cabinet connections rather than the supply electronics.
How to avoid: Inspect rack contacts for oxidation, contamination, and mechanical wear before startup.
Frequently Asked Questions (FAQ)
Can the Honeywell SPS5710-2-LF 51198685-100 replace an existing FSC power supply?
Yes, when the existing FSC cabinet configuration, electrical requirements, and redundancy design match. Always verify the complete part number before replacement.
What is the main function of the SPS5710-2-LF?
The module converts incoming AC power into regulated DC power used by Honeywell FSC safety controller components.
Does replacing this power module require a safety application download?
Normally no. The module does not contain safety logic. After replacement, engineers should verify power status, diagnostics, and controller health.
Why does the FSC controller still show faults after installing a new power supply?
Possible causes include:
- Incorrect redundancy configuration
- Loose backplane connection
- External power quality problems
- Faulty companion supply module
- Cabinet wiring issues
What should buyers confirm before ordering SPS5710-2-LF?
Recommended checks:
- Full part number: 51198685-100
- Existing FSC hardware configuration
- Input power requirements
- Output load demand
- Redundant supply arrangement
- Current system alarms
Is a refurbished suitable for safety applications?
A tested refurbished unit may be suitable when it has passed output voltage testing, load verification, fault checks, and inspection of connectors and housing.
How should the be stored before installation?
Store the module in anti-static packaging inside a clean, dry cabinet. Avoid moisture, dust, and corrosive environments that may affect electrical contacts over time.
