Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 05701-A-0512 |
| Manufacturer | Honeywell Analytics / Sieger |
| Product Type | Rear Access Subrack Assembly |
| System Platform | Honeywell System 57 |
| Rack Size | Half 19-inch width, 3U height |
| Card Capacity | 8-way card rack |
| Wiring Access | Rear field wiring |
| Installation | Control cabinet rack mounting |
| Backplane Function | Card interconnection and power distribution |
| Compatible Cards | System 57 gas detection control cards |
| Main Application | Gas detection and alarm monitoring systems |
| Rack Architecture | Control card chamber and field interface section |
Application Scenarios & Pain Points
Gas detection systems often remain in service for many years, and the rack assembly becomes the physical foundation supporting every detection channel. A single poor connection point can create nuisance alarms or hide a real detector fault.
Typical applications:
- Oil & Gas Facilities: Used in fixed gas monitoring systems protecting process areas, compressor stations, and hazardous zones.
- Chemical Plants: Supports System 57 detector cards monitoring combustible and toxic gas conditions.
- Power Generation: Applied in auxiliary buildings, fuel handling areas, and equipment rooms requiring continuous gas surveillance.
- Industrial Manufacturing: Used where multiple detector loops require centralized alarm processing.
Field note: A chemical facility experienced intermittent detector channel dropouts during routine operation. The detector heads and control cards tested correctly, but inspection found aging rack connections. Replacing the 05701-A-0512 subrack and checking card seating restored stable channel communication.

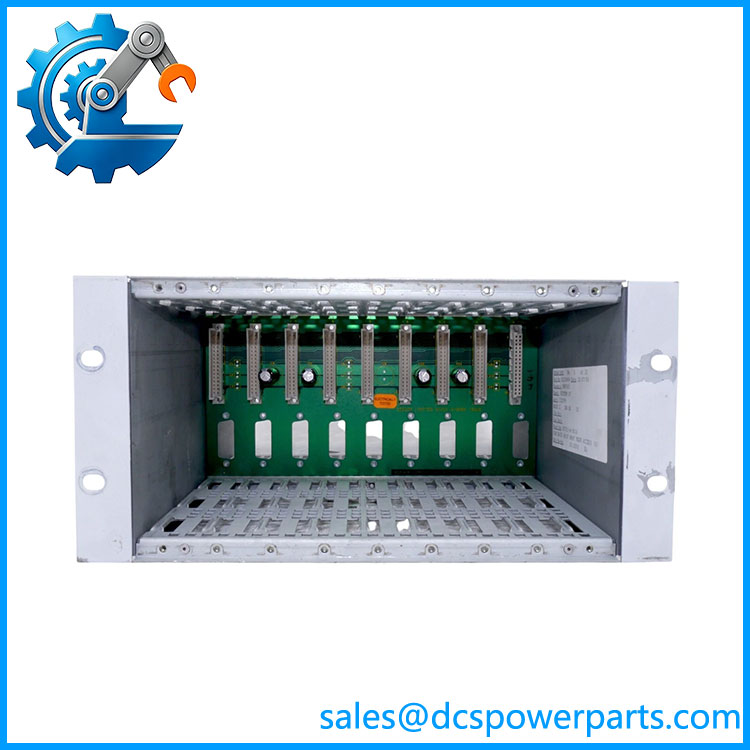

05701-A-0512
Related Products
- Honeywell 05701-A-0511 — Full 19-inch, 3U rear-access System 57 rack. Used for larger installations requiring more card capacity.
- Honeywell 05701-A-0502 — Half 19-inch, 6U front-access rack version. Selected when front wiring access is preferred.
- Honeywell 05701-A-0501 — Full 19-inch, 6U front-access rack for larger System 57 configurations.
- Honeywell 05701-A-0516 — System 57 8-way subrack assembly associated with rear-access rack configurations.
- Honeywell 05701-A-0361 — Engineering Card installed within System 57 rack assemblies for system management and maintenance functions.
- Honeywell 05701-A-0325 — DC Input Card providing rack power input and distribution functions.
- Honeywell 05701-A-0351 — System 57 control card family used for detector channel processing.
- Honeywell 05701-A-0440 — AC-to-DC power supply module used with System 57 rack power arrangements.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Mixing Front Access and Rear Access Rack Versions
System 57 racks may look similar while having different wiring access designs.
How to avoid: Verify whether existing field wiring enters from the rear or front before ordering.
⚠️ Incorrect Card Capacity Planning
Replacing a rack without checking installed cards can create space or wiring limitations.
How to avoid: Record every installed control card, interface card, and power module before removal.
⚠️ Backplane Contact Problems After Installation
A replacement rack can fail if cards are not seated correctly.
How to avoid: Inspect card guides, connectors, and backplane pins for contamination or oxidation before powering the system.
Frequently Asked Questions (FAQ)
What is the main function of the Honeywell 05701-A-0512?
The 05701-A-0512 is an 8-way rear-access subrack used in Honeywell System 57 gas detection systems to mount control cards and provide internal connections.
Is the 05701-A-0512 a gas detector module?
No. It is a rack assembly. Detector processing is performed by installed System 57 control cards mounted inside the rack.
How many modules can the 05701-A-0512 hold?
The rack supports up to eight System 57 card positions.
Can the 05701-A-0512 replace a 05701-A-0502?
Not directly. The two models have different physical configurations and wiring access methods. The replacement must match the existing cabinet design.
What should be checked before purchasing this rack?
Recommended checks:
- Existing System 57 rack model
- Front or rear wiring configuration
- Number of installed cards
- Power supply arrangement
- Backplane condition
- Cabinet mounting dimensions
Why would a rack assembly need replacement?
Common reasons include:
- Damaged card connectors
- Backplane faults
- Mechanical damage
- Corrosion or contamination
- Long-term wear from repeated card replacement
Is a refurbished 05701-A-0512 suitable for a gas detection system?
A tested refurbished rack can be suitable when it passes mechanical inspection, connector checks, backplane continuity testing, and compatibility verification with the installed System 57 hardware.
