Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | HIMA |
| Model | EABT3 B9302 |
| Order Number | 997009302 |
| Product Type | Safety I/O Subrack |
| System Platform | HIQuad / EABT3 Safety System |
| Rack Format | 19-inch rack, 4U height |
| Module Slots | 16 I/O module slots |
| Coupling Slot | 1 communication/coupling slot |
| Power Slots | 4 power supply positions |
| Supply Voltage | 24 VDC |
| Safety Level | SIL 3 capable (IEC 61508) |
| Protection Rating | IP20 (cabinet installation) |
| Mounting | Standard 19-inch control cabinet |
| Backplane Function | Module bus communication and power distribution |
| Operating Temperature | 0°C to +60°C typical |
| Storage Temperature | -40°C to +85°C typical |
| Application | Safety instrumented systems |
Product Introduction

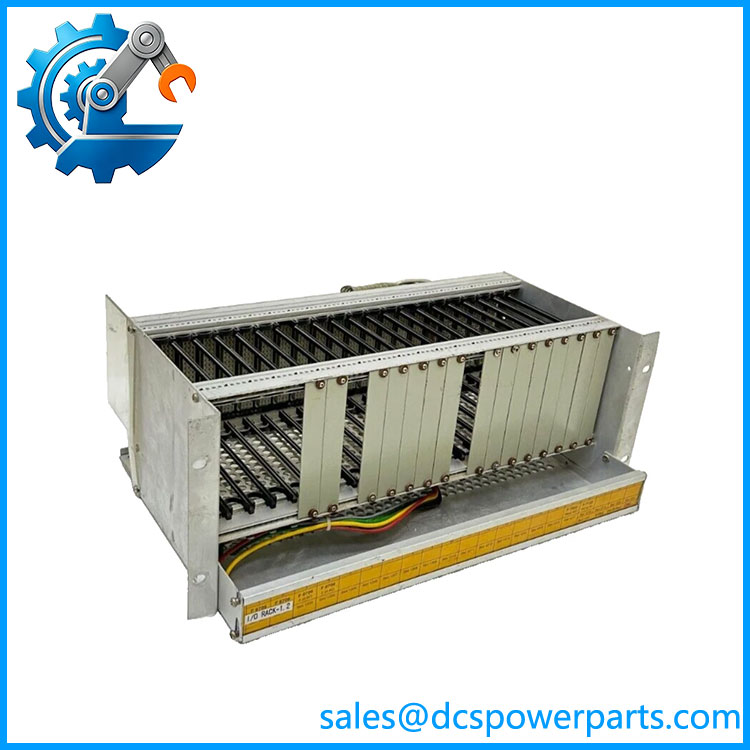

HIMA EABT3 B9302 997009302 Overview
The HIMA EABT3 B9302 997009302 is a modular safety system subrack designed for HIMA HIQuad and EABT3 safety platforms. It provides the physical and electrical foundation required for installing multiple safety-related I/O modules, power modules, and communication components inside a control cabinet.
The HIMA EABT3 B9302 997009302 integrates a backplane structure that distributes system power and provides internal communication paths between installed modules. In a typical safety architecture, the subrack itself does not execute application logic; instead, it supports the installed HIMA processor, I/O, and communication modules that perform safety monitoring and control functions.
The HIMA B9302 997009302 is commonly used in safety instrumented systems where modular expansion, diagnostics, and long service life are required. Typical installations include emergency shutdown systems, turbine protection systems, burner management systems, and process safety applications.
The rack design allows maintenance engineers to replace or expand individual modules without redesigning the complete safety cabinet structure. However, because the subrack is part of a certified safety architecture, replacement requires careful verification of module compatibility, slot allocation, power distribution, and existing safety project configuration.
Before replacing a HIMA B9302 997009302, engineers should confirm the installed controller family, connected modules, rack wiring, power supply arrangement, and safety application documentation. Mechanical compatibility alone does not guarantee correct system operation.
EABT3 B9302 997009302
Application Scenarios & Field Considerations
Engineering Pain Point
A safety controller cabinet experiences communication faults, missing I/O modules, rack diagnostic alarms, or intermittent module availability. The subrack may appear to be the cause, but issues can also originate from power distribution, backplane connections, or individual modules.
Recommended troubleshooting steps:
- Check rack power supply status
- Verify module seating condition
- Inspect backplane connectors
- Review HIMA diagnostic messages
- Confirm rack slot configuration
- Check grounding and cabinet wiring
The HIMA 997009302 provides the hardware platform, while the installed safety modules and configuration determine final system behavior.
Typical Applications
Emergency Shutdown Systems (ESD)
Used for:
- Process trip systems
- Valve shutdown control
- Hazard protection logic
- Safety interlocks
Oil and Gas Facilities
Applied in:
- Offshore platforms
- Refinery protection systems
- Compressor safety systems
Power Generation
Used for:
- Turbine protection
- Boiler safety systems
- Generator auxiliary protection
Chemical Processing
Applied for:
- Reactor protection
- Critical process monitoring
- Fire and gas systems
Technical Pitfalls to Avoid
1. Verify Rack Configuration
Before replacement, confirm:
- Number of installed modules
- Slot assignments
- Coupling module position
- Power module arrangement
Incorrect slot configuration may prevent the safety system from starting correctly.
2. Check Backplane Condition
Inspect:
- Connector wear
- Contamination
- Mechanical damage
- Loose mounting hardware
Backplane issues can create intermittent faults that resemble module failures.
3. Verify Safety Project Compatibility
Review:
- Controller type
- Firmware revision
- Engineering database
- Module configuration
Safety systems require matching hardware and software definitions.
4. Confirm Power Distribution
Check:
- 24 VDC supply quality
- Redundant supply wiring
- Fuse protection
- Ground connections
Power issues can affect multiple modules simultaneously.
