HIMA 984621702 | F6217 Replacement Analog Input

Description

Key Technical Specifications

The strongest matching technical records consistently identify F6217 / 984621702 as an 8-channel safety-related analog input module, rather than the conflicting digital-output descriptions found on some secondary listings. The 0/4–20 mA, 0–5/10 V, 12-bit, and SIL 3 specifications are supported by multiple independent product references.

That distinction is worth calling out. Some online records incorrectly describe F6217 as a digital input, digital output, CPU, or power module. Those descriptions conflict with the more consistent F6217/984621702 technical records identifying it as an 8-channel safety analog input. For procurement, the physical nameplate and original HIMA documentation should take precedence over generic database text.

Application Scenarios & Pain Points

A bad analog value in a safety loop is not merely an instrumentation nuisance. If the signal participates in an SIF, the quality and diagnostic behavior of the input path can affect the entire protection function.

• Process safety: F6217 can acquire pressure, temperature, flow, and level transmitter signals used by safety logic.
• Oil and gas: Suitable for safety-related analog measurements associated with shutdown and process-protection functions.
• Chemical processing: 4–20 mA transmitter loops can be monitored where abnormal process values must reach the safety controller.
• Power generation: Useful for safety monitoring of process variables where the analog measurement forms part of a certified protection strategy.

Field note: Before replacing an F6217, check the transmitter loop current at the terminal—not just the value shown in the engineering workstation. A 4–20 mA loop with a marginal field power supply can make a perfectly good input card look defective.

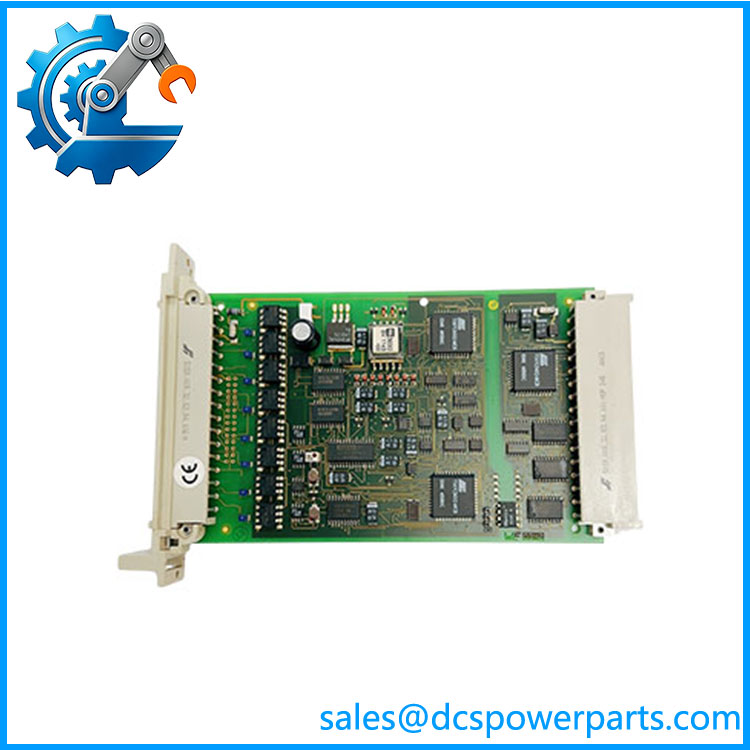

F6217

Related Products

• HIMA / 984621702 — The subject 8-channel safety-related analog input module. Intended for voltage and current measurement within the applicable HIMA safety architecture.
• HIMA F6216 — Related HIMA safety I/O hardware from the same general generation; functional compatibility must be confirmed from the system configuration before substitution.
• HIMA F6218 — Related F-series safety I/O designation. Do not assume channel type or electrical characteristics from the sequential model number.
• HIMA F3236 — HIMA safety I/O hardware commonly encountered in older safety-system installations; its I/O function differs from and should not be treated as a direct replacement.
• HIMA F3330 — Related safety I/O module used in HIMA architectures. It provides a different signal function, so it is complementary rather than interchangeable.
• HIMA F7553 — I/O bus communication hardware for HIMA safety-system architectures. It serves communication/system infrastructure rather than analog signal acquisition.
• HIMA F8652X — HIMA controller hardware used in safety-system architectures. It belongs on the controller side of the system rather than replacing an input module.
• HIMA F8650X — Related safety controller hardware. Appropriate only when the requirement concerns the logic-solving/controller layer rather than field analog acquisition.

Compatibility note: should be matched by 984621702, system family, hardware revision, terminal arrangement, and configured safety application. Similar-looking HIMA F-series modules are not automatically interchangeable.

The Engineer’s Guide: Field Pitfalls to Avoid

WARNING 1 — Do not confuse with another F-series I/O module.

Several secondary databases incorrectly classify 984621702 as digital I/O or even a processor. The stronger matching evidence identifies it as an 8-channel safety analog input.

How to avoid it: Verify the physical label / 984621702 and compare the channel wiring against the system drawings before installation.

WARNING 2 — Check the transmitter signal range before connecting the loop.

The module supports current and voltage input configurations, including 0/4–20 mA and 0–5/10 V.

How to avoid it: Confirm each channel’s engineering configuration, transmitter output, scaling, and termination. Do not assume every channel is configured identically.

WARNING 3 — A SIL-rated module does not make the entire loop SIL 3.

The has safety-related/SIL 3 capability, but the complete safety function depends on the transmitter, wiring, logic solver, application configuration, proof-test interval, diagnostics, and final element.

How to avoid it: Evaluate the complete SIF. Do not use the module’s SIL capability alone as evidence that the installed safety loop meets its target SIL.

Frequently Asked Questions (FAQ)

What is HIMA 984621702 used for?

It is an 8-channel safety-related analog input module used to acquire voltage and current signals for HIMA safety-system applications. Published specifications identify 0/4–20 mA and 0–5/10 V inputs with 12-bit resolution.

Typical signals include pressure, temperature, flow, and level transmitter outputs.

Is a digital input or analog input module?

/ 984621702 should be treated as an analog input module.

Some secondary listings incorrectly call it a digital input, digital output, CPU, or power module. Those descriptions conflict with multiple matching records that identify the part as an 8-channel safety-related analog input with 0/4–20 mA and 0–5/10 V capability.

For a safety replacement, verify the physical module label and system documentation.

What input signals does HIMA support?

The documented inputs include:

• 0–20 mA
• 4–20 mA
• 0–5 V
• 0–10 V

The technical data also identifies a 0–5.5 V input range and 0–22 mA current range through the associated input circuitry.

Is HIMA SIL 3 certified?

The available technical references identify as a safety-related module applicable up to SIL 3 according to IEC 61508.

That does not mean an installed SIF automatically achieves SIL 3. The complete safety loop must be assessed.

Can I replace an with another HIMA analog input module?

Not without checking the complete system configuration.

Compare:

1. HIMA order number.
2. Hardware revision.
3. Safety-system family.
4. Input signal range.
5. Channel architecture.
6. Terminal arrangement.
7. Application configuration.
8. Safety certification requirements.

For a safety system, “same number of channels” is not an adequate replacement criterion.

How should a refurbished be tested before installation?

For a critical spare, I would request documented testing of:

• Exact / 984621702 identification
• Power-up and internal diagnostics
• All 8 analog channels
• 4–20 mA input simulation
• 0–10 V input simulation
• Channel isolation/diagnostic behavior
• Communication/backplane operation
• Hardware revision
• Environmental/thermal test
• Physical connector condition

A seller stating that the module “powers on” has not demonstrated that the analog channels or safety diagnostics actually work.

What should I verify when purchasing 984621702?

Request a photograph of the actual nameplate, including the complete 984621702 order code and hardware revision. For a refurbished unit, ask for a test report showing channel-by-channel analog measurements.

For a safety application, also verify the module’s certification/documentation status and ensure the replacement’s configuration is appropriate for the existing safety application.
