Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | HIMA Paul Hildebrandt GmbH |
| Model | H4135 |
| Order Number | 992413502 |
| Product Family | HIMA H41xx safety-control hardware |
| Supply Voltage | 24 VDC |
| Primary Application | Safety Instrumented System / Emergency Shutdown |
| Functional Role | Safety logic, signal processing, and/or safety interface depending on system configuration |
| Installation | Industrial control cabinet |
| Safety Context | Functional-safety applications |
| Protection Class | IP20 is reported by multiple listings |
| Operating Temperature | Reported values vary by source; verify against the applicable HIMA documentation |
| Exact I/O Configuration | Requires revision/system verification |
One source claims 16 digital inputs, while another claims a much broader integrated I/O configuration. These discrepancies are too significant to present either figure as confirmed engineering data.
Application Scenarios & Pain Points
Safety-system hardware is unforgiving of catalog errors. A controller that physically fits the cabinet but belongs to another hardware revision can leave engineers with a powered-up unit that will not communicate, will not pass diagnostics, or cannot be accepted back into the safety loop.

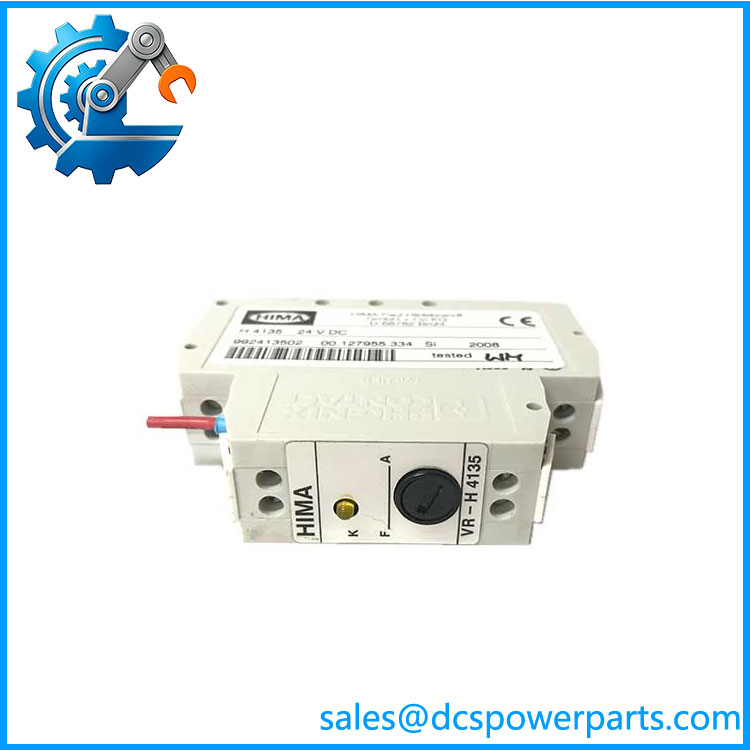

H4135
Typical Applications
- Emergency Shutdown Systems: H4135 hardware is associated with safety circuits that execute shutdown and interlock functions in process plants.
- Oil & Gas: Applicable to safety-related control infrastructure surrounding compressors, pumps, process isolation, and emergency shutdown functions.
- Power Generation: Legacy HIMA safety hardware may be found in turbine protection, boiler protection, and other plant safety applications.
- Process Industry: Suitable for safety-control installations where deterministic logic and diagnostic monitoring are required.
Field Case:
A maintenance team replacing an obsolete HIMA controller should first document the existing rack, terminal wiring, LEDs, and order-number label. That simple record becomes valuable when the replacement arrives, particularly if the available spare has a different revision suffix or physical connector arrangement.
Related Products
- HIMA H4135A 992413560 — Related H4135 variant reported in available references. The different order number means it should be treated as a separate hardware configuration rather than an automatic replacement.
- HIMA H41q Series — Older HIMA safety-controller family associated with process safety applications. Relevant when maintaining legacy HIMA installations and evaluating system compatibility.
- HIMA H51q Series — Larger/related HIMA safety-control platform. More appropriate for applications requiring a different controller architecture or system capacity.
- HIMA HIMatrix Series — Compact HIMA safety-control platform used for smaller SIS, ESD, and machine-safety applications. It should not be assumed to be electrically interchangeable with H4135.
- HIMA Safety I/O Modules — Complementary input/output hardware used to connect field sensors and final elements to the safety controller.
- HIMA Communication Modules — Used where the safety system requires communication with supervisory or plant-control systems. These perform a different function from the H4135 control hardware.
- HIMA Power Supply Modules — Provide the DC power infrastructure required by the safety system. They are complementary components rather than replacements for H4135.
